Description
Model: CS62T
ATEN 2- Port USB KVM Switch with File Transfer

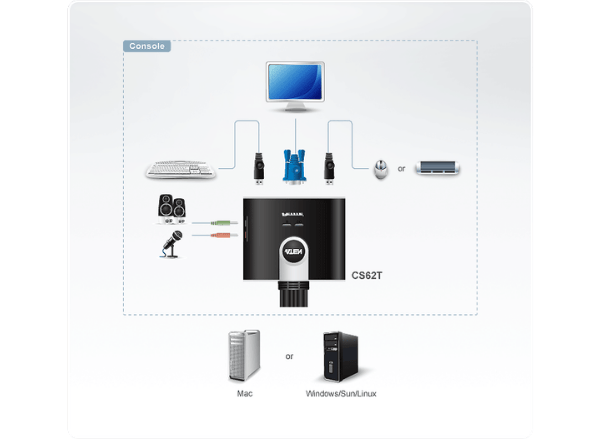

- One USB console controls two USB interface computers
- USB File Management -transfer files between connected Windows based computers – sync files, folders
- USB mouse port can be used for USB hub and USB peripheral sharing
- Computer selection via hotkeys and mouse
Overview
The CS62T improves on prior models in the Cable KVM series, by combing a 2-port KVM switch enabling it to provide USB peripheral sharing and USB file sharing between the connected computers β ideal for syncing files, folders between portable and desktop computers.
Featuring an unbeatable combination of USB peripheral sharing, USB file management, audio support for multimedia and user-friendly operation, the CS62T offers the utmost in desktop KVM switching functionality.
Features
- One USB console controls two USB interface computers
- USB File Management -transfer files between connected Windows-based computers – sync files, folders
- USB mouse port can be used for USB hub and USB peripheral sharing
- Computer selection via hotkeys and mouse*
- Hotkey selection for OS and keyboard language
- Audio-enabled – full bass response for 2.1 surround sound
- Multiplatform support – Windows, Linux, Mac, and Sun
- Compact design, built-in all-in-one cables (2 x 0.9 m)
- Video DynaSyncβ’ – exclusive ATEN technology which eliminates boot-up display problems and optimizes resolution when switching between ports
- Power on detection – automatically switches to the fi rst powered on computer
- Superior video quality – up to 2048 x 1536; DDC2B
- Supports gaming and multimedia keyboards
- Supports multifunction and wireless keyboards and mice
- Mac/Sun keyboard support and emulation**
- Auto Scan function to monitor computer operation
- Non-powered
Specifications
| Computer Connections | 2 |
| Port Selection | Hotkey, Mouse |
| Connectors | |
| Console Ports | 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) |
| KVM Ports | 2 x USB Type A Male (Purple) 2 x HDB-15 Male (Blue) 2 x Mini Stereo Jack Female (Green) 2 x Mini Stereo Jack Female (Pink) |
| File Transfer | 2 x USB Type A Male (Black) |
| Cable Length | |
| Computer | 2 x 0.9 m |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | 2048 x 1536; DDC2B |
| Scan Interval | 3, 5, 10, 20 secs. (default 5 secs.) |
| Environmental | |
| Operating Temperature | 0 – 50Β°C |
| Storage Temperature | -20 – 60Β°C |
| Humidity | 0-80% RH Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.42 kg |
| Dimensions (L x W x H) | 8.24×6.99×2.52cm |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
