Description

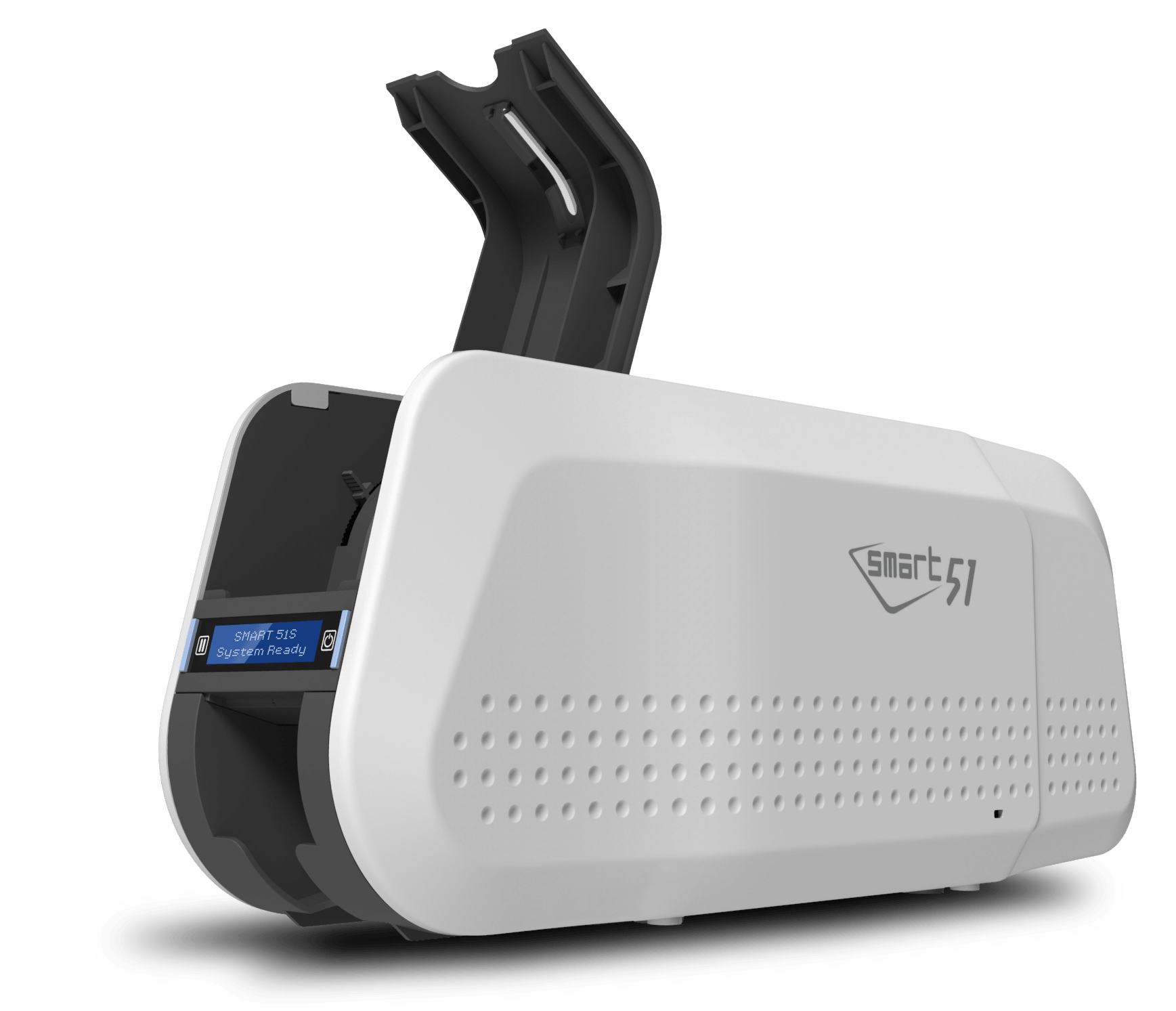

Model: SMART-51D
Dual-Sided Thermal ID Card Printer
High-Quality Dual-Sided Color ID Card Printer
*with real-time status LCD display
Specifications Overview
- Color & Mono Single & Dual Sided Printing
- Print Speed: Max. 22 sec/card (YMCKOK)
- 300DPI
- Edge-to-Edge Printing
- 2 Lines LCD with LED Buttons for Front Operation
- Support of Transparent Cards
- Low-Cost Security with UV Printing
- Installable Encoders: MS, Contact & Contactless
- Upgradable Modules: Flipper, Laminator, Ethernet, WiFi
Typical Applications
- Identification Cards
- Membership / Loyalty Cards
- Staff / Employee Pass
- Visitor Badges
- University / Student Pass
- Conference Cards
- Bank Cards: Personalisation of Credit / Debit Cards
Options & Upgrades
The standard SMART printer can be upgraded to any option you desire.
- Magnetic Stripe Encoder
- Contactless Encoder
- IC Contact Encoder
- Ethernet
- WiFi
SMART ID
SMART ID card designing software is bundled with the purchase of SMART printers.
SMART-51D Specifications
Printing
- Print Mode: Dual Sided
- Print Type: Direct Dye-Sublimation
- Print Area: Edge to Edge
- Resolution: 300 dpi (Color & Mono); 600dpi & 1200dpi (Mono only)
- Dual Sided Printing: Yes
Card
- Card Feeding: Automatic
- Card Size: ISO CR80 or ISO CR79 (Option-Factory installed)
- Card Thickness: 0.38mm (15mil) ~ 1.0mm (40mil)
- Card Type: PVC, PET, Composite PVC
Print Speed
- Monochrome: 5 sec/card (720 cards/hour)
- YMCKO: Max. 17 sec/card (212 cards/hour)
- YMCKOK: Max. 22 sec/card (164 cards/hour)
Capacity
- Input Card Hopper: 100 Cards / 200 Cards with cover open
- Output Card Hopper: Front : 40 Cards / Rear : 100 Cards (Optional Rear-side Stacker)
System
- Memory: 64MB RAM
- Interface: 2 Line LCD / 2 LED Buttons
- Supported Platforms: Microsoft Windows 7/8/10, Mac OS, Linux
- Communication: USB, Ethernet (Option), WiFi (Option)
- Power Supply: Free Voltage (AC100/220V, 50~60Hz)
- Power Consumption: 48W
- Temperature: 15~35β
- Humidity: 35~70%
Dimensions
- Physical Lock: Input Hopper & Ribbon (Option)
- Station Itself: Kensington Lock (Option)
Dimensions
- Millimeter: 165 (W) x 498 (L) x 210 (H)
- Inch: 6.5 (W) x 19.6 (L) x 8.3 (H)
Weight
Kg / Lbs: 5.2 / 11.5
Encoding Option
- Magnetic: ISO 7811 (Track I, II, III Read/Write, HiCo/LoCo), JIS II
- Contact: ISO 7816 A/B/C Card, ISO 7816 1/2/3/4 Microprocessor Card
- Contactless: ISO 14443 (Type A/B), MIFARE, DESFIRE, iCLASS, ISO 18092(NFC), Felica
Encoding Option
Certifications: CB, CE, FCC, KC, CCC
