Description
βββModel: TL-SG1016D

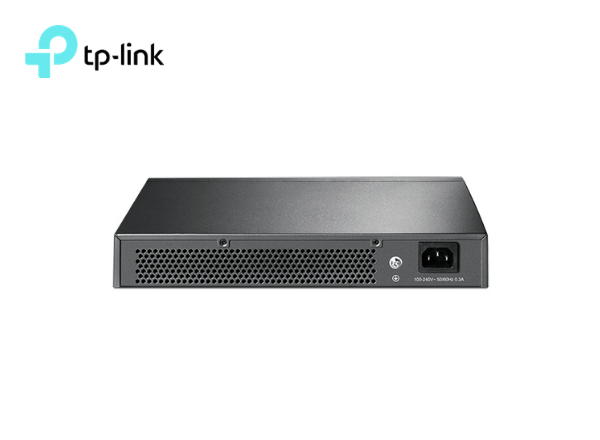

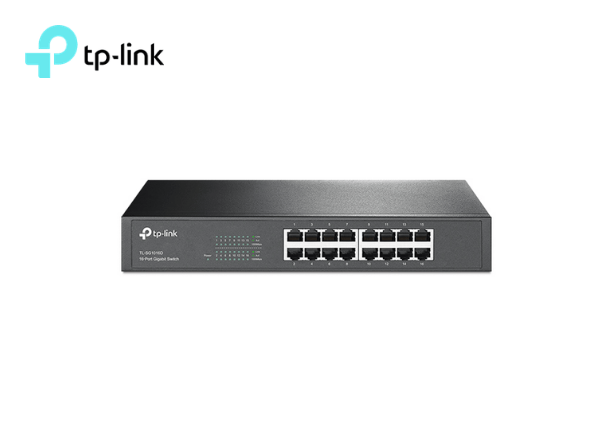

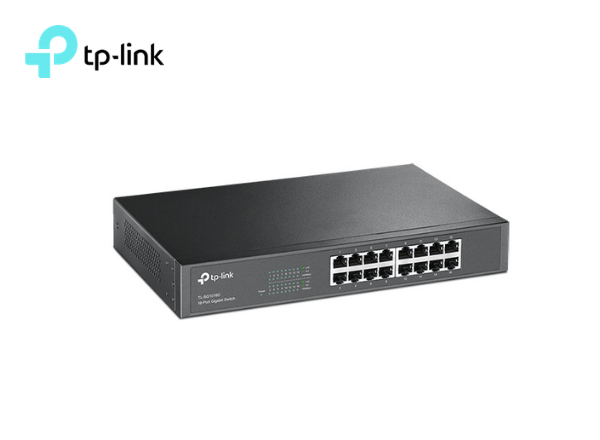

TP-Link 16-Port Gigabit Desktop/Rackmount Switch
Overview
- 16 10/100/1000Mbps ports
- Innovative energy-efficient technology saves power consumption
- Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
- Plug & play design
Specifications
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
| Interface | 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | No |
| Power Supply | 100-240VAC, 50/60Hz |
| Power Consumption | Maximum: 9.26W (220V/50Hz) |
| Dimensions ( W x D x H ) | 11.6*7.1*1.7 in. (294*180*44 mm) |
| Max Power Consumption | 9.95W(220V/50Hz) |
| Max Heat Dissipation | 33.93BTU/h |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 32Gbps |
| Packet Forwarding Rate | 23.8Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10KB |
| Green Technology | Yes |
| Transfer Method | Store-and-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, RoHs |
| Package Contents | 16-Port Gigabit Desktop/Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet |
| Environment | Operating Temperature: 0β~40β (32β~104β); Storage Temperature: -40β~70β (-40β~158β); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
