Description

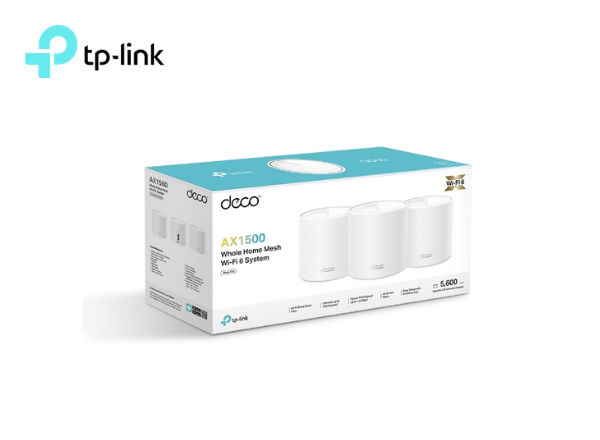

Model: Deco X10(3-pack)
TP-Link AX1500 Whole Home Mesh Wi-Fi 6 System
Overview
- Faster Connections: Wi-Fi 6 speeds up to 1,500 Mbps—1,201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.
- Connect More Devices: OFDMA and MU-MIMO technology quadruple capacity to enable simultaneous transmission to more devices.
- Boosted Seamless Coverage: Achieve seamless whole home coverage with a clearer and stronger whole home Wi-Fi signal generated by Wi-Fi 6.
- Ultra-Low Latency: Greater reduction in latency enables more responsive gaming and video chatting.
- One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home.
- Robust Parental Controls – Limit online time and block inappropriate websites according to unique profiles you create for each family member.
- Setup Made Easier Than Ever: The Deco app walks you through setup step-by-step.
Specifications
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | AX1500 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range | 1-2 Bedroom Houses (1-pack) 2-4 Bedroom Houses (2-pack) 3-5 Bedroom Houses (3-pack) TP-Link Mesh Technology 2× Antennas (Internal) Beamforming |
| WiFi Capacity | High
Dual-Band 2×2 MU-MIMO OFDMA 4 Streams |
| Working Modes | Router Mode Access Point Mode |
| SECURITY | |
|---|---|
| Network Security | SPI Firewall Access Control |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| WiFi Encryption | WPA-Personal WPA2-Personal WPA3-Personal |
| HARDWARE | |
|---|---|
| Ethernet Ports | 2× Gigabit Ports
*Per Deco Unit |
| Buttons | Reset Button |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Parental Controls | Parental Controls
Custom Profiles |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link |
| Management | Deco App |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE: <20 dBm (2.4 GHz) <30 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 4.33 × 4.33 × 4.49 in (110 × 110 × 114 mm) |
| Package Contents | Deco X10 (3-pack) 3 Deco X10 Units 1 RJ45 Ethernet Cable 3 Power Adapters Quick Installation GuideDeco X10 (2-pack) 2 Deco X10 Units 1 RJ45 Ethernet Cable 2 Power Adapters Quick Installation Guide Deco X10 (1-pack) |
| OTHERS | |
|---|---|
| System Requirements | Android 5.0 or later iOS 9.0 or later *Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information. |
| Certifications | CE, FCC, RoHS, JPA, JRF, VCCI, NCC, BSMI |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~60℃ (-40℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
