Description
Model: EAP615-Wall

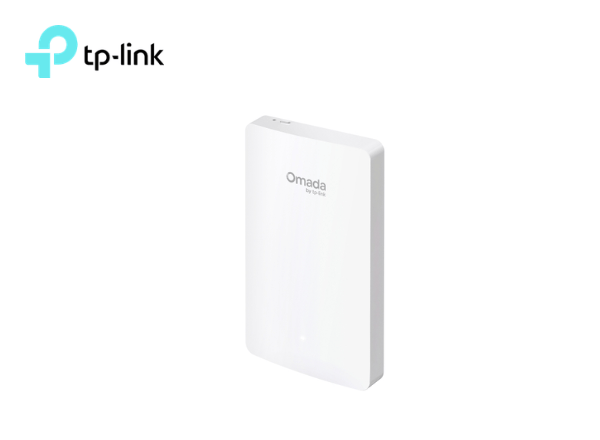

TPTP-Link EAP615-Wall AX1800 Wall-Plate Dual-Band Wi-Fi 6 Access Point
Overview
- Dual-Band Wi-Fi 6: 1,201 Mbps on 5 GHz, and 574 Mbps on 2.4 GHz†
- Gigabit Ports with PoE Flexibility: 1× PoE Input port, 1× PoE pass-through port, and 2× RJ45 downlink ports.
- Low Latency and Interference: MU-MIMO, OFDMA, and 1024-QAM ensure high performance for your network.‡
- Complete In-Room Wi-Fi Coverage: Guaranteed strong signals and corner-to-corner Wi-Fi coverage up to 600ft² (50 ㎡).*
- Flexible Deployment and Easy Setup: Supports 802.3af/at PoE for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralized cloud management, mesh, and seamless roaming.△
- More Connections: Supports up to 120+ concurrent connections.**
Specifications
| HARDWARE FEATURES | |
|---|---|

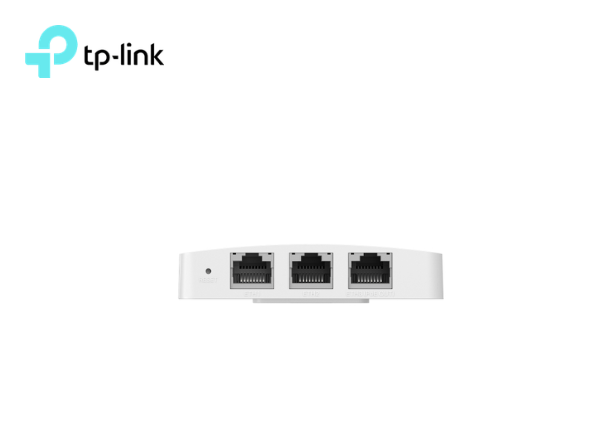

| Interface | • Uplink: 1× Gigabit Ethernet Port • Downlink: 3× Gigabit Ethernet Ports (One port supports PoE pass-through.) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/at PoE |
| PoE Out | Passthrough (Pins 1,2+; 3,6-) The PoE pass-through feature requires 802.3at PoE input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing. |
| Max. Power Consumption | • EU: 10W (802.3at PoE, PoE Out off) • US: 11.5W (802.3at PoE, PoE Out off) |
| Dimensions ( W x D x H ) | 5.6 × 3.4 × 0.8 in (143 × 86 × 19.7 mm) |
| Antenna | Dual-Band Antennas: • 2.4 GHz: 2× 3 dBi • 5 GHz: 2× 4 dBi |
| Mounting | Wall Plate Mounting |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 600 ft² (50㎡)* |
| Concurrent Clients | 120+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Omada Mesh△ • Seamless Roaming(802.11k/v/r)△ • Beamforming • MU-MIMO • Rate Limit • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication△ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: 7-24 dBm (2.4 GHz, EIRP) 7-24 dBm (5 GHz, U-NII-1, U-NII-2A, EIRP) 7-24 dBm(5 GHz, U-NII-2C, EIRP) • FCC: |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • EAP615-Wall • Installation Guide • Mounting Kit |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
