Description
Model: ES206GP

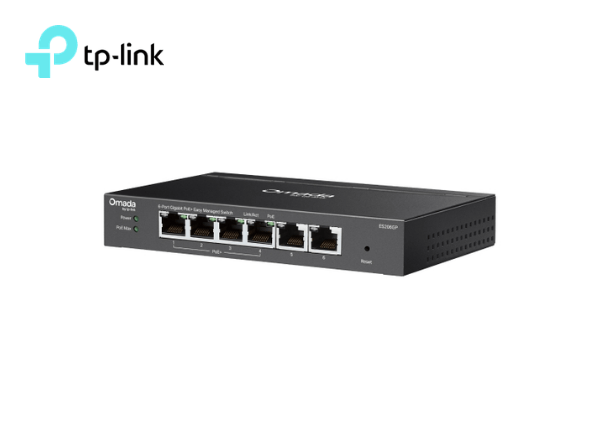

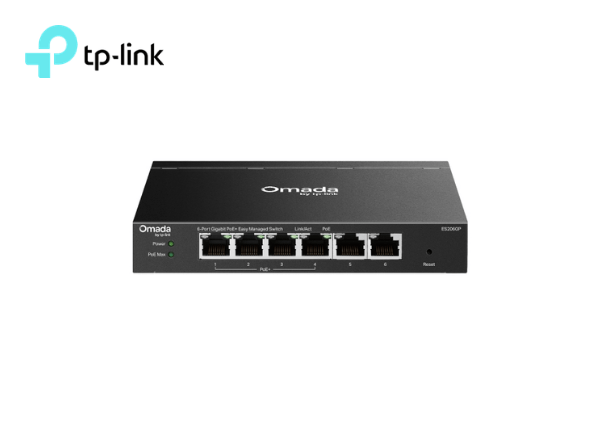

TP-Link Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+
Overview
- 6× 10/100/1000Mbps RJ45 ports (4× 802.3af/at-compliant PoE+)
- 65W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | • 6× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3af PoE and 802.3at PoE+) • Auto-Negotiation/Auto MDI/MDIX |
| Number of fans | Fanless |

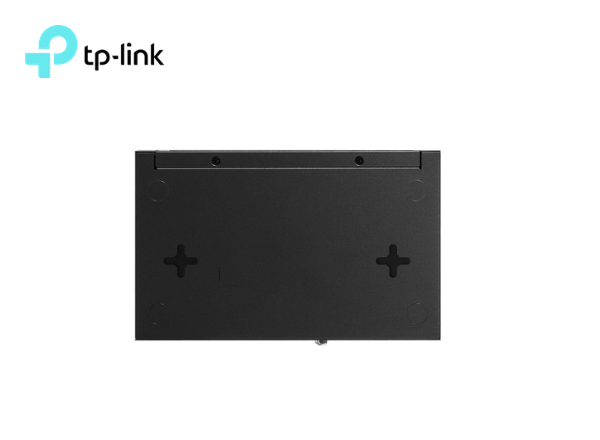

| Installation | • Desktop • Wall Mount |
| Physical lock protection | √ |

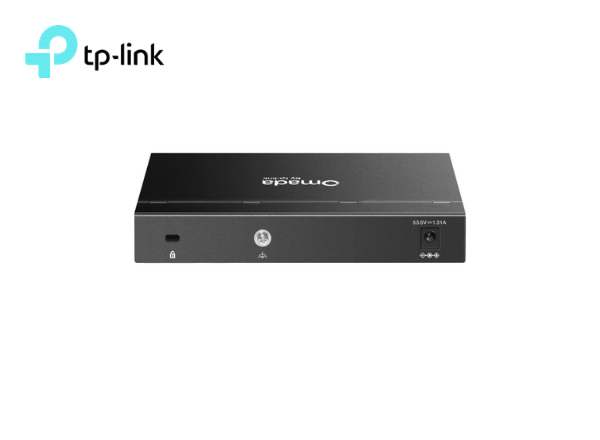

| Power supply | DC Power Adapter (Output: 53.5VDC / 1.31A) |
| PoE ports (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 4 ports • PoE Budget: 65W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery‡ • Up to 250m PoE transmission distance** |
| Dimensions (W x D x H) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| Surge Protection | ±6kV |
| PRODUCTIVITY | |
|---|---|
| Switching capacity | 12 Gbps |
| Data packet transmission speed | 7.4 Mpps |
| MAC address table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo frame | 15 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of service | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode – WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control – Port-Based Rating Limit • Storm Control – Multiple Control Modes (kbps/pps) – Broadcast/Multicast/Unknown-Unicast Control△ |
| L2 characteristics | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control – 802.3x Flow Control • Mirroring – Port Mirroring – One-to-One – Many-to-One – Ingress/Egress/Both • Port Statistics – Port Mirror Status – Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN – Max 32 VLAN Groups – 4K VID |
| Transmission Method | Store-And-Forward |
| Management Features | |
|---|---|
| Own the App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
| OTHERS | |
|---|---|
| Certificates | FCC, CE, RoHS |
| Package contents | • ES206GP • Power Adapter • Power Cord • Rubber Feet • Installation Guide |
| Environment | • Operating Temperature: -5℃~40℃ (23℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
