Description
Model: NC230

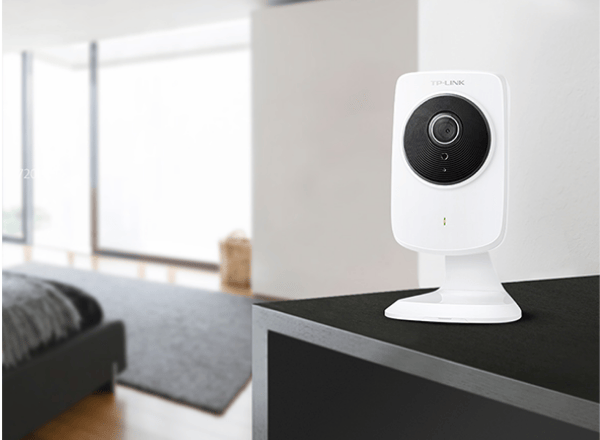

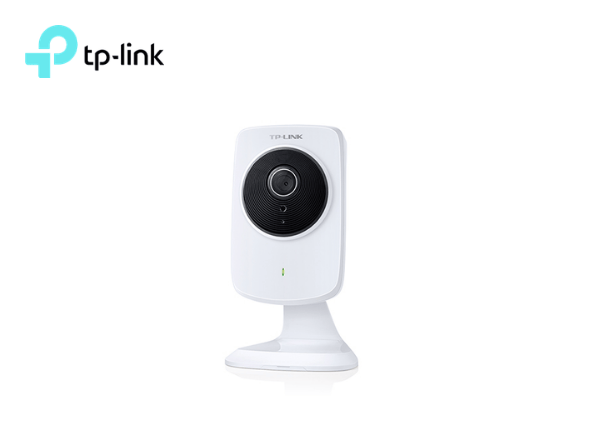

TP-Link HD Day/Night Wi-Fi Cloud Camera
Overview
- 720p HD Imaging – HD resolution provides sharper, clearer images
- Night Vision – Automatic night vision functionality supports 24-hour surveillance
- H.264 Compression – Ensure smooth HD video streaming while consuming less bandwidth
- tpCamera App – Use the tpCamera app to access feeds from anywhere, at any time
- Motion & Sound Detection – Immediate email notifications whenever motion or sound is detected
- Easy Setup – Install and operate the camera in minutes
- 150Mbps Wireless – 150Mbps wireless for stable connectivity and Wi-Fi extension
Specifications
| CAMERA | |
|---|---|
| Image Sensor | 1/4″ progressive scanner CMOS sensor |
| Resolution | 1.0 Megapixels (1280 x 720) |
| Glasses | F: 2.8, f: 3.85 mm |
| Vision angle | FOV = 64Β° |
| Zoom Digital | 4x Digital |
| AUDIO | |
|---|---|
| Audio Communication | 1-Way |
| Audio Input | Integrated Microphone |
| RED | |
|---|---|
| Standards and Protocols | Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP,DNS, UPnP, HTTP y UDP |
| Security | Multiple password protected user levels |
| INTERFACES | |
|---|---|
| Network Interface | Ethernet para RJ45 10/100Mbps Base-T |
| Power connector | DC Power Jack |
| Button | Reset/WPS button |
| ALARM AND EVENT MANAGEMENT | |
|---|---|
| Notification Method | |
| Entry Trigger | Motion/Sound Detection |
| GENERAL | |
|---|---|
| Package content | NC230 Power Adapter Extension Cable RJ-45 Ethernet Cable Quick Installation Guide |
| Certification | RoHS, FCC, CE |
| Environment | Operating Temperature: 0Β°C~40Β°C (32Β°F ~104Β°F) Storage Temperature: -40Β°C ~70Β°C (-40Β°F ~158Β°F) Operating Humidity: 10%~90 % non-condensing Storage Humidity: 5%~90% non-condensing |
| Dimensions | 137 x 76 x 69 mm (5.4 x 3.0 x 2.7 in) |
| Package Dimensions | 128 x 79.5 x 223mm (0 x 3.1 x 8.8 in.) |
| External Power Supply | 9V DC, Max 5.4W |
| WIRELESS | |
|---|---|
| Wireless data rates | IEEE 802.11 b/g/n, Hasta150Mbps |
| Frequency | 2.4-2.4835GHz |
| Wireless transmission power | <20dBm (EIRP) |
| Wireless Encryption | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| VIDEO/IMAGE | |
|---|---|
| Video Compression | H.264 |
| Resolution and Frame Rate | Max. 20 fps at 1280×720 (HD) |
| Video Streaming | Controllable Frame Rate |
| Image Settings | Rotation: Mirror, Flip Configurable Brightness, Contrast and Saturation Extra Capabilities: Time, Date and Text |
| SURVEILLANCE MANAGEMENT | |
|---|---|
| Management Software Included | View and Record on up to 36 cameras |
| MINIMUM SYSTEM REQUIREMENTS | |
|---|---|
| Smartphone OS | iOS 9.0 or higher Android 4.4 or higher |
| Compatible Browser | Mozilla Firefox 4.0 o superior Opera 12 o superior Safari 5.0 o superior IE 8.0 o superior Chrome 5.0 o superior |
| SO Compatible | Smartphone OS -Android 3.0 or higher, iOS 7.0 or higher |
