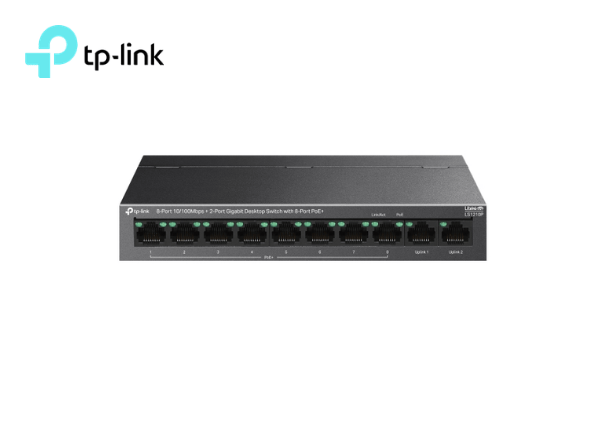

TP-Link LS1210P 8-Port 10/100Mbps+2-Port Gigabit Desktop Switch with 8-Port PoE+ | T22

TP-Link LS1210P 8-Port 10/100Mbps+2-Port Gigabit Desktop Switch with 8-Port PoE+ | T22

$25.00

  • 8× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port
  • 2x Gigabit non-PoE Ports
  • 96 W total PoE budget
  • Up to 250 m (820ft) data and power transmitting range under Extend Mode
  • Isolation Mode allows one-click client traffic separation for higher security and performance
  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

Available on backorder

Categories: , ,

Description

Model: LS1210P

TP-Link 8-Port 10/100Mbps+2-Port Gigabit Desktop Switch with 8-Port PoE+

Overview

  • 8× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port*
  • 2x Gigabit non-PoE Ports
  • 96 W total PoE budget*
  • Up to 250 m (820ft) data and power transmitting range under Extend Mode**
  • Isolation Mode allows one-click client traffic separation for higher security and performance
  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
  • Simply plug and play for instant connectivity with no configuration required
  • Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses
  • Desktop / Wall-mounting

Specifications

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ab
Interface • 8*10/100 Mbps PoE+ RJ45 Ports + 2*10/100/1000Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX: UTP category 5 or above cable (maximum 100m)
• 1000BASE-T: UTP category 5e or above cable (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Power Input: 220~240V, 50/60Hz (NV), Output: 53.5 VDC / 1.92 A)
LED Power, Link/Act, PoE Status
Packet Forwarding Rate 4.1664Mpps
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 8
Power Supply: 96 W
Dimensions ( W x D x H ) 6.7×3.9×1.1 in (171×98×27 mm)
Max. Power Consumption 99.52 W
Max. Heat Dissipation 338.368 BTU/h

PERFORMANCE
Switching Capacity 5.6 Gbps
Packet Buffer Memory 2 Mbit
Advanced Features • Extend Mode (Ports 1-8)
• Isolation Mode (Ports 1-8)
• PoE Auto Recovery (Ports 1-8)
Jumbo Frame 2 KB

SOFTWARE FEATURES
MAC Address Table 2K
Transmission Method Store-And-Forward

OTHERS
Package Content Switch, Power Adapter, Rubber Feet, Installation Guide
Certifications CE, RoHS
Environment • Operating Temperature 0°C to 40 °C (32 °F to 104°F )
• Storage Temperature -40 °C to 70 °C (-40 °F to 158°F )
• Operating Humidity 10% to 90% non-condensing
• Storage Humidity 5% to 90% non-condensing
