TP-Link RE235BE BE3600 Dual-Band Wi-Fi 7 Range Extender | T62

Description

Model: RE235BE

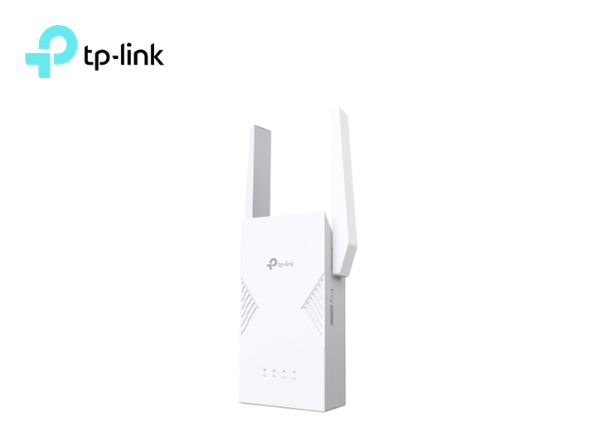

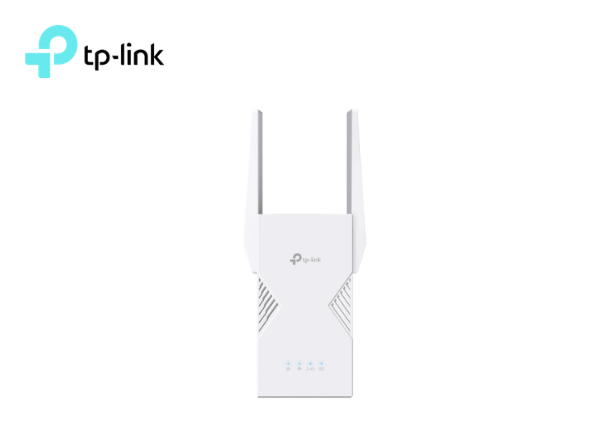

TP-Link BE3600 Dual-Band Wi-Fi 7 Range Extender

Overview

• Lightning-Fast 3.6 Gbps Dual-Band Wi-Fi 7: 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz).^†
• Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.^△
• 2.5G Multi-Gigabit Ethernet Port: 1× 2.5 Gbps port ensures max flexibility and boosted throughput.
• Smart Roaming: Walk from room to room and stay connected with the fastest possible speeds.^§
• EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh Wi-Fi, preventing drops and lag when moving between signals.*
• Easy Setup: Plug in and then easily set up via a press of the WPS button or via the Tether App.
• Great Compatibility: Works with all Wi-Fi generations and devices and all internet providers.***

Specifications

HARDWARE FEATURES
Interface	1× 2.5 Gbps Ethernet Port
Button	• WPS Button • Reset Button
Input Power	100-240V~50/60Hz 0.3A
Max. Power Consumption	15W
Dimensions ( W x D x H )	3.8 × 1.8 × 6.2 in (97 × 46 × 158 mm)
Antenna	2 External Antennas

WIRELESS FEATURES
Wireless Standards	Wi-Fi 7 IEEE 802.11be/ax/ac/n/a 5 GHz IEEE 802.11be/ax/n/b/g 2.4 GHz
Frequency	• 5 GHz • 2.4 GHz
Signal Rate	• 2882 Mbps at 5 GHz • 688 Mbps at 2.4 GHz
Working Modes	Range Extender/Access Point
Reception Sensitivity	5GHz: 11be EHT20 MCS0:-96dBm 11be EHT40 MCS0:-94dBm 11be EHT80 MCS0:-91dBm 11be EHT160 MCS0:-88dBm 11be EHT20 MCS13:-59dBm 11be EHT40 MCS13:-57dBm 11be EHT80 MCS13:-54dBm 11be EHT160 MCS13:-51dBm 2.4GHz: 11be EHT20 MCS0:-95dBm 11be EHT40 MCS0:-93dBm 11be EHT20 MCS13:-58dBm 11be EHT40 MCS13:-56dBm
Wireless Security	• WPA/WPA2-PSK encryptions • WPA2/WPA3
Advanced Features	• Multi-Link Operation (MLO) • 160 MHz Channel • 4K-QAM • Multi-RUs
Transmission Power	FCC: • 2.4GHz < 30dBm • 5GHz < 30dBm
Mesh Technology	EasyMesh-Compatible
Wireless Function	• LED Control • Access Control • Power Schedule • Wi-Fi Coverage

OTHER
Network Services Enabled by Default	Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443   Protocol: TCP DHCP Server IP address assignment (DHCP) • Port: 67   Protocol: UDP App management Manage and configure device through app • Port: 20001   Protocol: TCP • Port: 20002   Protocol: UDP

OTHERS
Certification	FCC, RoHS
Package Content	• Wi-Fi 7 Range Extender RE235BE • Quick Installation Guide
System Requirements	Internet Explorer, Firefox, Chrome, Safari, or other JavaScript-enabled browser
Environment	• Operating Temperature: 0℃~40℃ (32℉ ~104℉) • Storage Temperature: -40℃~70℃ (-40℉ ~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
