Description
Model: SM9220-1M

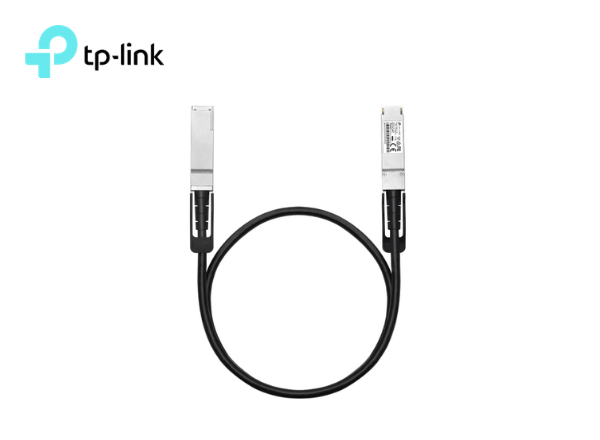

TP-Link Omada 1 Meter 100G QSFP28 Direct Attach Cable
Overview
- 100 Gbps data transmission
- QSFP28 connector on both sides
- Up to 1 m transmission distance
- Wide operating temperature
- Hot Swappable
Specifications
| GENERAL | |
|---|---|
| Product Dimensions | β’ Plug: 2.85*0.72*0.53 in (72.45*18.35*13.50 mm); β’ Overall length: 39.37 in (1,000 mm) |
| SFP28 Cable | |
|---|---|
| Environment | β’ Operating Temperature: 0β70 β (32β158 β) β’ Storage Temperature: -40β85 β (-40β185 β) β’ Operating Humidity: 10β90% RH non-condensing β’ Storage Humidity: 5β90% RH non-condensing |
| Data Rate | 100 Gbps / 40 Gbps |
| Conductor | Silver Plated Copper |
| Wire Gauge | 30AWG |
| Min. Bend Radius | 33 mm |
| Max. Cable Length | 1 m |
