Model : 2L-7D10H

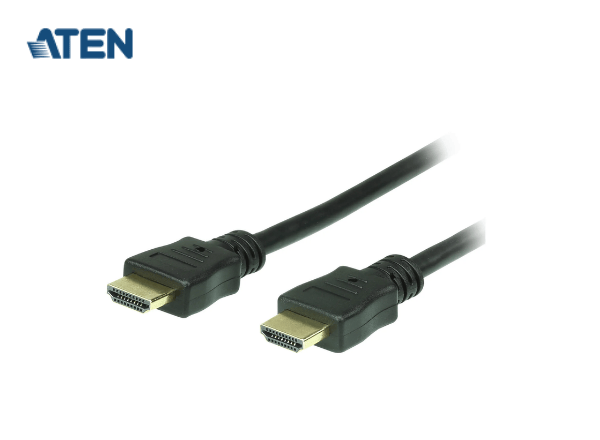

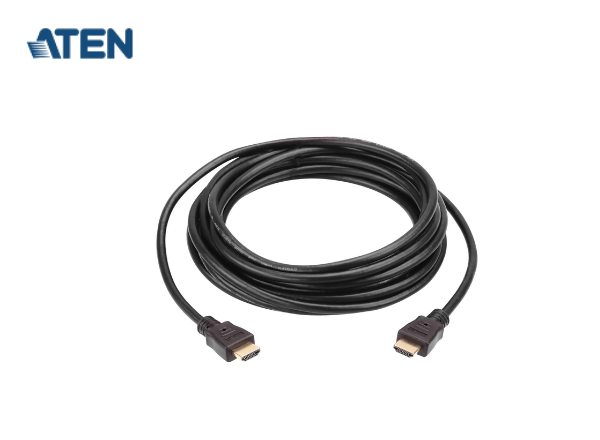

ATEN 10 m High Speed HDMI Cable with Ethernet

• HDMI (3D, Deep Color, 4K); HDCP 1.4 compliant
• Superior video quality – up to 4K (4096 x 2160 @30Hz)
• Gold-plated connectors for reliable transmissions
• Available in lengths from 5 to 20 m

Overview

ATEN High Speed HDMI Cable with Ethernet provides an uncompressed, all-digital interface for both audio and video signals. Our cables infuse high-quality copper wire to resist interference for improved image clarity. We offer HDMI cable at lengths of 5 to 20 meters with resolutions up to 4K (4096 x 2160 @30Hz).

Package Contents

1x 2L-7D10H 10m High Speed HDMI Cable with Ethernet

Features

• Superior video quality: • up to 4K (4096 x 2160 @30Hz)
• HDMI Ethernet Channel functionality: additional dedicated data channel supports networking*
• HDMI (3D, Deep Color, 4K); HDCP 1.4 compliant
• Gold-plated connectors for reliable transmissions
• Available in lengths from 5 to 20 m
• RoHS compliant

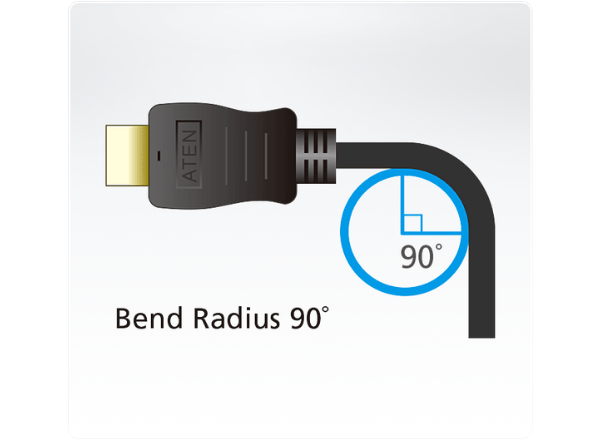

• Bend Radius 90°

Specifications

Max. Video Resolution	4096x2160@30Hz
Physical Properties
Cable Length	10M
Cable Color	Black
Cable Outer Dimension	8.0 ± 0.2mm
Conductor Gauge	26AWG
Conductor Material	Tinned Copper
Connector Plating	Gold
Connector Type	HDMI (19pin) Male to Male
Cable Shield Type	Aluminum Foil
Cable Jacket Type	PVC
Environmental
Operating Temperature	80℃
Rating	UL VW-1 (Flame rate), CSA
