Description
Model: TL-SM5110-LR

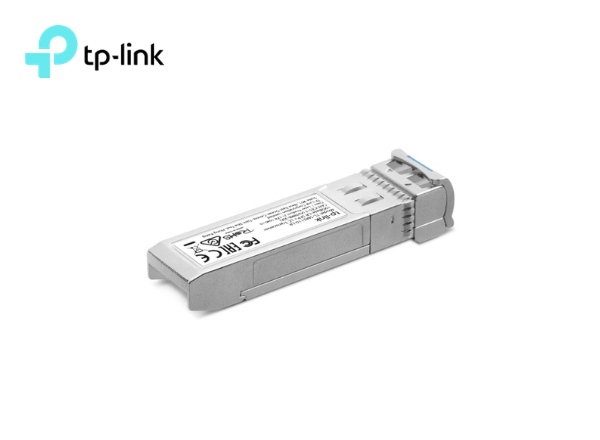

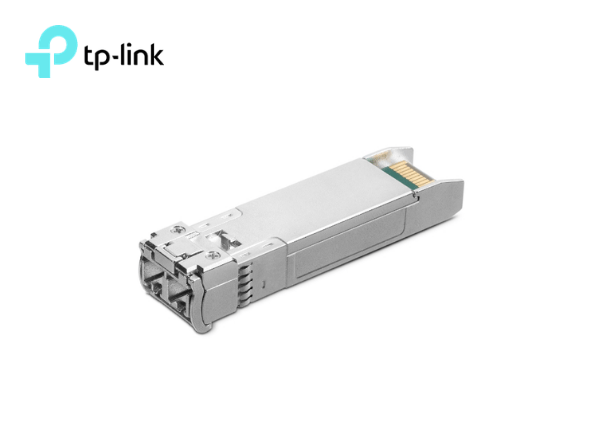

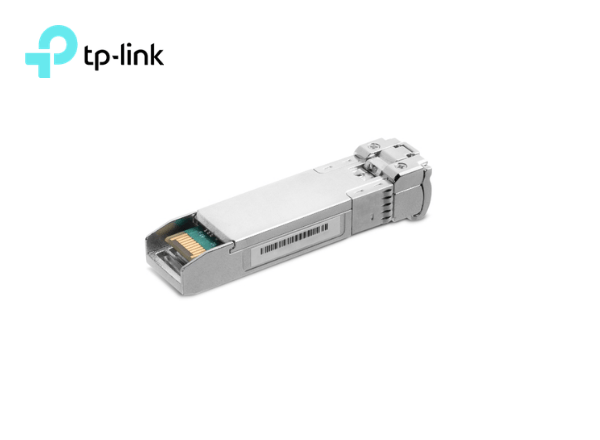

TP-Link 10GBase-LR SFP+ LC Transceiver
Overview
- Single-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
- Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Specifications
| PACKAGE CONTENTS | |
|---|---|
| Package Contents | β’ 10G SFP+ Module TL-SM5110-LR β’ Installation Guide |
| HARDWARE FEATURES | |
|---|---|
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| TRANSCEIVER | |
|---|---|
| Standards and Protocols | IEEE 802.3ae, TCP/IP |
| Wave Length | 1310 nm |
| Power Supply | 3.3V |
| Fiber Type | 9/125um Single-Mode |
| Max. Cable Length | 10 km |
| Data Rate | 10 Gbps |
| Port Type | LC Duplex |
| Safety & Emission | FCC, CE |
| Environment | Operating Temperature: 0β70 Β°C (32β158 Β°F) Storage Temperature: -40β85 Β°C ( -40β185 Β°F) Operating Humidity: 10β90% RH, Non-Condensing Storage Humidity: 5β90% RH, Non-Condensing |
