$ 75


  •  Next-Gen Gigabit Wi-Fi 6 Speed—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.
  •    Connect More Devices—OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.
  •    Ultra-Low Latency—Enables more responsive gaming and video chatting.
  •    Expanded Wi-Fi Coverage—Four high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home.
  •    TP-Link HomeShield - Enhanced security defends against the latest cyber threats.
  •    Improved Battery Life—Target Wake Time helps your devices to communicate more while consuming less power.
  •    Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
  •    EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage.
28-06-2023 8:24 AM

Model : Archer AX53

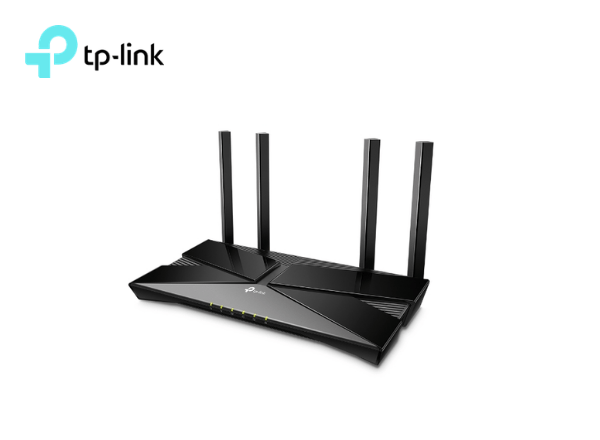

AX3000 Dual Band Gigabit Wi-Fi 6 Router

Overview

  •  Next-Gen Gigabit Wi-Fi 6 Speed—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.
  •    Connect More Devices—OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.
  •    Ultra-Low Latency—Enables more responsive gaming and video chatting.
  •    Expanded Wi-Fi Coverage—Four high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home.
  •    TP-Link HomeShield - Enhanced security defends against the latest cyber threats.
  •    Improved Battery Life—Target Wake Time helps your devices to communicate more while consuming less power.
  •    Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
  •    EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage.

Specifications

WIRELESS
Standards Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX3000 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 2-3 Bedroom Houses
4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage
WiFi Capacity High
Dual-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 4 Streams Connect your devices to more bandwidth
Working Modes Router Mode Access Point Mode
HARDWARE

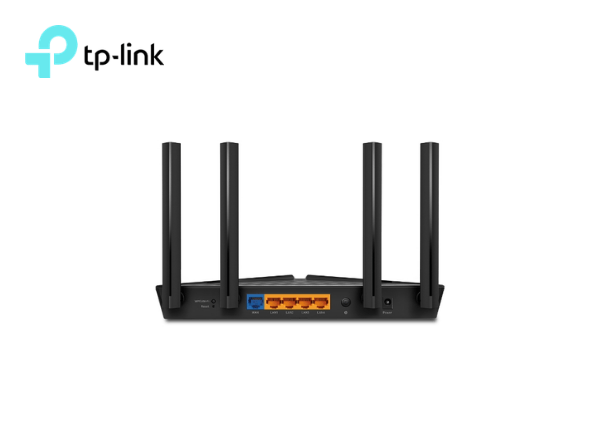

Ethernet Ports 1× Gigabit WAN Port 4× Gigabit LAN Ports
Buttons Wi-Fi/WPS Button Power On/Off Button Reset Button
Power 12 V ⎓ 2 A
SECURITY
WiFi Encryption WPA WPA2 WPA3 WPA/WPA2-Enterprise
Network Security SPI Firewall Access Control IP & MAC Binding Application Layer GatewayHomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
VPN Server OpenVPN PPTP VPN
SOFTWARE
Protocols IPv4 IPv6
Service Kits HomeShield Learn More>
EasyMesh Mesh networking creates smooth, fast, stable roaming. Archer AX53 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability. Learn More>
Parental Controls HomeShield Parental Controls
Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports
WAN Types Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service QoS by Device
Cloud Service Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding Port Forwarding Port Triggering DMZ UPnP
IPTV IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP Address Reservation DHCP Client List Server
DDNS TP-Link NO-IP DynDNS
Management Tether App Webpage Check Web Emulator>
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Certifications CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing
TEST DATA
WiFi Transmission Power CE: <20dBm (2.4GHz); <23dBm (5.15GHz~5.35GHz); <30dBm (5.47GHz~5.725GHz)
WiFi Reception Sensitivity 2.4GHz: 11ac VHT20_MCS0:-96dBm 11ac VHT20_MCS8:-74dB 11ac VHT40_MCS0:-94dBm 11ac VHT40_MCS9:-70dB 11ax HE20_MCS0:-96dBm 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-93dBm 11ax HE40_MCS11:-63dBm 5GHz: 11ac VHT20_MCS0:-97dBm 11ac VHT20_MCS8:-75dBm 11ac VHT40_MCS0:-94dBm 11ac VHT40_MCS9:-70dBm 11ac VHT80_MCS0:-91dBm 11ac VHT80_MCS9:-67dBm 11ac VHT160_MCS0:-88dBm 11ac VHT160_MCS9:-63dBm 11ax HE20_MCS0:-97dBm 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-94dBm 11ax HE40_MCS11:-63dBm 11ax HE80_MCS0:-91dBm 11ax HE80_MCS11:-61dBm 11ax HE160_MCS0:-87dBm 11ax HE160_MCS11:-58dBm
PHYSICAL
Dimensions (W×D×H) 10.2 × 5.3 × 1.6 in (260.2 × 135 × 41.6 mm)
Package Contents Wireless Router Archer AX53 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
