Description
Model: VS92A

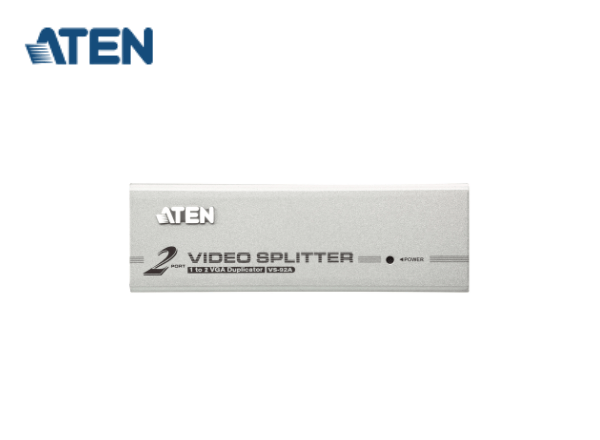

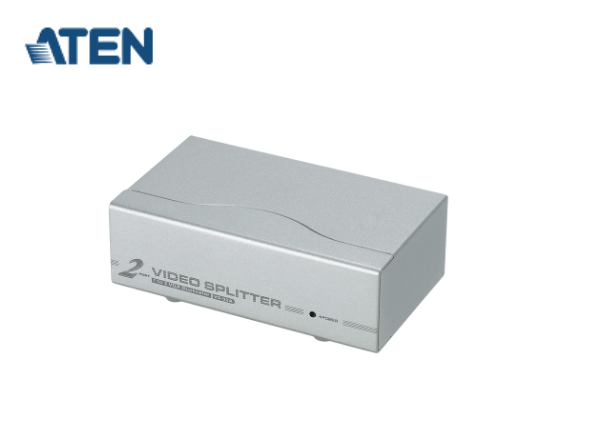

ATENΒ 2-Port VGA Splitter (350MHz)
- One video input to 2 video outputs
- Superior video quality – 1920 x 1440@60Hz
- Supports 350 MHz bandwidth
- Cascadable to 3 levels – provides up to 8 video signals
Overview

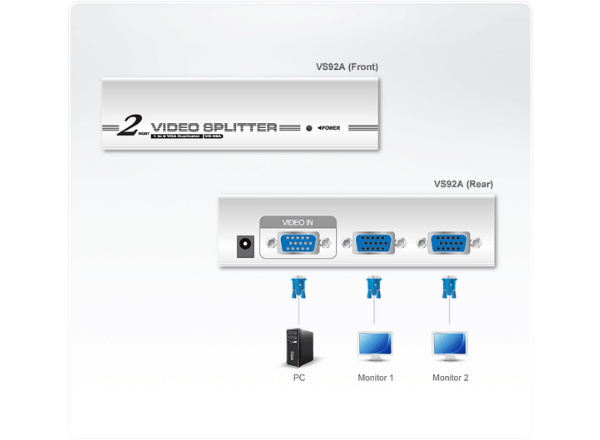

The VS92A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to two outputs, but also boosts the video signal over a distance of up to 30 meters. Cascadable to support up to 8 displays, and offering bandwidth up to 350 MHz, the VS92A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.
Features
- One video input to 2 video outputs
- Cascadable to 3 levels – provides up to 8 video signals
- Supports 350 MHz bandwidth
- Long-distance transmission – up to 30 m *
- Superior video quality – 1920 x 1440@60Hz
- DDC, DDC2, DDC2B Compatible (Port 1 only)
- Supports VGA, XGA, SVGA, UXGA,WUXGA and multisync monitors
- All metal casing
Specifications

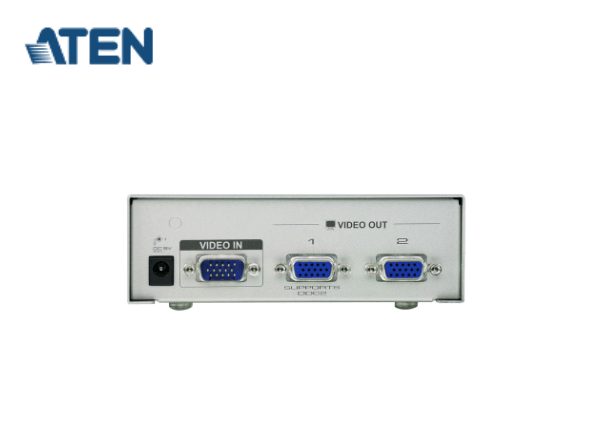

| Video Input | |
| Interfaces | 1 x HDB-15 Male (Blue) |
| Impedance | 75 Ξ |
| Max. Distance | 1.8 m |
| Video Output | |
| Interfaces | 2 x HDB-15 Female (Blue) |
| Impedance | 75 Ξ |
| Video | |
| Max. Bandwidth | 350 MHz |
| Max. Resolution | Up to 1920 x 1440 |
| Max. Distance | Up to 30 m |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC9V:1.15W:5BTU |
| Environmental | |
| Operating Temperature | 0-50Β°C |
| Storage Temperature | -20 – 60Β°C |
| Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.42 kg ( 0.93 lb ) |
| Dimensions (L x W x H) | 13.00 x 7.51 x 4.40 cm (5.12 x 2.96 x 1.73 in.) |
| Carton Lot | 20 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
