$ 45


  • All-in-One Device: ADSL2+ Modem, NAT Router, 4-Gigabit-Port Switch and Wireless N Access Point
  • 300Mbps Wireless speed and Gigabit Ethernet ports, ideal for multiple HD video streams
  • Versatile Connectivity: ADSL, Ethernet WAN or 3G/4G modem for multiple Internet connection types
  • One USB 2.0 port for storage sharing, printer sharing, FTP Server, Media Server and 3G/4G Modem
03-08-2022 9:23 AM

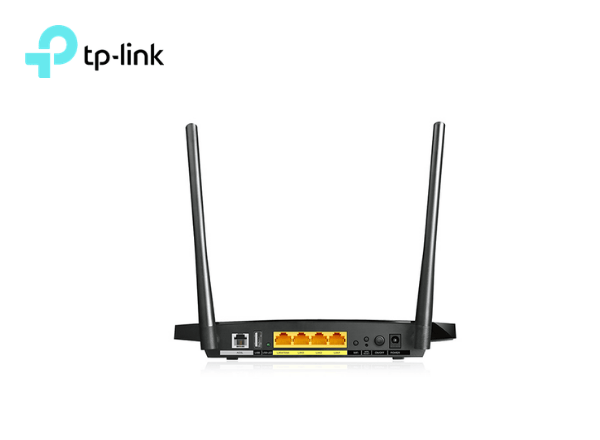

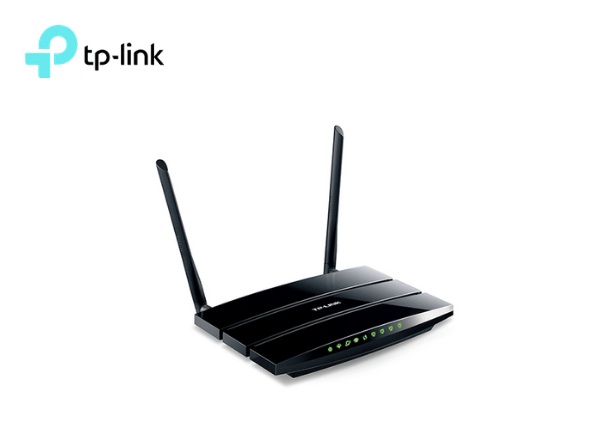

Model: TD-W8970

TP-Link 300Mbps Wireless N Gigabit ADSL2+ Modem Router

Overview

  • All-in-One Device: ADSL2+ Modem, NAT Router, 4-Gigabit-Port Switch and Wireless N Access Point
  • 300Mbps Wireless speed and Gigabit Ethernet ports, ideal for multiple HD video streams
  • Versatile Connectivity: ADSL, Ethernet WAN or 3G/4G modem for multiple Internet connection types
  • One USB 2.0 port for storage sharing, printer sharing, FTP Server, Media Server and 3G/4G Modem

Specifications

HARDWARE FEATURES
Interface 4 10/100/1000Mbps RJ45 Ports 1 RJ11 Port 1 USB 2.0 Port
Button 1 Power On/Off Button 1 WPS Button 1 Wi-Fi On/Off Switch 1 RESET Button
External Power Supply 12VDC/1.5A
IEEE Standards IEEE 802.3, 802.3u, 802.3ab
ADSL Standards Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite) ITU-T G.994.1 (G.hs) ITU-T G.995.1
ADSL2 Standards ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4(G.lite.bis)
ADSL2+ Standards ITU-T G.992.5
Dimensions ( W x D x H ) 8.9x5.5x1.3 in.(225x140x32.5mm)
Antenna Type Omni directional, Detachable, Reverse SMA
Antenna Gain 2 x 5dBi
WIRELESS FEATURES
Wireless Standards IEEE 802.11b, 802.11g, 802.11n
Frequency 2.400-2.4835GHz
Transmit Power <20dBm(EIRP)
Wireless Security Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK Wireless MAC Filtering
SOFTWARE FEATURES
Quality of Service WMM, Bandwidth Control (IP QoS)
Advanced Features Guest Network, Parental Control, Wireless Schedule Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt Dynamic Host Configuration Protocol (DHCP), DHCP relay Network Address Translation (NAT) PVC/Ethernet Port Grouping Static Routing, RIP v1/v2 (optional) DNS Relay, DDNS
Security NAT Firewall, SPI Firewall, MAC / IP / URL Filtering
IPv6 IPv6 and IPv4 dual stack Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4 Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6
Management Web Based Configuration(HTTP) Remote management Telnet management Command Line Interface SSL for TR-069 SNMP V1/V2C Web Based Firmware Upgrade CWMP(TR-069)
Port Forwarding Virtual server, Port Triggering, UPnP, DMZ, Manage Control
VPN Pass-Through PPTP, L2TP, IPSec Pass-through
ATM/PPP Protocols ATM Forum UNI3.1/4.0 PPP over ATM (RFC 2364) PPP over Ethernet (RFC2516) IPoA (RFC1577/2225) PVC - Up to 8 PVCs
USB Sharing Storage Sharing, FTP Server, Media Server, Print Server
IGMP IGMP snooping V1/V2/V3 IGMP Multicast
IPSec VPN 10 IPSec VPN Tunnels LAN-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm MD5, SHA1 Authentication Algorithm Manual, IKE Key Management Mode Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS)
OTHERS
Certification CE, FCC, RoHS IPv6
System Requirements Microsoftยฎ Windowsยฎ 98SE, NT, 2000, XP, Vista or Windows 10/8.1/7, MACยฎ OS, NetWareยฎ, UNIXยฎ or Linux.
Environment Operating Temperature: 0ยฐC~40ยฐC (32ยฐF~104ยฐF) Storage Temperature: -40ยฐC~70ยฐC (-40ยฐF~158ยฐF) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
