$ 85


  • 9× gigabit RJ45 ports, and 1× gigabit combo SFP/RJ45 Port
  • 8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W
  • Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
  • Up to 250 m data and power transmission range under Extend Mode
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
  • Isolation Mode allows one-click client traffic separation for higher security and performance
23-05-2022 10:12 AM

Model: TL-SG1210MP

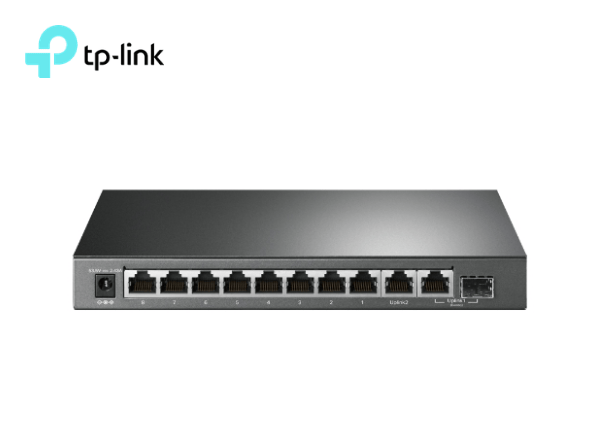

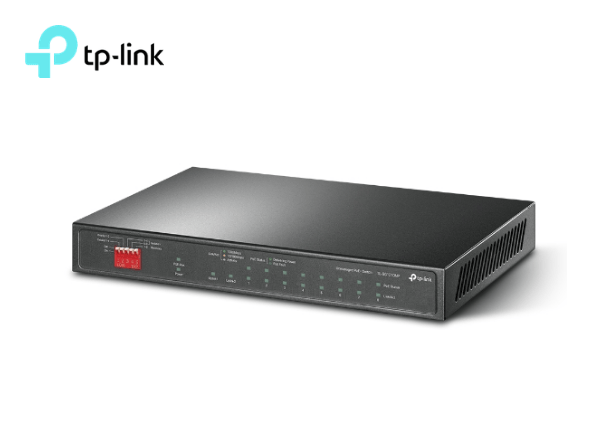

TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+

Overview

  • 9× gigabit RJ45 ports, and 1× gigabit combo SFP/RJ45 Port
  • 8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W
  • Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
  • Up to 250 m data and power transmission range under Extend Mode
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
  • Isolation Mode allows one-click client traffic separation for higher security and performance

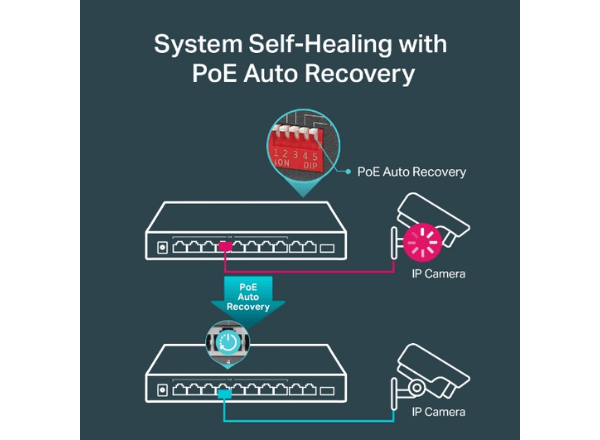

  • Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.
  • Plug and play with no configuration required
  • Fanless design reduces power consumption and works silently in its location

Specifications

HARDWARE FEATURES
Interface • 9× 10/100/1000 Mbps RJ45 Ports • 1× 1000 Mbps Combo SFP/RJ45 Port • AUTO Negotiation • AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5VDC / 2.43A)
Packet Forwarding Rate 14.88 Mpps
PoE Ports (RJ45) • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 123 W
Mac Address Table 4K
Jumbo Frame 16 KB
Switching Capacity 20 Gbps
Dimensions ( W x D x H ) 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Max Power Consumption • 7.93 W (220V / 50Hz with no PD connected) • 141.40 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation • 27.04 BTU/h (220V / 50Hz with no PD connected) • 482.17 BTU/h (220V / 50Hz with 123 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission) • Priority Mode Button (Ports 1–2) • Isolation Mode Button (Ports 1–4 / 5-8) • PoE Auto Recovery (Ports 1-8) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS

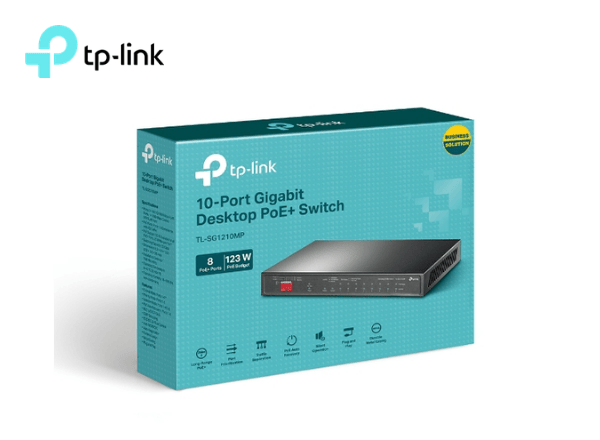

Package Contents • TL-SG1210MP • Power Adapter • Installation Guide
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
