Description
Model: 2L-7D05H

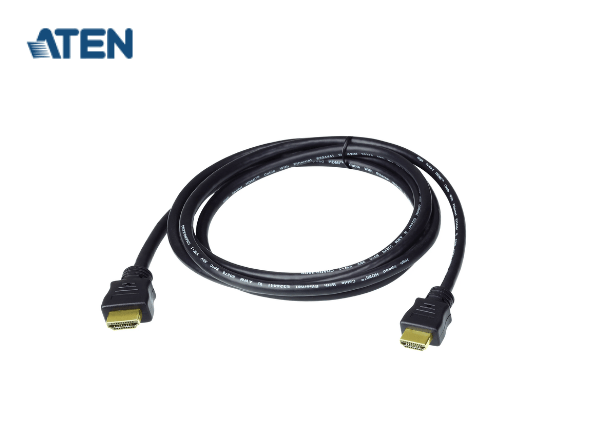

ATEN 5 m High Speed HDMI Cable with Ethernet
- HDMI (3D, Deep Color, 4K); HDCP 1.4 compliant
- Superior video quality β up to 4K (4096 x 2160 @30Hz)
- Gold-plated connectors for reliable transmissions
- Available in lengths from 5 to 20 m
Overview
ATEN High Speed HDMI Cable with Ethernet provides an uncompressed, all-digital interface for both audio and video signals. Our cables infuse high-quality copper wire to resist interference for improved image clarity. We offer HDMI cable at lengths of 5 to 20 meters with resolutions up to 4K (4096 x 2160 @30Hz).
Features
- Superior video quality:
β’ up to 4K (4096 x 2160 @30Hz) - HDMI Ethernet Channel functionality: additional dedicated data channel supports networking*
- HDMI (3D, Deep Color, 4K); HDCPΒ 1.4 compliant
- Gold-plated connectors for reliable transmissions
- Available in lengths from 5 to 20 m
- RoHS compliant

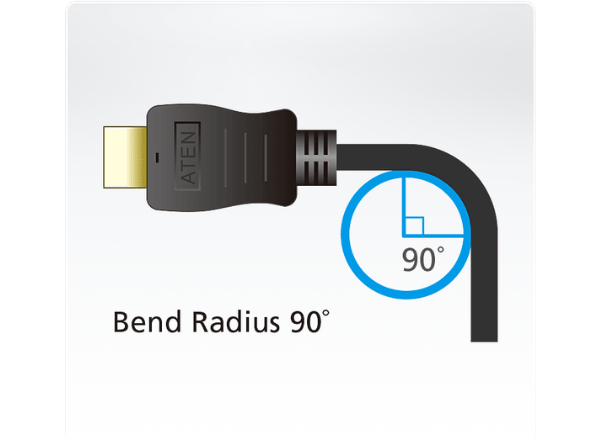

- Bend Radius 90Β°
Specifications
| Max. Video Resolution | 4096×2160@30Hz |
| Physical Properties | |
| Cable Length | 5M |
| Cable Color | Black |
| Cable Outer Dimension | 6.0 Β± 0.2mm |
| Conductor Gauge | 30AWG |
| Conductor Material | Tinned Copper |
| Connector Plating | Gold |
| Connector Type | HDMI (19pin) Male to Male |
| Cable Shield Type | Aluminum Foil |
| Cable Jacket Type | PVC |
| Environmental | |
| Operating Temperature | 80β |
| Rating | UL VW-1 (Flame rate), CSA |
