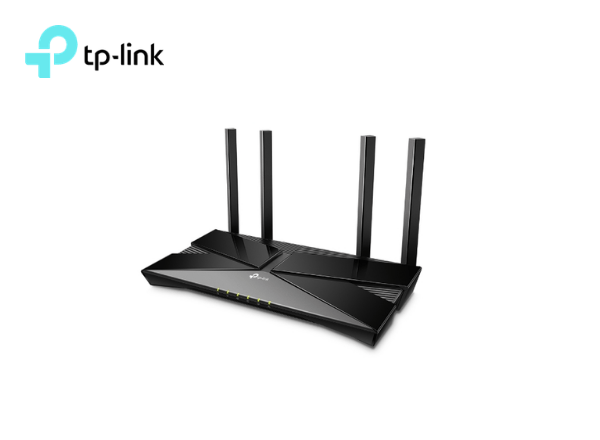

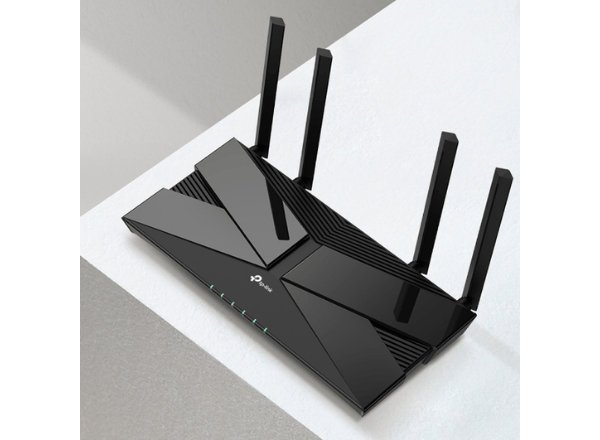

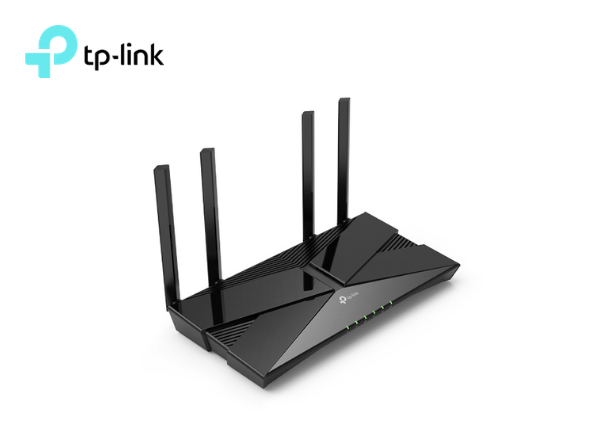

TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router

$ 55

Super-Fast 1.8 Gbps Wi-Fi – Enjoy smooth 4K streaming and downloading with super-fast Wi-Fi speeds of 1.8 Gbps.
Connect More Devices – Communicates with more devices using OFDMA while simultaneously reducing lag.
Broader Coverage – Improved algorithm, beamforming, and high-performance antennas enhance the Wi-Fi coverage performance.
Next-Gen Platform – The Next-Gen High-Efficiency Chipset provides fast and stable Wi-Fi while saving power consumption.
Parental Controls – Enjoy the most versatile yet free parental controls features among all routers, including URL blocking, profile management, pausing, and more.

28-06-2023 8:10 AM

Model: Archer AX23

TP-Link AX1800 Dual-Band Wi-Fi 6 Router

Overview

Super-Fast 1.8 Gbps Wi-Fi – Enjoy smooth 4K streaming and downloading with super-fast Wi-Fi speeds of 1.8 Gbps.
Connect More Devices – Communicates with more devices using OFDMA while simultaneously reducing lag.
Broader Coverage – Improved algorithm, beamforming, and high-performance antennas enhance the Wi-Fi coverage performance.
Next-Gen Platform – The Next-Gen High-Efficiency Chipset provides fast and stable Wi-Fi while saving power consumption.
Parental Controls – Enjoy the most versatile yet free parental controls features among all routers, including URL blocking, profile management, pausing, and more.
Works with Most ISPs – Compatible with most ISPs with extra L2TP/PPTP support. IPTV support works with your existing TV over the Internet contract.
EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage
Easy Setup – Set up your router in minutes with the powerful TP-Link Tether App.
Backward Compatible – Supports all previous 802.11 standards Wi-Fi devices.

Specifications

WIRELESS
Standards	Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds	AX1800 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range	3 Bedroom Houses 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity	High Dual-Band Allocate devices to different bands for optimal performance Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth
Working Modes	Router Mode Access Point Mode

HARDWARE

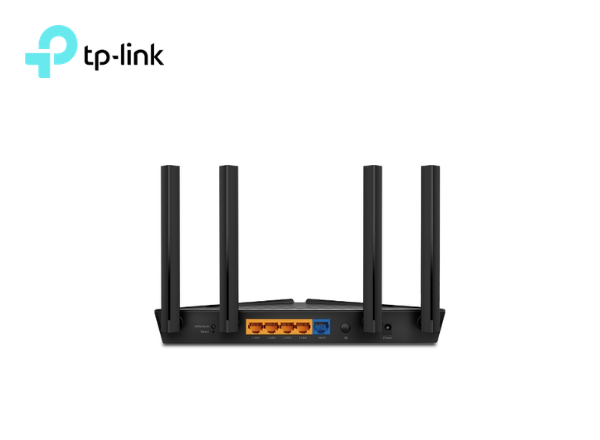

Ethernet Ports	1× Gigabit WAN Port 4× Gigabit LAN Ports
Buttons	WPS/Wi-Fi Button Power On/Off Button Reset Button
Power	12 V ⎓ 1 A

SECURITY
WiFi Encryption	WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x)
Network Security	SPI Firewall Access Control IP & MAC Binding Application Layer Gateway
Guest Network	1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
VPN Server	OpenVPN PPTP

SOFTWARE
Protocols	IPv4 IPv6
EasyMesh	Mesh networking creates smooth, fast, stable roaming. Archer AX23 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability. Learn More>
Parental Controls	URL Filtering Time Controls
WAN Types	Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service	QoS by Device
Cloud Service	Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding Port Triggering DMZ UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link NO-IP DynDNS
Management	Tether App Webpage Check Web Emulator>

OTHER
System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Certifications	FCC, CE, RoHS
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

TEST DATA
WiFi Transmission Power	CE: <20dBm(2.4 GHz) <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception Sensitivity	EU Version 5G 11a 6Mbps: -96dbm 11a 54Mbps:-75dbm 11ac VHT20_MCS0: -95dbm 11ac VHT20_MCS8: -71dbm 11ac VHT40_MCS0: -92dbm 11ac VHT40_MCS9: -66dbm 11ac VHT80_MCS0: -89dbm 11ac VHT80_MCS9:-62dbm 11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -64dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -60dbm 11ax HE80_MCS0: -89dbm 11ax HE80_MCS11:-59dbm2.4G 11g 6Mbps:-96dbm 11g 54Mbps:-75dbm 11n HT20_MCS0:-95dbm 11n HT20_MCS7:-75dbm 11n HT40_MCS0:-92dbm 11n HT40_MCS7: -72dbm 11ac VHT20_MCS0:-95dbm 11ac VHT20_MCS8:-72dbm 11ac VHT40_MCS0:-92dbm 11ac VHT40_MCS9: -67dbm 11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -65dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -62dbmUS Version 5G 11a 6Mbps: -96dbm 11a 54Mbps:-75dbm 11ac VHT20_MCS0: -95dbm 11ac VHT20_MCS8: -71dbm 11ac VHT40_MCS0: -92dbm 11ac VHT40_MCS9: -66dbm 11ac VHT80_MCS0: -89dbm 11ac VHT40_MCS9:-62dbm 11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -64dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -60dbm 11ax HE80_MCS0: -89dbm 11ax HE80_MCS11:-59dbm2.4G 11g 6Mbps:-96dbm 11a 54Mbps:-75dbm 11ac VHT20_MCS0:-95dbm 11ac VHT20_MCS8:-72dbm 11ac VHT40_MCS0:-92dbm 11ac VHT40_MCS9: -67dbm 11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -65dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -62dbm

TEST DATA

WiFi Transmission Power

CE: <20dBm(2.4 GHz) <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

WiFi Reception Sensitivity

EU Version 5G 11a 6Mbps: -96dbm 11a 54Mbps:-75dbm 11ac VHT20_MCS0: -95dbm 11ac VHT20_MCS8: -71dbm 11ac VHT40_MCS0: -92dbm 11ac VHT40_MCS9: -66dbm 11ac VHT80_MCS0: -89dbm 11ac VHT80_MCS9:-62dbm 11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -64dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -60dbm 11ax HE80_MCS0: -89dbm 11ax HE80_MCS11:-59dbm2.4G 11g 6Mbps:-96dbm 11g 54Mbps:-75dbm 11n HT20_MCS0:-95dbm 11n HT20_MCS7:-75dbm 11n HT40_MCS0:-92dbm 11n HT40_MCS7: -72dbm 11ac VHT20_MCS0:-95dbm 11ac VHT20_MCS8:-72dbm 11ac VHT40_MCS0:-92dbm 11ac VHT40_MCS9: -67dbm 11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -65dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -62dbmUS Version 5G 11a 6Mbps: -96dbm 11a 54Mbps:-75dbm 11ac VHT20_MCS0: -95dbm 11ac VHT20_MCS8: -71dbm 11ac VHT40_MCS0: -92dbm 11ac VHT40_MCS9: -66dbm 11ac VHT80_MCS0: -89dbm 11ac VHT40_MCS9:-62dbm 11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -64dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -60dbm 11ax HE80_MCS0: -89dbm 11ax HE80_MCS11:-59dbm2.4G 11g 6Mbps:-96dbm 11a 54Mbps:-75dbm 11ac VHT20_MCS0:-95dbm 11ac VHT20_MCS8:-72dbm 11ac VHT40_MCS0:-92dbm 11ac VHT40_MCS9: -67dbm 11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -65dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -62dbm

PHYSICAL
Dimensions (W×D×H)	10.2 × 5.3 ×1.5 in (260.2 × 135.0 × 38.6 mm)
Package Contents	Wi-Fi Router Archer AX23 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
