$ 65


  • Unrivaled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)†§
  • Smoother Experience—75% lower latency ensures ultra-responsive real-time gaming*
  • Reliable Connections—Intel® Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router‡
  • Wider Signal Coverage—Two multi-directional antennas with a magnetized base are designed for optimum signal reception
  • Bluetooth 5.2—The latest Bluetooth technology achieves Faster Speed and Broader Coverage than older versions
  • Improved Security—The latest security enhancements WPA3 provide enhanced protection in personal password safety
  • Fine Crafting—Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments
  • Backward Compatibility – Full support for 802.11ac/a/b/g/n standards
13-08-2022 8:56 AM

Model: Archer TX3000E

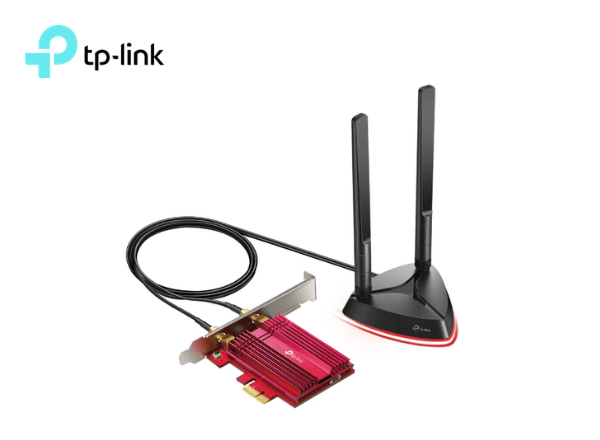

TP-Link AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Overview

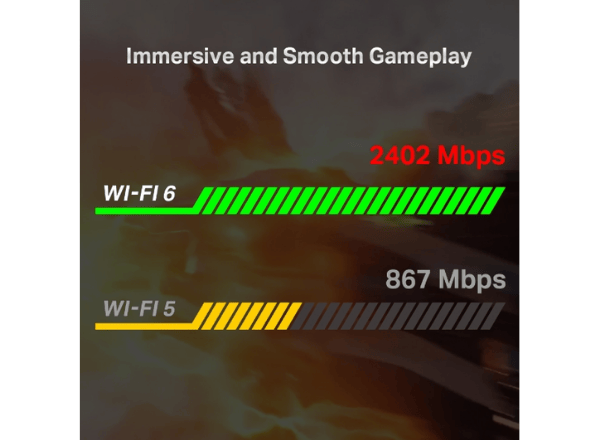

  • Unrivaled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)†§
  • Smoother Experience—75% lower latency ensures ultra-responsive real-time gaming*
  • Reliable Connections—Intel® Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router

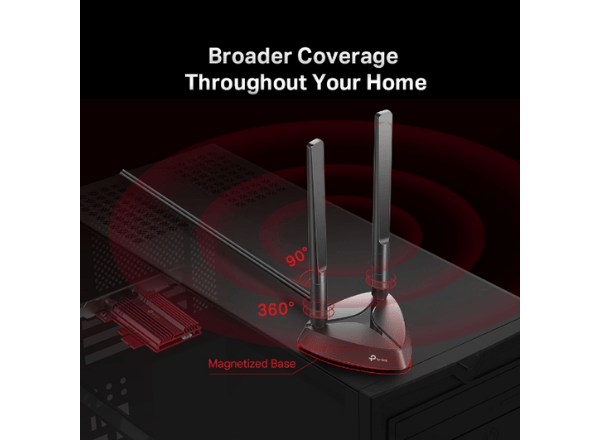

  • Wider Signal Coverage—Two multi-directional antennas with a magnetized base are designed for optimum signal reception

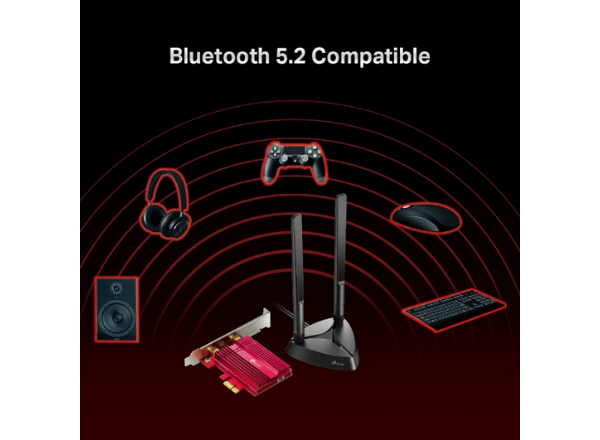

  • Bluetooth 5.2—The latest Bluetooth technology achieves Faster Speed and Broader Coverage than older versions
  • Improved Security—The latest security enhancements WPA3 provide enhanced protection in personal password safety
  • Fine Crafting—Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments
  • Backward Compatibility – Full support for 802.11ac/a/b/g/n standards

Specifications

HARDWARE FEATURES
Interface PCI Express x1/x4/x8/x16
Dimensions 3.7 x 4.8 x 0.8 in (95.2 x 120.8 x 21.5 mm)
Antenna Type Two High-Gain Dual Band Antennas Magnetized Antenna Base
Chipset Intel Wi-Fi 6 Chipset
BLUETOOTH FEATURES
Standards and Protocols Bluetooth 5.2, Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0
Interface F_USB 2.0
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/g/b 2.4 GHz Bluetooth 5.0/4.2/4.0
WLAN Signal Rate 5 GHz 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1733 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz 11ax: Up to 574 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity 5 GHz : 11ax HT160:-56.25dBm 11ax HT80: -59dBm 11ax HT40: -62.25dBm 11ax HT20: -65dBm 11ac HT160:-62dBm 11ac HT80: -65.5dBm 11ac HT40: -69.75dBm 11ac HT20: -73.75dBm 11n HT40: -74.5dBm 11n HT20: -77.5dBm 11a 54Mbps: -77.75dBm 11a 6Mbps: -94.5dBm 2.4GHz : 11ax HT40: -60.75dBm 11ax HT20: -63.75dBm 11n HT40: -73dBm 11n HT20: -76.25dBm 11g 54Mbps: -76.5dBm 11b 11Mbps: -89dBm
WLAN Transmit Power 5 GHz: 28dBm(FCC) / 23dBm(CE) (EIRP), 2.4 GHz : 24dBm(FCC) / 20dBm(CE) (EIRP)
WLAN Modes Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
OTHERS
Certification CE, FCC, RoHS

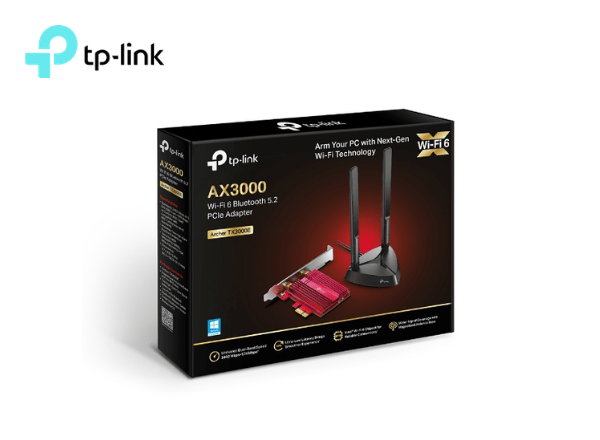

Package Contents Archer TX3000E Magnetized Antenna Base with 1m RF Cable Two High Gain Antennas Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD
System Requirements Windows 11/10(64-bit) only
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
