ATEN CS1308 8-Port PS/2-USB VGA KVM Switch | A199
ATEN CS1308 8-Port PS/2-USB VGA KVM Switch | A199 - Image 2
ATEN CS1308 8-Port PS/2-USB VGA KVM Switch | A199 - Image 3
ATEN CS1308 8-Port PS/2-USB VGA KVM Switch | A199 - Image 4
ATEN CS1308 8-Port PS/2-USB VGA KVM Switch | A199 - Image 5

ATEN CS1308 8-Port PS/2-USB VGA KVM Switch | A199

$235.00

  • One USB-PS/2 console controls 8 computers; Cascade up to 2 levels – control up to 64 computers
  • Broadcast mode – operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc.
  • Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
  • Video DynaSyncβ„’ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
Categories: , ,

Description

Model: CS1308

ATEN 8-Port PS/2-USB VGA KVM Switch

Features

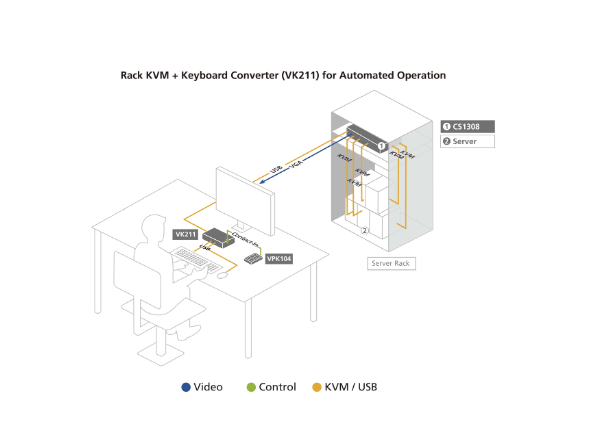

The CS1308 expedites access to up to 8 PCs via one set of keyboard, mouse and monitor, allowing IT staff to productively manage multiple computers all at once via easy switching. The CS1308 is also expandable and allows 8 more switches to be cascaded to enable centralized management of up to 64 PCs via one KVM console.

  • One USB-PS/2 console controls 8 computers; Cascade up to 2 levels – control up to 64 computers
  • Broadcast mode – operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc.
  • Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
  • Video DynaSyncβ„’ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports

Specifications

Computer Connections
Direct 8
Maximum 64 (via Cascade)
Port Selection OSD, Hotkey, Pushbutton

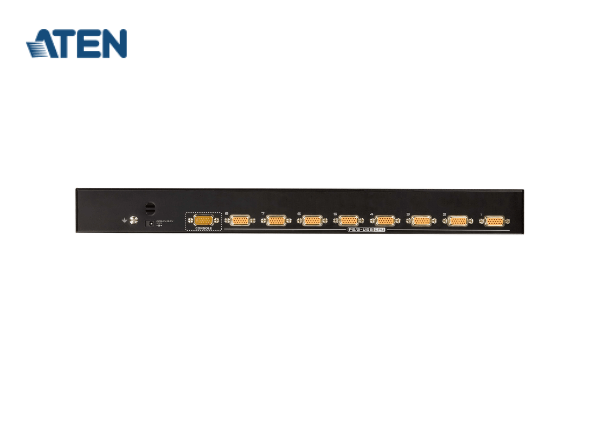

Connectors
Console Ports 1 x SPHD-18 Male (Yellow)
KVM Ports 8 x SPHD-18 Female (Yellow)
Firmware Upgrade 1 x RJ-11 Female (Black)
Power 1 x DC Jack
Switches
Ports 8 x Pushbutton
Firmware Upgrade 1 x Slide
LEDs
Online 8 (Orange)
Selected 8 (Green)
Power 1 (Dark Green)
Emulation
Keyboard / Mouse PS/2, USB
Video 2048 x 1536; DDC2B
Scan Interval 1 – 255 Seconds (Default: 5 secs)
Power Consumption DC5.3V:2.34W:19BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0-50˚C
Storage Temperature -20-60˚C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 1.89 kg ( 4.16 lb )
Dimensions (L x W x H) 43.72 x 16.13 x 4.40 cm
(17.21 x 6.35 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
