Description
Model:ย TL-MR150

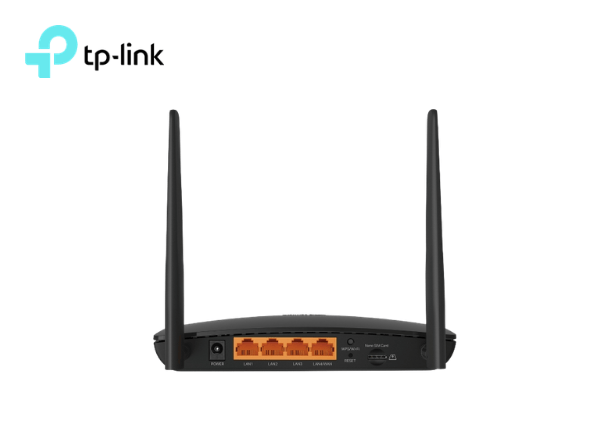

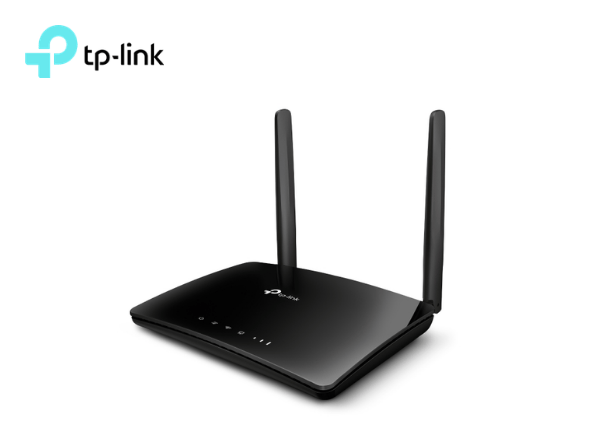

TP-Link 300Mbps Wireless N 4G LTE Router
Overview
- Cutting-edge 4G network โ share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps

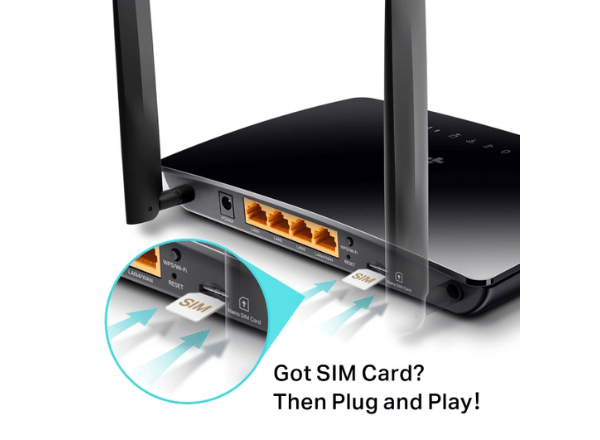

- Plug a SIM card and play โ no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
- Two detachable advanced LTE antennas โ enjoy stable and efficient connections to every device thanks to the two external antennas
- Wi-Fi router mode โ plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can’t get a 4G connection
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | 3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 Micro SIM Card Slot |
| Button | WPS/RESET Button, WiFi ON/OFF Button, POWER ON/OFF Button |
| External Power Supply | 9V/0.85A |
| Dimensions ( W x D x H ) | 7.95 ร 5.55 ร 1.32 in. (202 ร 141 ร 33.6 mm) |
| Antenna Type | 2 ร Detachable External 4G LTE Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11b, 802.11g, 802.11n |
| Frequency | 2.4 GHz |
| Signal Rate | 300 Mbps at 2.4 GHz |
| Reception Sensitivity | 11g 54M: -74dBm 11n HT20: -71dBm 11n HT40: -67dBm |
| Transmit Power | CE: < 20 dBm(2.4 GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| WAN Failover | Yes |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Network Type | 4G: FDD-LTE Cat4 (800/900/1800/2100/2600MHz), TDD-LTE (1900/2300/2500/2600MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS (900/2100MHz) |
| SOFTWARE FEATURES | |
|---|---|
| Operating Modes | 3G/4G Router, Wireless Router |
| Management | Access Control, Local Management, Remote Management |
| WAN Connection Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| VPN | PPTP VPN, IPSec VPN , OpenVPN |
| Access Control | Parental Controls, Local Management Control, Host List, Access Control |
| Firewall Security | DoS, SPI Firewall, IP and MAC Address Binding |
| Protocols | IPv4, IPv6 |
| Guest Network | 2.4GHz guest network |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Contents | 300Mbps Wireless N 4G LTE Router TL-MR150 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vistaโข or Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsers Micro SIM Card |
| Environment | Operating Temperature: 0โ~40โ (32โ ~104โ) Storage Temperature: -40โ~70โ (-40โ ~158โ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
