Description
Model: CS62US

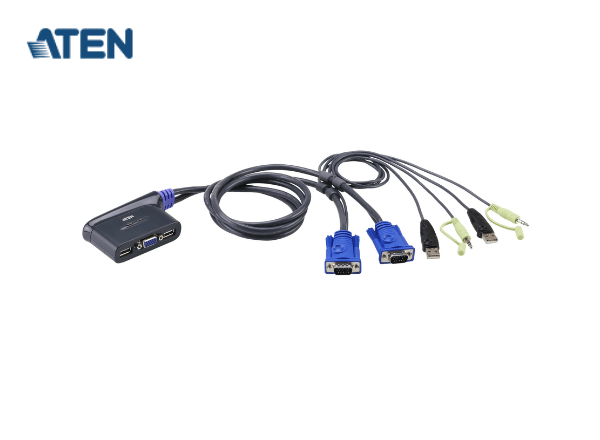

ATEN 2-Port USB VGA/Audio Cable KVM Switch (0.9m)
- Superior video quality β up to 2048 x 1536 @ 60 Hz ; DDC2B
- Computer Selection via hotkey and USB mouse
- Multiplatform support – Windows, Linux, Mac, and Sun
- Built-in 0.9 m cables and bus-powered design
Overview

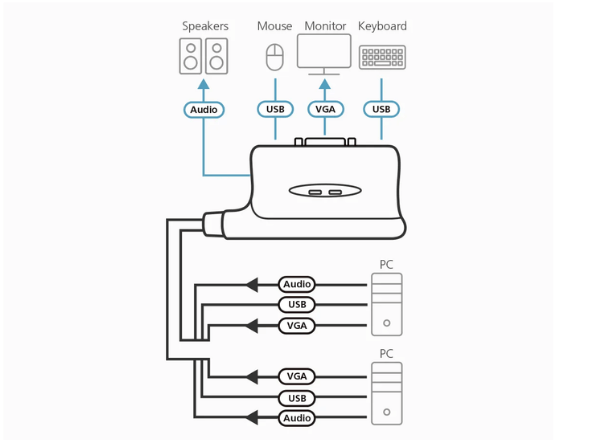

ATEN provides total USB KVM solution. CS62US links two USB computers to one USB console for a complete USB system compatible with all operating platforms, including Windows, Mac, Linux and Sun.
Features
- One USB console controls two USB computers
- Compact design, built-in 0.9 m cables
- Hotkey selection for OS and keyboard language
- Computer Selection via hotkey and USB mouse
- Multiplatform support – Windows, Linux, Mac, and Sun
- Video DynaSync β’ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Console mouse port emulation / bypass feature supports most mouse drivers
- USB mouse port can be used for USB hub and USB peripheral sharing*
- Supports gaming keyboards
- Supports multifunction and wireless keyboards and mice
- All-in-one design
- Supports speaker functions
- Superior video quality β up to 2048 x 1536 @ 60 Hz ; DDC2B
- Auto Scan function to monitor computer operation
- Bus-powered
- Sun/Mac keyboard support and emulation
Specifications
| Computer Connections | 2 |
| Port Selection | Hotkey, Mouse |
| Connectors | |

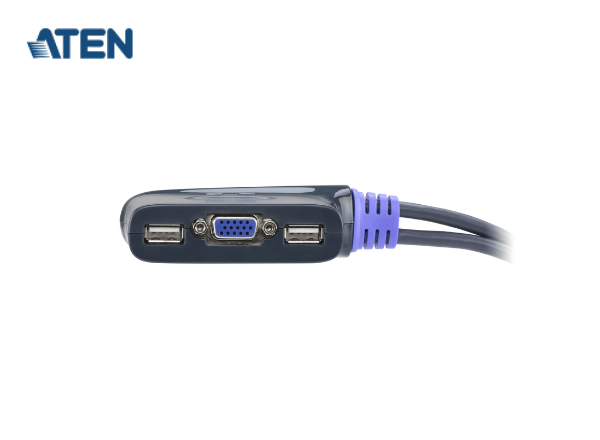

| Console Ports | 1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) |
| KVM Ports | 2 x HDB-15 Male (Blue) 2 x USB Type A Male (Black) 2 x 3.5mm Audio Jack Male (Green) |
| LEDs | |
| Selected | 2 (Green) |
| Cable Length | |
| Computer | 2 x 0.9 m |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | 2048 x 1536, DDC2B |
| Scan Interval | 5 seconds |
| Power Consumption | DC5V:0.33W:14BTU/h
Note: |
| Environmental | |
| Operating Temperature | 0 – 50Β°C |
| Storage Temperature | -20 – 60Β°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.28 kg ( 0.62 lb ) |
| Dimensions (L x W x H) | 8.75 x 6.08 x 2.80 cm (3.44 x 2.39 x 1.1 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
