Description
Model: CS64US

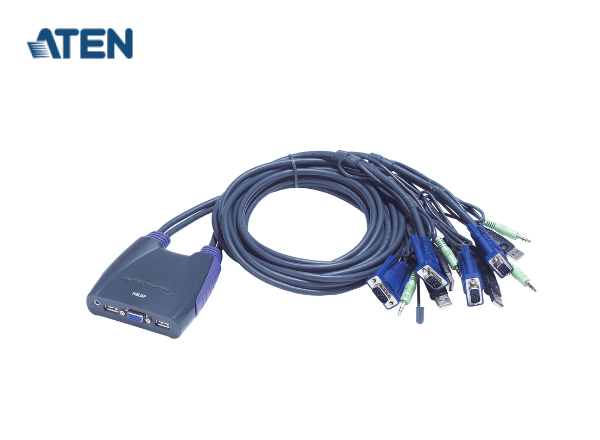

ATEN 4-Port USB VGA/Audio Cable KVM Switch (0.9m, 1.2m)
- Superior video quality โ up to 2048 x 1536 @ 60 Hz ; DDC2B
- Computer Selection via hotkey
- Multiplatform support โ Windows, Linux, Mac, and Sun
- Built-in 0.9/1.2 m cables and bus-powered design
Overview
The CS64US takes a giant step forward from prior cable KVM models, by offering built-in cables, USB peripheral sharing, and a firmware upgrade function that allows you to keep up with latest available versions.
Furthermore, the CS64US features enhanced Video DynaSyncโข technology, which stores the console monitorโs EDIDย (Extended Display Identification Data) to optimize display resolution. The CS64US also offers multiplatform support and computer selection via hotkeys to provide the ultimate in desktop convenience.
Features

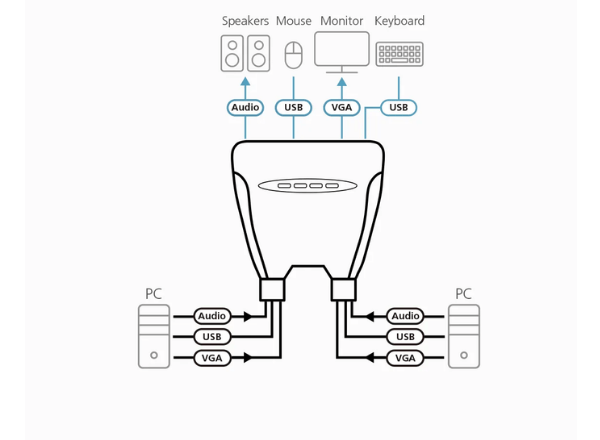

- One USB console controls four USB computers
- Compact design, built-in 0.9/1.2 m cables
- Hotkey selection for OS and keyboard language
- Computer Selection via hotkey
- Multiplatform support โ Windows, Linux, Mac, and Sun
- Video DynaSync โข โ exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- USB mouse port can be used for USB 1.1 hub and USB 1.1 peripheral sharing
- Supports multifunction and wireless keyboards and mice
- All-in-one design
- With speaker support
- Superior video quality โ up to 2048 x 1536 @ 60 Hz ; DDC2B
- Auto Scan function to monitor computer operation
- Bus-powered
- Sun/Mac keyboard support and emulation*
- Firmware upgradable
Specifications
| Computer Connections | 4 |
| Port Selection | Hotkey |
| Connectors | |

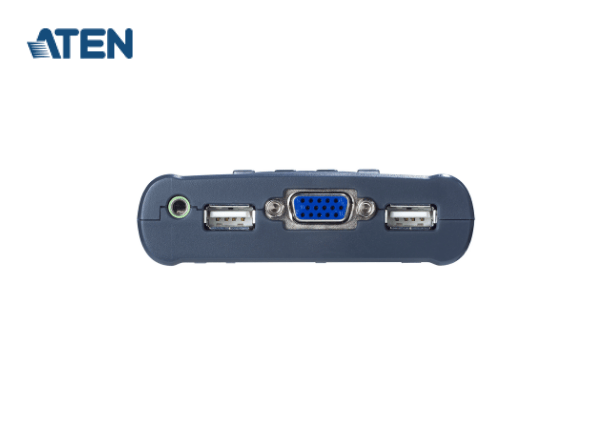

| Console Ports | 1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) |
| KVM Ports | 4 x HDB-15 Male (Blue) 4 x USB Type A Male 4 x 3.5mm Audio Jack Male (Green) |
| LEDs | |
| Selected | 4 (Green) |
| Cable Length | |
| Computer | 2 x 0.9 m; 2 x 1.2 m |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | 2048 x 1536; DDC2B |
| Scan Interval | 1-99 secs. (default 5 secs.) |
| Power Consumption | DC5V:0.9W:8BTU/h
Note: |
| Environmental | |
| Operating Temperature | 0 – 50ยฐC |
| Storage Temperature | -20 – 60ยฐC |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.58 kg ( 1.28 lb ) |
| Dimensions (L x W x H) | 9.41 x 9.72 x 2.60 cm (3.7 x 3.83 x 1.02 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
