$ 110


  • TP-Link's First 4G Router – supports 4G Cat6 to boost the data speeds of up to 300 Mbps*
  • Full Gigabit Ports – provides reliable wired connections for bandwidth-intensive devices such as game consoles and STB
  • Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100 countries are assured by years of field tests
  • Better Signal for Connections Everywhere – enjoy stable and efficient connections to every device thanks to the two external LTE antennas
  • Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection
  • Supports TP-Link OneMeshTM – co-works with TP-Link OneMesh products to create a flexible and cost-efficient Mesh network
02-08-2022 11:09 AM

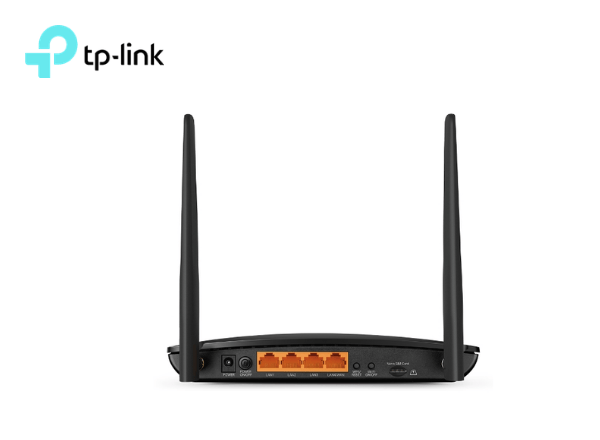

Model: Archer MR600

TP-Link 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router

Overview

  • TP-Link's First 4G Router – supports 4G Cat6 to boost the data speeds of up to 300 Mbps*
  • Full Gigabit Ports – provides reliable wired connections for bandwidth-intensive devices such as game consoles and STB
  • Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100 countries are assured by years of field tests
  • Better Signal for Connections Everywhere – enjoy stable and efficient connections to every device thanks to the two external LTE antennas
  • Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection
  • Supports TP-Link OneMeshTM – co-works with TP-Link OneMesh products to create a flexible and cost-efficient Mesh network

Specifications

HARDWARE FEATURES
Interface 1 × 10/100/1000 Mbps LAN/WAN Port 3 × 10/100/1000 Mbps LAN Ports 1 × Micro SIM Card Slot
Button WPS Button, Reset Button, WiFi On/Off Button, Power On/Off Button
External Power Supply Power Adapter: Input Power 100-240v~50/60 Hz 0.6A Output parameter 12VDC 1.5A
Dimensions ( W x D x H ) 9.0×6.3×1.5 in ( 229×160×37 mm)
Antenna 2 × Detachable 4G LTE Antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency 2.4 GHz and 5 GHz
Signal Rate 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
Reception Sensitivity 5 GHz: 11a 54M: -74 dBm 11ac HT20: -66 dBm 11ac HT40: -63 dBm 11ac HT80 : -59 dBm 11n HT20: -73 dBm 11n HT40: -70 dBm 2.4 GHz: 11g 54M: -74 dBm 11n HT20: -72 dBm 11n HT40: -69 dBm
Transmit Power < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
Wireless Functions Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: DC-HSPA /HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
SOFTWARE FEATURES
Quality of Service Bandwidth Control
Security DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control
WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management TP-Link Cloud, Local Management, Remote Management
DHCP Server, DHCP Client List, Address Reservation
Port Forwarding ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS TP-Link, DynDns, NO-IP
VPN PPTP VPN, IPSec VPN , OpenVPN
Access Control Parental Control, Local Management Control
Firewall Security DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
Protocols IPv4, IPv6
Guest Network 2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1
OTHERS
Certification CE, RoHS
Package Contents 4G Cat6 AC1200 Wireless Dual Band Gigabit Router Archer MR600 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Micro SIM Card
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
