Description
Model: KA7170

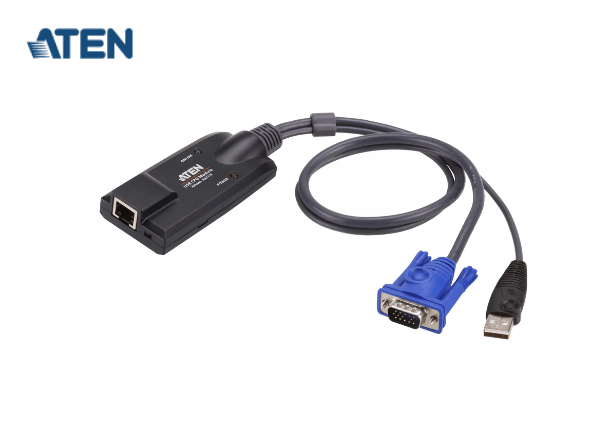

ATEN USB VGA KVM Adapter with Composite Video Support
- Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances
- Keyboard and mouse emulation – keeps your server functioning smoothly when it is disconnected from the switch’s KVM port or relocated to a different KVM port
- Superior video quality – supports resolution up to 1920 x 1200 (Reduced blanking)
Overview

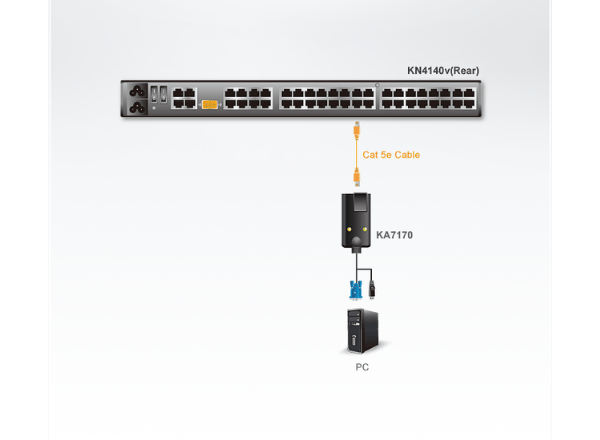

The KA7170 USB KVM Adapter Cable connects the KVM switch to the video and USB ports of the target computer. With its small form factor and light weight design, it represents the next generation of USB KVM Adapter Cables – offering superior signal compensation and delay skew techniques for greatly enhanced video quality.
Features
- Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances
- Keyboard and mouse emulation – keeps your server functioning smoothly when it is disconnected from the switch’s KVM port or relocated to a different KVM port
- Lifetime firmware upgrades
- Superior video quality – supports resolution up to 1920 x 1200 (Reduced blanking)*
- Built-in ASIC for greater reliability and compatibility
- Hot Pluggable – add or remove computers without having to power down the switch
- Compact size
Specifications
| Connectors | |
| Link | 1 x RJ-45 Female |
| Computer | 1 x USB Type A Male 1 x HDB-15 Male |
| LEDs | |
| Online | 1 (Green) |
| Power | 1 (Orange) |
| Environmental | |
| Operating Temperature | 0-50Β°C |
| Storage Temperature | -20β60Β°C |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.14 kg ( 0.31 lb ) |
| Dimensions (L x W x H) | 9.00 x 4.30 x 2.18 cm (3.54 x 1.69 x 0.86 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
