Description
Model: VE781030

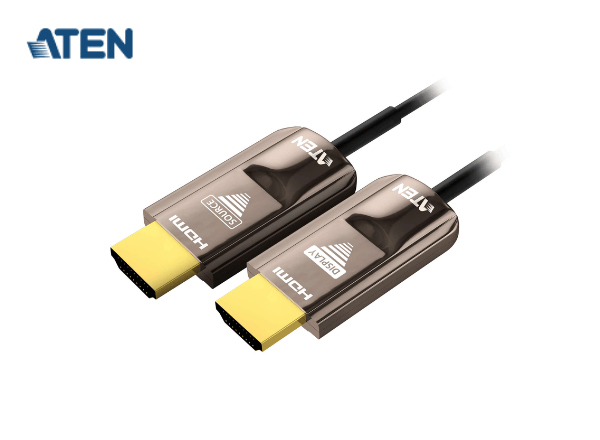

ATEN VE781030 30M True 4K HDMI Active Optical Cable (True 4K@30m)
- Extends True 4Kย signals up to 30m
- Reduced EMI and RFI for lower noise interference
- Gold-plated connectors for reliable transmissions
Overview
ATEN VE781030 True 4Kย HDMI Active Optical Cable utilizes AOC technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables come in 30m with full support ofย True 4K resolutions. It is fully compliant with HDCPย 2.2 standards and meets HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supported Dolby True HD and DTS-HD Master Audio, the optical cables guarantee lossless audio signal transmissions. The VE781030 optical cable is an ideal solution for extending the reach of your digital signage in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.
Package Contents
- 1x VE781030 30M True 4K HDMI Active Optical Cable
- 1x Installation Notice
Features
- Supports resolution up to True 4K (4096 x 2160 @ 60Hz 4:4:4)
- HDMI (3D, Deep Color, True 4K , HDR, ARC); HDCPย 2.2 compliant
- Extendsย True 4K ย signals up to 30m
- Reduced EMI and RFI for lower noise interference
- High data transfer rate of 18 Gbps
- Supports multi audio channel โ Dolby TrueHD and DTS-HD Master Audio
- Robust cable pulling strength (Max.10 kg) and compression load resistance (Max.50 kg)
- Plug-and-play
Specifications
| Cable Length | 30M / 98.4ft |
| Cable Type | Hybrid type with optical fiber (OM3) and copper wire |
| Video Input | |
| Interfaces | 1 x HDMI 19-pin Type-A Male |
| Video Output | |
| Interfaces | 1 x HDMI 19-pin Type-A Male |
| Video | |
| Max. Data Rate | 18 Gbps (6 Gbps per Channel) |
| Max. Pixel Clock | 600 MHz (Max.) |
| Max. Resolutions / Distance | Up to 4096 x 2160 / 3840 x 2160 @60Hz (4:4:4) / 30M *Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0 *Color Depth: 30 / 36 / 48 bit |
| Compliance | HDMI (3D, Deep Color, 4K, HDR, ARC) HDCP 2.2 |
| Communication | |
| Signals | TMDS / HDCP 2.2 / EDID / CEC |
| Audio | |
| Input | PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio |
| Output | PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio |
| Conductor | |
| Construction | 7 x Tinned Copper wire strand 4 x OM3 Optical Fiber (50/125um) |
| Notification | Bend Radius: 20mm (Min.) Compression Load Resistance: Max. 50kg (500N) Cable Filler: Kevlar Cable Marking: ATEN INTERNATIONAL — HIGH SPEED HDMI HYBRID ACTIVE OPTICAL CABLE 4K@60Hz 18Gbps — PVC CE EU RoHS EC ZONE/DEVICE * NO external power required |
| Certifications | |
| Certifications | Safety and Emission: CE / FCC / RoHS / REACH / UL VW-1 EMC Class-A / Class-B |
| Power Consumption | DC5.0V:0.25W:0.05ABTU/h
Note: |
| Jacketed | |
| Material | PVC (85P) Color: Black |
| Environmental | |
| Operating Temperature | 0ยฐC to 50ยฐC (32โ to 122โ) |
| Storage Temperature | -20ยฐC to 70ยฐC (-4โ to 158โ) |
| Humidity | 0 – 85% RH, Non-Condensing |
| Physical Properties | |
| Housing | Connector Case: Zinc Alloy |
| Weight | 0.90 kg ( 1.98 lb ) |
| Cable Outer Dimension | 4.5mm (ยฑ 0.2mm) |
| Carton Lot | 5 pcs |
