Description
Model : Archer AX10

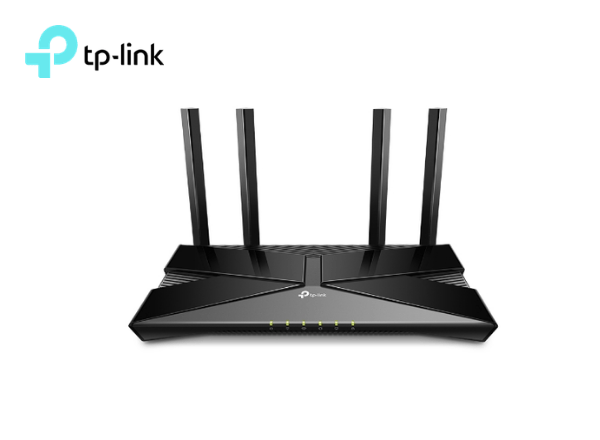

TP-Link AX1500 Wi-Fi 6 Router
Overview
- Wi-Fi 6 Technology—Archer AX10 comes equipped with latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity and reduced network congestion.2 6
- Next-Gen 1.5 Gbps Speeds—Archer AX10 dual-band router reaches fast speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)1
- Connect More Devices than Ever Before—Wi-Fi 6 technology simultaneously communicates more data to more devices using OFDMA and MU-MIMO while reducing lag.3 5
- Triple-Core Processing—The 1.5 GHz tri-core processor ensures communications between your router and all connected devices are smooth and buffer-free.
- More Reliable Coverage—Achieve the strongest, most reliable WiFi coverage with Archer AX10 as it focuses signal strength to your devices using Beamforming technology and 4 antennas.
- Increased Battery Life—Target Wake Time technology reduces your devices’ power consumption to extend their battery life.4
- Easy Setup—Set up your router in minutes with the powerful TP-Link Tether App
- Backward Compatible—Archer AX10 supports all previous 802.11 standards and all WiFi devices
Specifications
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | AX1500 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range | 2-3 Bedroom Houses
4× Fixed High-Performance Antennas Beamforming |
| WiFi Capacity | High
Dual-Band OFDMA Airtime Fairness 4 Streams |
| Working Modes | Router Mode Access Point Mode |
| SECURITY | |
|---|---|
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN PPTP |
| WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
| HARDWARE | |
|---|---|
| Processor | 1.5 GHz Triple-Core CPU |

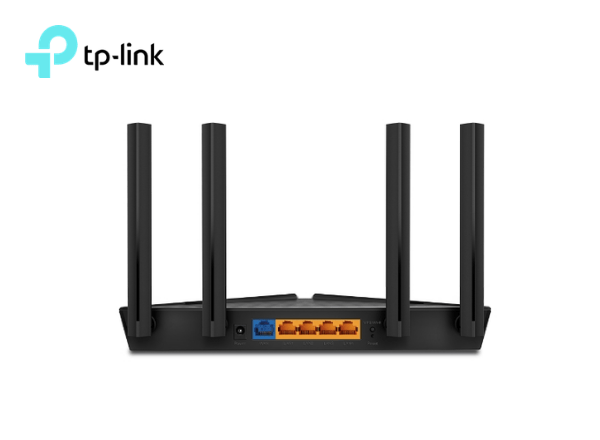

| Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
| Buttons | WPS/Wi-Fi Button Power On/Off Button Reset Button |
| Power | 12 V ⎓ 1 A |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
| EasyMesh | Mesh networking creates smooth, fast, stable roaming. Archer AX10 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability. Learn More> |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management | Tether App Webpage Check Web Emulator> |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
| WiFi Reception Sensitivity | 5 GHz: 11a 6Mbps:-97dBm 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm 11ac VHT20_MCS11:-66dBm 11ac VHT40_MCS0:-94dBm 11ac VHT40_MCS11:-63dBm 11ac VHT80_MCS0:-91dBm 11ac VHT80_MCS11:-60dBm 11ax HE20_MCS0:-95dBm 11ax HE20_MCS11:-63dBm 11ax HE40_MCS0:-92dBm 11ax HE40_MCS11:-60dBm 11ax HE80_MCS0:-89dBm 11ax HE80_MCS11:-58dBm 2.4 GHz: 11g 6Mbps:-91dBm 11a 54Mbps:-74dBm 11n HT20_MCS0:-90dBm 11n HT20_MCS7:-73dBm 11n HT40_MCS0:-88dBm 11n HT40_MCS7:-70dBm |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 10.2 × 5.3 ×1.5 in (260.2 × 135.0 × 38.6 mm) |
| Package Contents | Wi-Fi Router Archer AX10 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
