Description

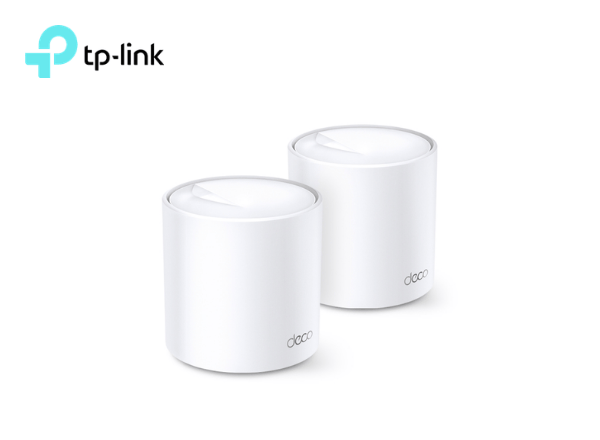

Model: Deco X20(2-pack)
TP-Link AX1800 Whole Home Mesh Wi-Fi 6 System
- Faster Connections: Wi-Fi 6 speeds up to 1,800 Mbps—1,201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
- Connect More Devices: OFDMA and MU-MIMO technology quadruple capacity to enable simultaneous transmission to more devices.
- Boosted Seamless Coverage: Achieve seamless whole home coverage with a clearer and stronger whole home Wi-Fi signal generated by Wi-Fi 6.
- Ultra-Low Latency: Greater reduction in latency enables more responsive gaming and video chatting.
- One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home.
- Total Security: WPA3 encryption and TP-Link HomeCareTM provide personalized features, including Parental Controls, Antivirus, and Quality of Service (QoS) to ensure a safer online experience.
- Setup Made Easier Than Ever: The Deco app walks you through setup step-by-step.
Specifications
| HARDWARE FEATURES | |
|---|---|
| Processor | Qualcomm 1 GHz Quad-core CPU |
| Interface | 2 LAN/WAN Gigabit Ethernet Ports |
| Button | 1 Reset button on the underside |
| Dimensions | Φ4.33 in. × 4.49 in. (Φ110 mm × 114 mm) |
| Antenna | 4 internal antennas per Deco unit |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11 ax/ac/n/a 5 GHz, IEEE 802.11 ax/n/g/b 2.4 GHz |
| Frequency | 5 GHz 2.4 GHz |
| Signal Rate | 1201 Mbps (5 GHz) 574 Mbps (2.4 GHz) |
| Transmit Power | FCC: <30 dBm CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) |
| Wireless Security | WPA-PSK WPA2-PSK WPA3 |
| Advanced Functions | ● Router/ Access Point Mode ● Optional Ethernet Backhaul ● TP-Link Mesh Technology: MU-MIMO OFDMA 1024-QAM BSS Color Auto Path Selection Self-Healing AP Steering Band Steering Beamforming |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | WMM |
| IPv6 | Support |
| WAN Type | Dynamic IP/Static IP/PPPoE |
| Management | Local Management, Remote Management |
| DHCP | Server, Client |
| Port Forwarding | Support |
| Access Control | Blacklist |
| Firewall Security | SPI Firewall |
| Protocols | Supports IPv4 and IPv6 |
| Advanced Features | Homecare: Antivirus Parental Controls Quality of Service |
| Advanced Functions | Speedtest Monthly Usage Reports Auto FW Update Expand Coverage by Adding more decos |
| Guest Network | 2.4 GHz guest network * 1 5 GHz guest network * 1 |
| Beamforming | Support |
| APP | Easy setup by Deco App |
| OTHERS | |
|---|---|
| Certification | CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS |
| Package Contents | ● Deco X20 (1-pack): 1 Deco X20 units 1 RJ45 Ethernet Cable 1 Power Adapters 1 Quick Installation Guide |
| Smartphone/Tablet Requirements | iOS 9.0 or later Android 4.4 or later |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
