Description
Model: EAP653

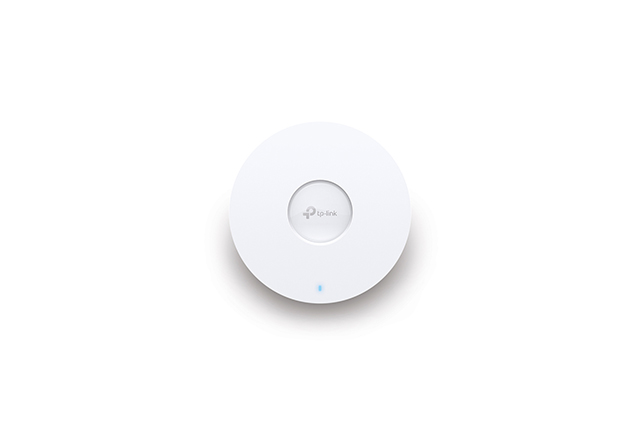

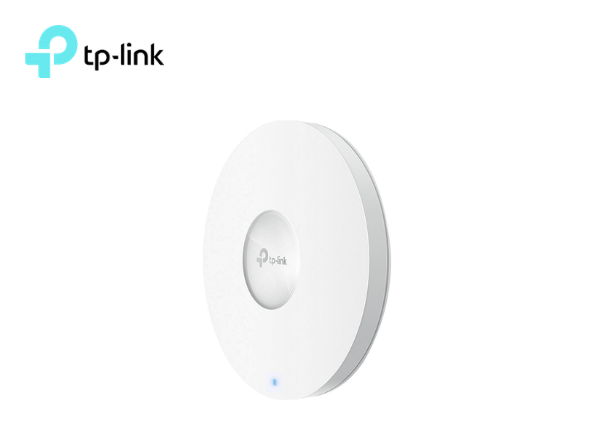

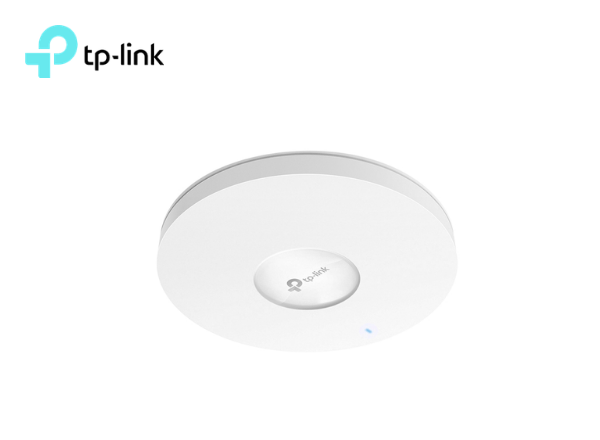

TP-Link AX3000 Ceiling Mount WiFi 6 Access Point
- Ultra-Fast WiFi 6 Speeds:Β Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
- 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.
- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.
- Omada Mesh:Β Enables wireless connectivity between access points for extended range and flexible deployment.
- PoE+ Powered: Supports both 802.3at PoE+ and DC (DC adapter sold separately) power supply for flexible installations.
- Ultra-Slim Design: Ξ¦160 mm Γ 33.6 mm elegant design brings more agility.
Specifications
| HARDWARE FEATURES | |
|---|---|

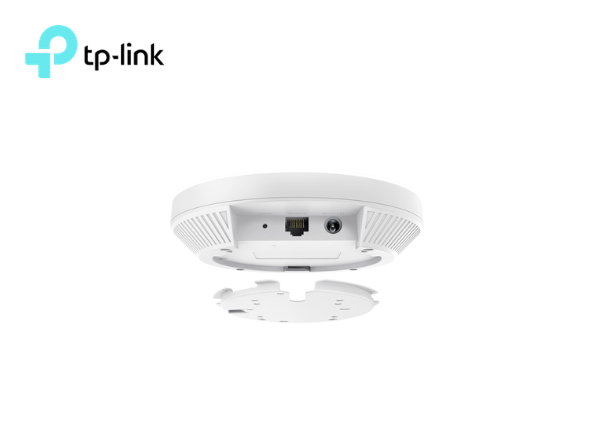

| Interface | 1Γ Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
| Button | Reset |
| Power Supply | β’ 802.3at PoE β’ 12V DC (EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC). Note: DC adapter is not included in the package, and is sold separately β’ 48V Passive PoE |
| Power Consumption | β’ EU: 13.07 W β’ US: 13.98 W |
| Dimensions ( W x D x H ) | 6.3 Γ 6.3 Γ 1.3 in (160 Γ 160 Γ 33.6 mm) |
| Antenna Type | Internal Omni β’ 2.4 GHz: 2Γ 4 dBi β’ 5 GHz: 2Γ 5 dBi |
| Mounting | β’ Ceiling /Wall Mounting (Kits included) β’ Junction Box Mounting |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | β’ 5 GHz: Up to 2402 Mbpsβ β’ 2.4 GHz: Up to 574 Mbpsβ |
| Wireless Functions | ⒠1024-QAM ⒠4à Longer OFDM Symbol ⒠OFDMA ⒠Multiple SSIDs (Up to 16 SSIDs, 8 for each band) ⒠Enable/Disable Wireless Radio ⒠Automatic Channel Assignment ⒠Transmit Power Control (Adjust Transmit Power on dBm) ⒠QoS(WMM) ⒠MU-MIMO ⒠HE160 (160 MHz Bandwidth)①⒠Seamless Roaming § ⒠Omada Mesh§ ⒠Band Steering ⒠Load Balance ⒠Airtime Fairness ⒠Beamforming ⒠Rate Limit ⒠Reboot Schedule ⒠Wireless Schedule ⒠Wireless Statistics based on SSID/AP/Client |
| Wireless Security | ⒠Captive Portal Authentication§ ⒠Access Control ⒠Wireless Mac Address Filtering ⒠Wireless Isolation Between Clients ⒠SSID to VLAN Mapping ⒠Rogue AP Detection ⒠802.1X Support ⒠WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | β’ CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <27 dBm(5 GHz, Band3, EIRP)β’ FCC: <22 dBm (2.4 GHz) <22 dBm (5 GHz) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | β’ Omada Hardware Controller (OC300) β’ Omada Hardware Controller (OC200) β’ Omada Software Controller β’ Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | β’ EAP653 β’ Ceiling/Wall Mounting Kits β’ Installation GuideNote: DC adapter is not included in the package, and is sold separately. |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | β’ Operating Temperature: 0β40 β (32β104 β) β’ Storage Temperature: -40β70 β (-40β158 β) β’ Operating Humidity: 10β90% RH non-condensing β’ Storage Humidity: 5β90% RH non-condensing |
