Description

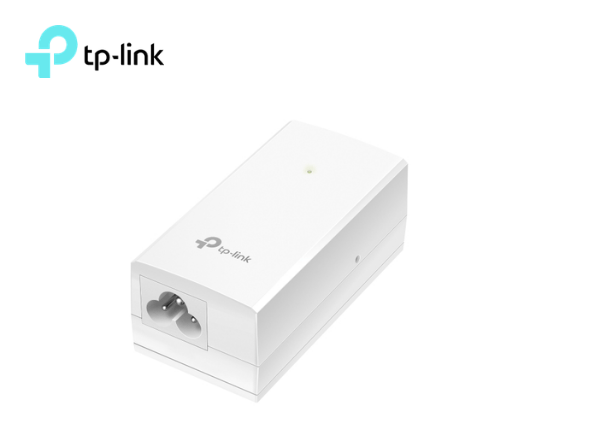

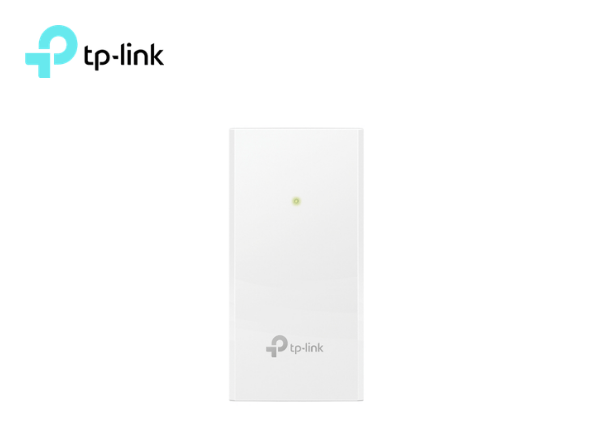

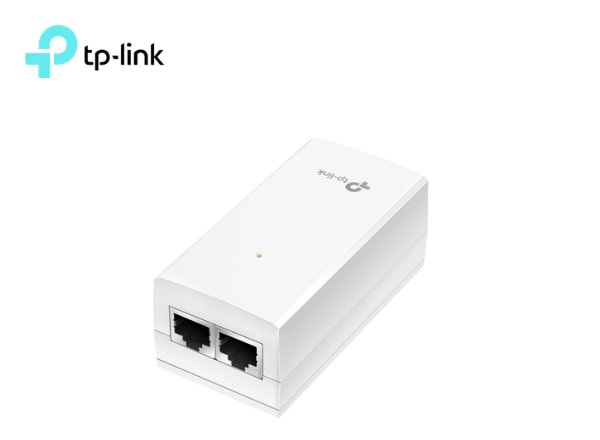

Model: TL-POE2412G
TP-Link Gigabit 24VDC Passive PoE Adapter
Overview
- Gigabit Ethernet ports
- 24VDC passive PoE supported
- Auto-adjusted power dependsΒ on requirements
- Convenient wall-mounting design
- Plug-and-Play,Β no configuration required
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | 2 x 10/100/1000Mbps RJ45 Port AUTO Negotiation/AUTO MDI/MDIX 1 x 24VDC PoE Port |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ξ© STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ξ© STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Power Supply | 12W (Max. 24VDC) |
| LED Indicator | Power (PWR) |
| Dimensions ( W x D x H ) | 3.4 x 1.7 x 1.4 in. ( 85.8mm x 43.9mm x 35mm) |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | 24V, 12W Passive PoE Adapter TL-POE2412G Power Cord Wall Mounting Kits |
| Environment | Operating Temperature: 0β~40β (32β~104β) Storage Temperature: -40β~70β (-40β~158β) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
