$ 18


  • Gigabit Ethernet ports
  • 24VDC passive PoE supported
  • Auto-adjusted power dependsย on requirements
  • Convenient wall-mounting design
  • Plug-and-Play,ย no configuration required
15-08-2022 9:30 AM

Model: TL-POE2412G

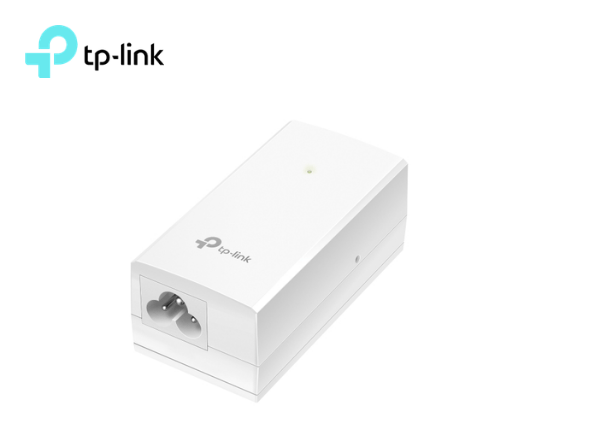

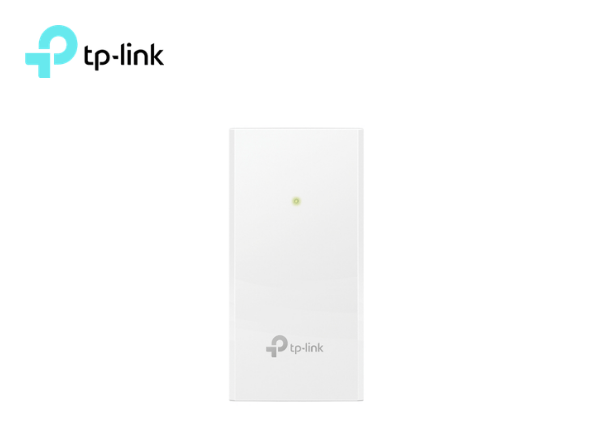

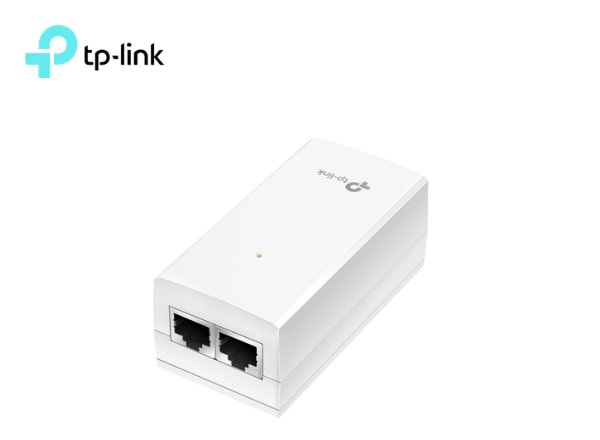

TP-Link Gigabit 24VDC Passive PoE Adapter

Overview

  • Gigabit Ethernet ports
  • 24VDC passive PoE supported
  • Auto-adjusted power dependsย on requirements
  • Convenient wall-mounting design
  • Plug-and-Play,ย no configuration required

Specifications

HARDWARE FEATURES
Interface 2 x 10/100/1000Mbps RJ45 Port AUTO Negotiation/AUTO MDI/MDIX 1 x 24VDC PoE Port
Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100ฮฉ STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100ฮฉ STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Power Supply 12W (Max. 24VDC)
LED Indicator Power (PWR)
Dimensions ( W x D x H ) 3.4 x 1.7 x 1.4 in. ( 85.8mm x 43.9mm x 35mm)
OTHERS
Certification FCC, RoHS
Package Contents 24V, 12W Passive PoE Adapter TL-POE2412G Power Cord Wall Mounting Kits
Environment Operating Temperature: 0โ„ƒ~40โ„ƒ (32โ„‰~104โ„‰) Storage Temperature: -40โ„ƒ~70โ„ƒ (-40โ„‰~158โ„‰) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
