ATEN CS1758Q9 8-Port PS/2-USB VGA/Audio KVM Switch | A199

$225.00

  • One USB console controls 8 computers; Cascadable up to 3 levels – provides up to 512 computers.
  • Superior video quality – up to 2048 x 1536; DDC2B.
  • Computer selection via front panel pushbuttons, hotkeys and OSD.
  • Auto PS/2 and USB interface detection and audio enabled

Description

Model: CS1758Q9

ATEN 8-Port PS/2-USB VGA/Audio KVM Switch

  • One USB console controls 8 computers; Cascadable up to 3 levels – provides up to 512 computers.
  • Superior video quality – up to 2048 x 1536; DDC2B.
  • Computer selection via front panel pushbuttons, hotkeys and OSD.
  • Auto PS/2 and USB interface detection and audio enabled

Overview

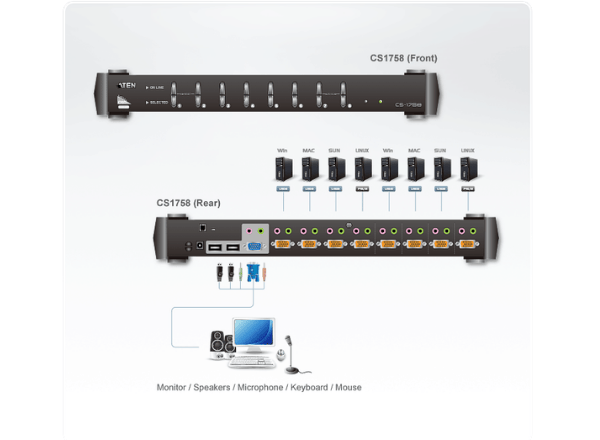

CS1758 is a KVM Switch with 8 ports and supports computers with PS/2 or USB interfaces via cables and audio signal function. Moreover, it supports 3-tier connection via cascade. With 73 sets of CS1758, users can control 512 computers. CS1758 provides growing enterprises a reliable investment on comprehensive connection and long-term safe use.

Features

  • One USB console controls 8 computers.
  • Cascadable up to 3 levels – provides up to 512 computers.
  • Dual interface supports with computers with PS/2 or USB keyboards and mice.
  • Multiplatform support: compatible with all operation platforms PC (Windows,Linux and most others), Mac and Sun.
  • Auto PS/2 and USB interface detection.
  • Buzzer On/Off via hotkey and OSD.
  • Computer selection via front panel pushbuttons, hotkeys and OSD.
  • Superior video quality – up to 2048 x 1536; DDC2B.
  • Firmware upgradable.
  • With speaker and microphone support.
  • ATEN USB ASIC inside.
  • Available in silver and black.
  • Rack mountable in 19 system rack.
  • Multiplatform support: Windows 2000/XP/Vista, Linux, Mac, Unix, Sun and FreeBSD.
  • For more information about KVMs which can connect to CS1758, see Compatible KVM Table.

Specifications

Computer Connections
Direct 8
Maximum 512 (via Cascade)
Port Selection OSD, Hotkey, Pushbutton
Connectors
Console Ports 1 x HDB-15 Female (Blue)
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
1 x 3.5mm Audio Jack Female (Pink)

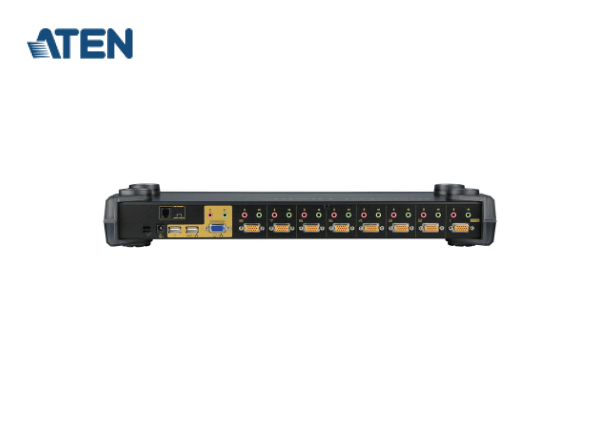

KVM Ports 8 x SPHD-15 Female (Yellow)
8 x 3.5mm Audio Jack Female (Green)
8 x 3.5mm Audio Jack Female (Pink)
Firmware Upgrade 1 x RJ-11 Female
Power 1 x DC Jack (Black)
Switches
Ports 4 x Pushbutton
Firmware Upgrade 1 x Slide
Reset 1 x Semi-recessed Pushbutoon
LEDs
Online 8 (Orange)
Selected 8 (Green)
Power 1 (Blue)
Emulation
Keyboard / Mouse USB
Video 2048 x 1536; DDC2B
Scan Interval 1-255 seconds (default: 5 secs.)
Power Consumption DC 5.0V, 3.4W
Environmental
Operating Temperature 0-50˚C
Storage Temperature -20-60˚C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 2.72 kg ( 5.99 lb )
Dimensions (L x W x H) 43.72 x 16.10 x 4.40 cm
(17.21 x 6.34 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
