$ 59


  • Up to 150Mbps on 5GHz wireless data rates
  • 23dBi high-gain directionalย antenna and a dedicated metal reflector, ideal for long-distance application
  • Excellent beam directivity, improved latency and noise cancellation
  • Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE605ย stable even in strong winds
  • Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
  • TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
03-08-2022 4:46 PM

Model: CPE605

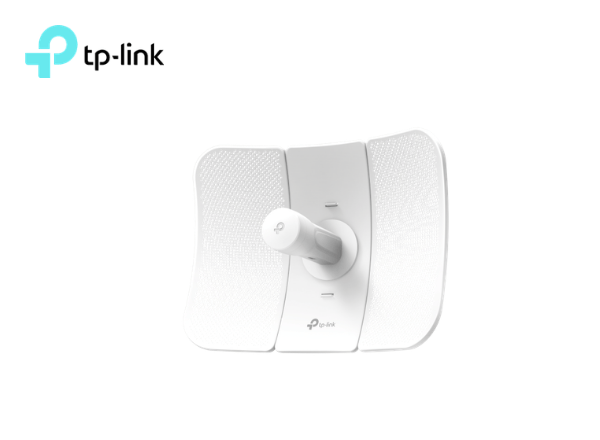

TP-Link 5GHz 150Mbps 23dBi Outdoor CPE

Overview

  • Up to 150Mbps on 5GHz wireless data rates
  • 23dBi high-gain directionalย antenna and a dedicated metal reflector, ideal for long-distance application
  • Excellent beam directivity, improved latency and noise cancellation

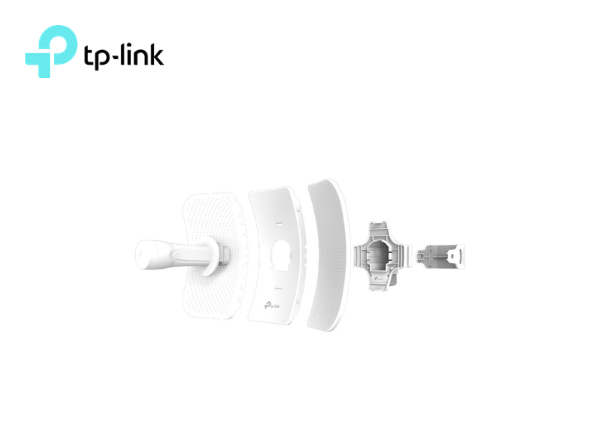

  • Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE605ย stable even in strong winds
  • Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
  • TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
  • Pharos Control gives administrators a free, centralized management system
  • Passive PoE supports to allow flexible deployment and convenient installation

Specifications

HARDWARE FEATURES
Processor Qualcomm 560MHz CPU, MIPS 74Kc
Memory 64MB DDR2 RAM,8MB Flash
Interface 1 10/100Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button
Power Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27VDC
Dimensions ( W x D x H ) 350 x 255 x 207 mm (13.8 x 10.0 x 8.1 in.)
Antenna Gain 23dBi
Antenna Beamwidth 7ยฐ(Azimuth), 10ยฐ(Elevation)
Protection 15KV ESD Protection 6KV Lightning Protection
Enclosure Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds Up to 150Mbps (40MHz,Dynamic) Up to 72.2Mbps (20MHz,Dynamic) Up to 36.1Mbps (10MHz,Dynamic) Up to 18.05Mbps (5MHz,Dynamic)
Frequency 5.15~5.85GHz
Transmit Power Max. 23dBm (Adjustable power by 1dBm)
SOFTWARE FEATURES
IPv6 Yes
Network Configuration WAN: Static/Dynamic/PPPoE/L2TP/PPTP LAN: Static/Dynamic/DHCP Forwarding: ALG/UPnP/Virtual Server/Port Trigger Security: SPI Firewall/ Ping Forbidden/DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding
Wireless Configurations Pharos MAXtream TDMA Technology Selectable Channel Width: 5/10/20/40MHz Auto Channel Selection Transmit Power Control Dynamic Frequency Selection(DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging(AP Mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server
System Tools Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute
System-level Optimizations Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog
POE ADAPTER FEATURES
Dimensions(W x D x H) 85.8ร—43.9ร—29.7 mm
Interfaces 1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data)
Button Remote Reset Button
Power Status LEDs Green
Input 100-240VAC, 50/60Hz
Output 24VDC, 0.6A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency >84.29%
Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
OTHERS
Certification CE, FCC, RoHS, IP65
Package Contents Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vistaโ„ข or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment Operating Temperature: -40โ„ƒ~70โ„ƒ (-40โ„‰~158โ„‰) Storage Temperature: -40โ„ƒ~70โ„ƒ (-40โ„‰~158โ„‰) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing
