Description
Model: CS533

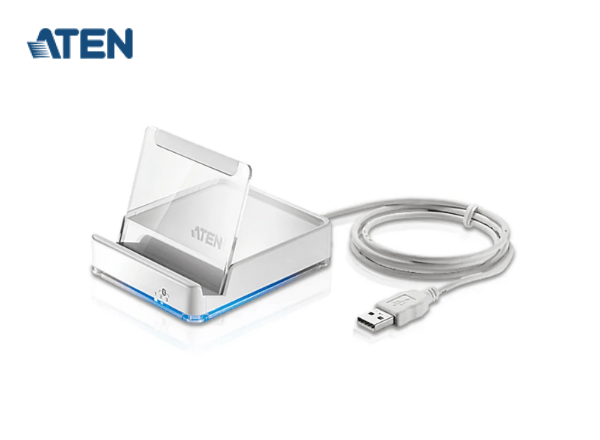

ATENΒ Tap (USB to Bluetooth KM Switch)
- Links use of a USB keyboard and mouse* between a PC and 2 Bluetooth devices
- Quick switch access to the computer and Bluetooth devices via hotkey
- Supports PC and Mac iOS Bluetooth media key mapping
- Supports wireless and multifunction keyboards
Overview

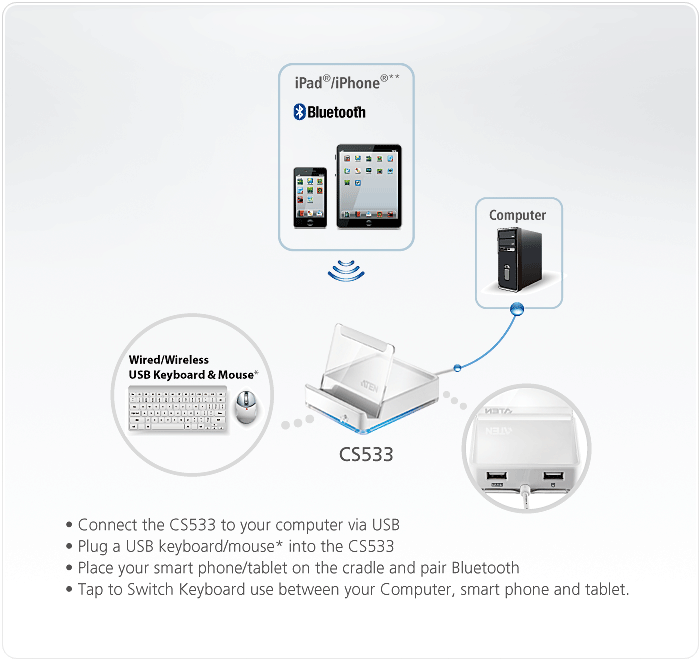

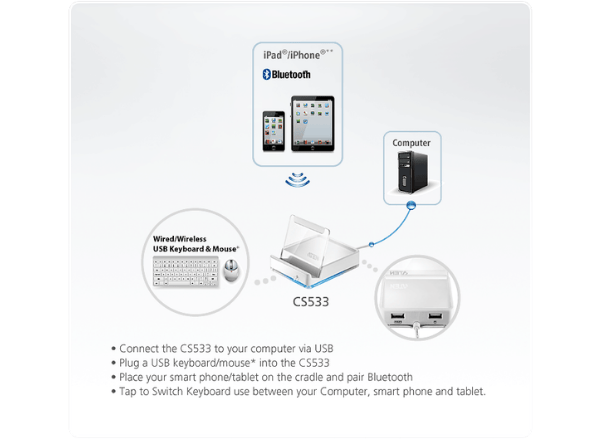

The CS533 Tap is a control unit that allows access to one computer and two Bluetooth devices from a USB keyboard and mouse. The CS533 Tap converts normal USB keyboard and mouse signals into Bluetooth connections to allow for easy sharing between your computer and bluetooth devices.
The CS533 Tap eliminates the need to purchase a Bluetooth keyboard or mouse for your bluetooth devices, saving you valuable work space, allowing you to use your favorite multimedia keyboard with all your Bluetooth devices.
Features
- Links use of a USB keyboard and mouse* between a PC and 2 Bluetooth devices
- Quick switch access to the computer and Bluetooth devices via hotkey
- Supports PC and Mac iOS Bluetooth media key mapping
- Supports wireless and multifunction keyboards
- Mac keyboard support and emulation**
- USB Keyboard/Mouse pass-thru supports: Windows 2000/XP /Vista /7, Mac and Linux
- Bluetooth signals supports: Windows 2000/XP /Vista /7, Mac OS X and iOS
- USB powered
- Firmware upgradable
- No software required
Specifications
| PC / Bluetooth Connections | 1/2 |
| Port Selection | Hotkey |
| Connectors | |

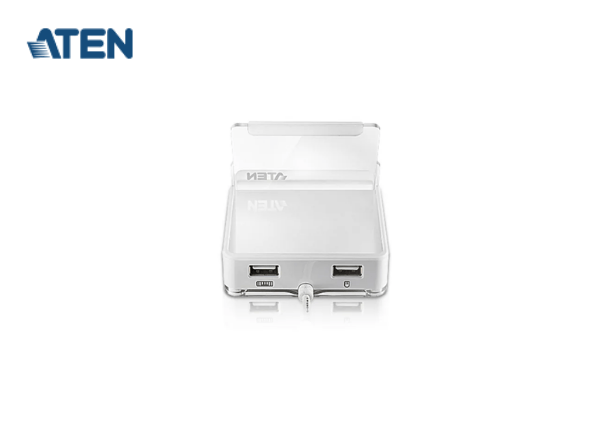

| Keyboard | 1 x USB Type A Female (White) |
| Mouse | 1 x USB Type A Female (White) |
| Power | 1 x USB Type A Male (White) |
| Cable Length | |
| Computer | 1.8 m |
| LEDs | |
| Bluetooth Selected | 2 (Blue) |
| Emulation | USB Bluetooth V2.1, Class 2 |
| Environmental | |
| Operating Temperature | 0Β βΒ 50Β°C |
| Storage Temperature | -20Β βΒ Β 60Β°C |
| Humidity | 0βΒ 80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.12 kg ( 0.26 lb ) |
| Dimensions (L x W x H) | 9.20 x 7.80 x 2.46 cm (3.62 x 3.07 x 0.97 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
