$ 22


  • 9dBi directional operation provides extended point to point connection
  • Features 100cm(39.4 in) CFD-200 low loss cable for flexible deployment
  • RP-SMA Male connector, works with most of access points / wireless routers
  • Provides easy installation mounting kits
16-08-2022 1:54 PM

Model: TL-ANT2409A

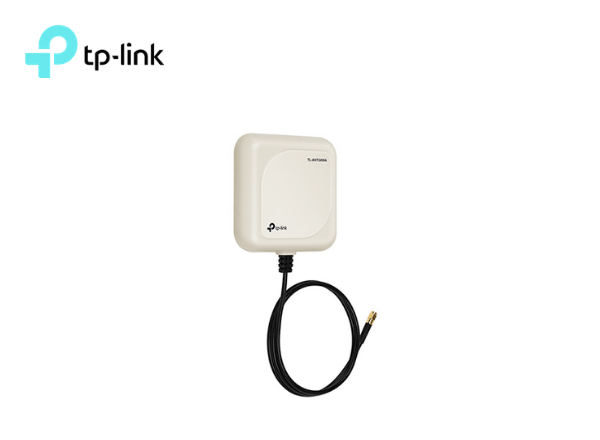

TP-Link 2.4GHz 9dBi Directional Antenna

Features

  • 9dBi directional operation provides extended point to point connection or indoor and outdoor area coverage
  • Features 100cm(39.4 in) CFD-200 low loss cable for flexible deployment
  • RP-SMA Male connector, works with most of access points / wireless routers
  • Provides easy installation mounting kits

Specifications

Frequency 2.4GHz
Gain 9dBi
VSWR(MAX.) 1.5:1
HPOL Beamwidth 60
VPOL Beamwidth 76
Polarization Linear; Vertical
Type Directional
Connector Type RP-SMA Female
Extended Cable/Length CFD-200 ; 100cm
Mounting Pole Mount/Wall Mount
Application Outdoor
Approximate Range at 1/11/54Mbps 1.77km/1km/140m
Operating Temp. -20 ~ 65
Storage Temp. -30 ~ 75
Optional Accessory TL-ANT24EC3S TL-ANT24EC5S
Package Contents 9dBi Panel Directional Antenna Installation mounting kits User Guide
