Description
Model: TL-SG1005P

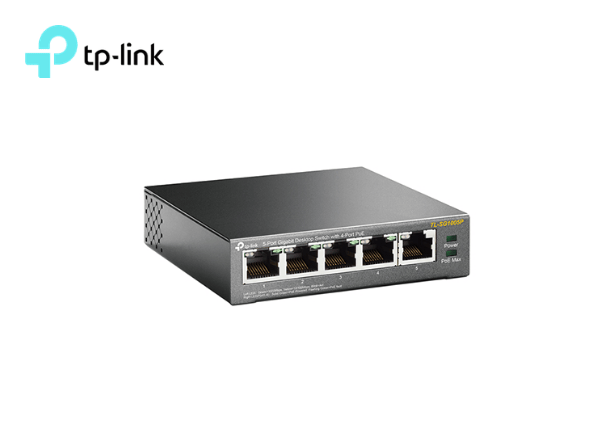

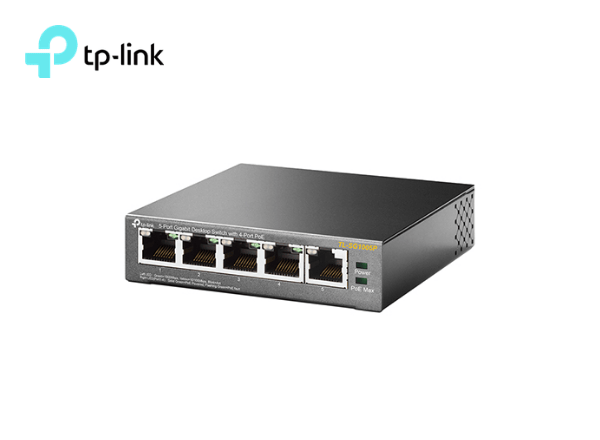

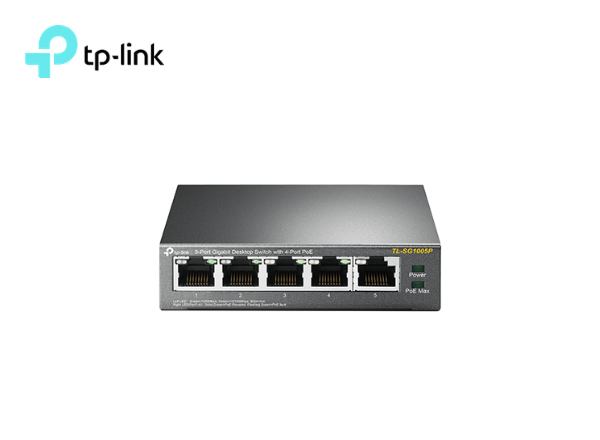

TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+
Overview
- 5× 10/100/1000 Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for all PoE ports
- Requires no configuration and installation
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | • 5× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 54 VDC / 1.3 A) |
| Packet Forwarding Rate | 7.44 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 65 W |
| Mac Address Table | 2K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 10 Gbps |
| Dimensions ( W x D x H ) | 3.9 × 3.9 × 1.0 in. (99 × 98 × 25 mm) |
| Max Power Consumption | • 4.3 W (without power device connected) • 74.2 W (with 65W power devices connected) |
| Max Heat Dissipation | • 14.6 BTU/h (no PD connected) • 253.2 BTU/h (with 65 W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | • Compatible with IEEE 802.3af/at compliant power devices • MAC address auto-learning and auto-aging • IEEE 802.3x flow control • 802.1p/DSCP QoS • IGMP snooping |
| Transfer Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | • TL-SG1005P • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
