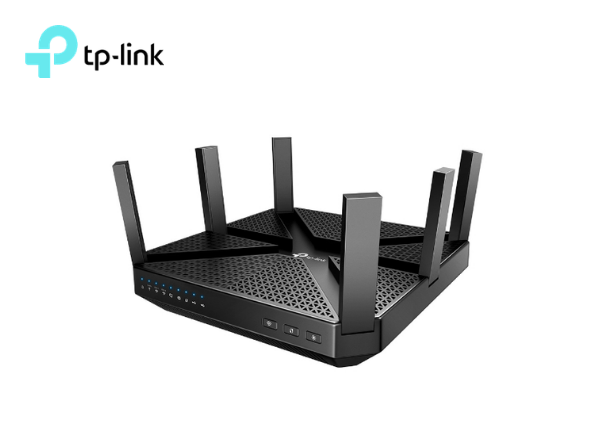

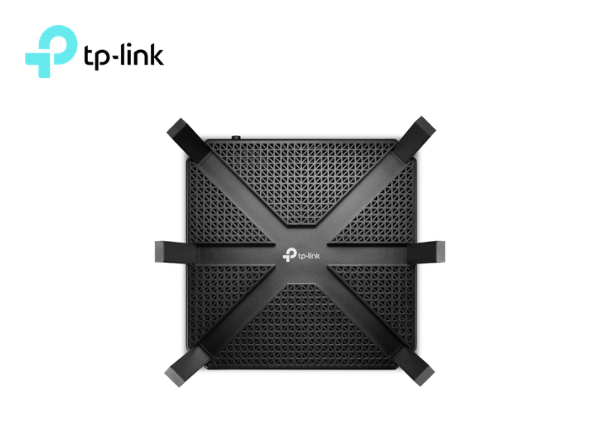

TP-Link Archer C4000 AC4000 MU-MIMO Tri-Band Wi-Fi Router

$ 177

Ultra-Fast Processing: A 1.8 GHz 64-bit CPU handles all
4000 Mbps WiFi Speed: 1625 Mbps on both 5 GHz bands and 750 Mbps on 2.4 GHz band*
No More Buffering: MU-MIMO and Tri-Band enable the router to connect more devices at the same time**
Far-Reaching Range: RangeBoost technology boosts WiFi to farther coverage and Beamforming focuses signal to connected devices
Secure Your Network: HomeCare protects your network from malicious attack and you can manage who and how to access the network

11-08-2022 9:52 AM

Model: Archer C4000

TP-Link AC4000 MU-MIMO Tri-Band WiFi Router

Overview

Ultra-Fast Processing: A 1.8 GHz 64-bit CPU handles all
4000 Mbps WiFi Speed: 1625 Mbps on both 5 GHz bands and 750 Mbps on 2.4 GHz band*
No More Buffering: MU-MIMO and Tri-Band enable the router to connect more devices at the same time**
Far-Reaching Range: RangeBoost technology boosts WiFi to farther coverage and Beamforming focuses signal to connected devices
Secure Your Network: HomeCare protects your network from malicious attack and you can manage who and how to access the network
Easy Setup: With intuitive Phone UI or Tether app, your network is ready to go within a minute
Gigabit Wired Speeds: 1 WAN and 4 LAN gigabit ports bring wired speeds to the maximum and Link Aggregation even doubles it to 2 Gbps.

Specifications

WIRELESS
Standards	Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds	AC4000 5 GHz: 1625 Mbps (802.11ac) 5 GHz: 1625 Mbps (802.11ac) 2.4 GHz: 750 Mbps (802.11n)
WiFi Range	4 Bedroom Houses 6× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity	High Tri-Band Allocate devices to different bands for optimal performance 3×3 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients Airtime Fairness Improves network efficiency by limiting excessive occupation
Working Modes	Router Mode Access Point Mode

SECURITY
Network Security	SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeCare™ Antivirus Malicious Site Checker Port Intrusion Prevention Infected Device Isolation Notification and Log
Guest Network	1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
VPN Server	OpenVPN PPTP
WiFi Encryption	WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x)

HARDWARE
Processor	1.8 GHz Dual-Core CPU

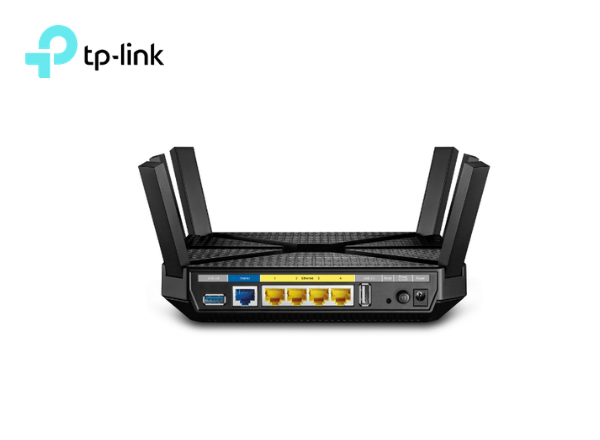

Ethernet Ports	1× Gigabit WAN Port 4× Gigabit LAN Ports Link Aggregation (802.3ad) available with 2× LAN ports
USB Support	1× USB 3.0 Port 1× USB 2.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server
Buttons	Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button
Power	12 V ⎓ 5 A

SOFTWARE
Protocols	IPv4 IPv6
Service Kits	HomeCare™ Learn More>
Parental Controls	HomeCare™ Parental Controls Custom Profiles Content Filtering App Block URL Filtering Time Limit Time Schedule (Bedtime) Log Insight
WAN Types	Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service	QoS by Device HomeCare™ QoS QoS by Application
Cloud Service	Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding Port Triggering DMZ UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link NO-IP DynDNS
Management	Tether App Webpage Check Web Emulator>

OTHER
System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Certifications	FCC, CE, RoHS
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

TEST DATA
WiFi Transmission Power	CE: <20dBm(2.4GHz) <23dBm(5.15GHz~5.35GHz) <30dBm(5.47GHz~5.725GHz) FCC: <30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz) <24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)
WiFi Reception Sensitivity	5 GHz_1: 11a 6Mbps：-96dBm, 11a 54Mbps:-78dBm 11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm 11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm 11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm 11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm 11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm 11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm 11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm 11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm 5 GHz_2: 11a 6Mbps：-96dBm, 11a 54Mbps:-78dBm 11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm 11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm 11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm 11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm 11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm 11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm 11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm 11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm 2.4 GHz： 11g 6Mbps：-97dBm, 11a 54Mbps:-79dBm 11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm 11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm

TEST DATA

WiFi Transmission Power

CE: <20dBm(2.4GHz) <23dBm(5.15GHz~5.35GHz) <30dBm(5.47GHz~5.725GHz) FCC: <30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz) <24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)

WiFi Reception Sensitivity

5 GHz_1: 11a 6Mbps：-96dBm, 11a 54Mbps:-78dBm 11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm 11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm 11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm 11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm 11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm 11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm 11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm 11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm 5 GHz_2: 11a 6Mbps：-96dBm, 11a 54Mbps:-78dBm 11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm 11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm 11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm 11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm 11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm 11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm 11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm 11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm 2.4 GHz： 11g 6Mbps：-97dBm, 11a 54Mbps:-79dBm 11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm 11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm

PHYSICAL
Dimensions (W×D×H)	7.9 × 7.9 × 1.5 in (200.7 × 200.7 × 38.1 mm)
Package Contents	Wi-Fi Router Archer C4000 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
