TP-Link EAP115-Bridge KIT Omada Wireless Bridge 5 GHz 300 Mbps Long-Range Indoor/Outdoor Access Point | T63
TP-Link EAP115-Bridge KIT Omada Wireless Bridge 5 GHz 300 Mbps Long-Range Indoor/Outdoor Access Point | T63 - Image 2
TP-Link EAP115-Bridge KIT Omada Wireless Bridge 5 GHz 300 Mbps Long-Range Indoor/Outdoor Access Point | T63 - Image 3
TP-Link EAP115-Bridge KIT Omada Wireless Bridge 5 GHz 300 Mbps Long-Range Indoor/Outdoor Access Point | T63 - Image 4

TP-Link EAP115-Bridge KIT Omada Wireless Bridge 5 GHz 300 Mbps Long-Range Indoor/Outdoor Access Point | T63

$79.00

  • 802.11n for up to 300 Mbps on the 5 GHz wireless data rate.*1
  • Ideal for long-range wireless transmission up to 5 km.*2
  • Auto-pairing and agile LEDs for efficient deployment.
  • 3× 10/100 Mbps Ethernet ports for more high-speed IP camera connections.*6
  • Supports Omada SDN for remote and centralized management.
  • IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.*3

Available on backorder

Categories: , ,

Description

Model: EAP115-Bridge KIT

TP-Link Omada Wireless Bridge 5 GHz 300 Mbps Long-Range Indoor/Outdoor Access Point

Overview

  • 802.11n for up to 300 Mbps on the 5 GHz wireless data rate.*1
  • Ideal for long-range wireless transmission up to 5 km.*2
  • Auto-pairing and agile LEDs for efficient deployment.
  • 3× 10/100 Mbps Ethernet ports for more high-speed IP camera connections.*6
  • Supports Omada SDN for remote and centralized management.
  • IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.*3
  • Supports Passive PoE for flexible deployment (adapter included).

Specifications

HARDWARE FEATURES

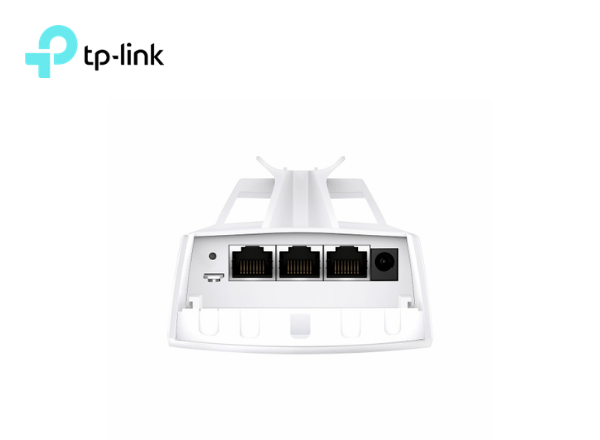

Interface 3x 10/100 Mbps Ethernet Ports*6
Button Reset
Power Supply 12V DC / 24V Passive PoE (Passive PoE adapter included.)
Max. Power Consumption 6.5W
Dimensions ( W x D x H ) 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm)
Antenna Internal 2×2 Dual-polarized directional MIMO antennas
5 GHz: 11.0 dBi
Horizontal:35°, Vertical: 35°
Weatherproof Enclosure IP65

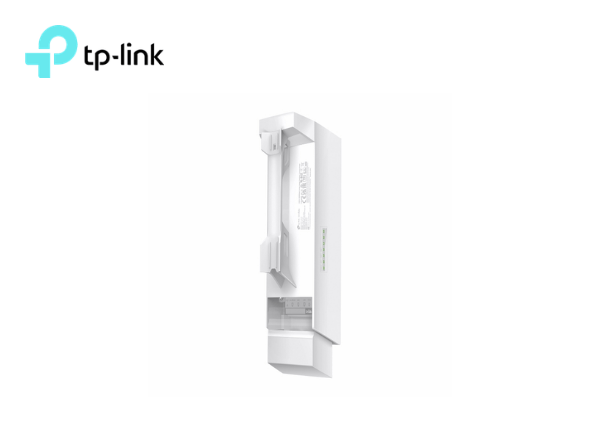

Mounting Pole mounting (Accessories included)
WIRELESS FEATURES
Coverage 5000m(16400ft)5
Wireless Standards IEEE 802.11 a/b/g/n
Frequency 5 GHz
Signal Rate 5 GHz: Up to 300 Mbps
Wireless Functions • Mesh*4
• Load Balance
• Beamforming
• Airtime Fairness
• Seamless Roaming(802.11r)
• Multiple SSIDs:8
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP/Dynamic IP
Wireless Security • VLAN
• Access Control
• Rogue AP Detection
• Captive Portal Authentication*4
• Maximum number of MAC Filter: 4,000
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise
Transmission Power • CE:
<23dBm (5 GHz, band 1/2, EIRP);
<30dBm (5 GHz band3, EIRP);

• FCC:
<22dBm (5 GHz band1/4)
Management Features
Omada App Yes
Restore & Backup Yes
Firmware update via Web Yes
NTP Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
SSH Yes
Web-based Management Yes
OTHERS
Certification CE, FCC, RoHS
Package Content • EAP115-Bridge KIT
• Passive PoE Adapter
• Power Cord
• Installation Guide
• Mounting Kit
Environment • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing
