Description
Model: EAP625-Outdoor HD

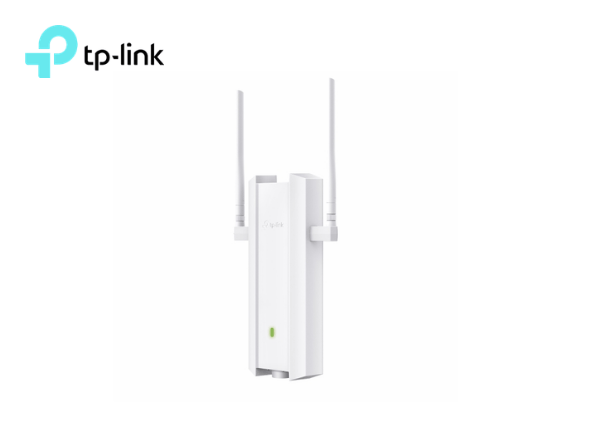

TP-Link AX1800 Indoor/Outdoor Wi-Fi 6 Access Point
Overview
- Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz.*1
- Supports WiFi 6 technologies, such as 1024-QAM, OFDMA, etc.*2
- High-density connectivity up to 1,000+ clients.*3
- Long-range coverage with the high-power amplifier and 2× detachable antennas.
- IP68 weatherproof enclosure for various outdoor environments.
- Advanced Functions: Centralized management, Omada mesh, and seamless roaming.*4
- PoE+ Powered: Supports both 802.3at PoE and 48V Passive PoE (adapter not included).
Specifications
| HARDWARE FEATURES | |||
| Interface | 1x Gigabit Ethernet Port | ||
| Button | Reset | ||
| Power Supply | • 802.3at PoE • 48V Passive PoENote: PoE adapter is not included. |
||
| Max. Power Consumption | 14.7W (802.3at PoE or Passive PoE) | ||
| Dimensions ( W x D x H ) | 7.2 × 2.2 × 11.1 in (182.2 × 57 × 281 mm)*5 | ||
| Antenna | 2× External Dual-Band Omni Antennas • 2.4 GHz: 3.0 dBi; • 5 GHz: 5.0 dBi |
||
| Bluetooth | V5.2 | ||
| Weatherproof Enclosure | IP68 | ||
| Mounting | Pole/Wall Mounting (Kits included) | ||
| WIRELESS FEATURES | |||
| Concurrent Clients | 1,020+3 | ||
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax | ||
| Frequency | 5 GHz, and 2.4 GHz | ||
| Signal Rate | • 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps |
||
| Wireless Functions | • Mesh*4 • Seamless Roaming(802.11k/v/r)*4 • Automatic Channel Assignment • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDs:16 (8 for each band) • MU-MIMO (2×2 MU-MIMO DL) • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP |
||
| Wireless Security | • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication*4 • Maximum number of MAC Filter: 4,000 • Wireless Isolation between Clients • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise • 802.1X Support |
||
| Transmission Power | • CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP); • FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz) |
||
| Management Features | |||
| Omada App | Yes | ||
| Restore & Backup | Yes | ||
| Firmware update via Web | Yes | ||
| NTP | Yes | ||
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
||
| Cloud Access | Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. | ||
| Email Alerts | Yes | ||
| LED ON/OFF Control | Yes | ||
| Management MAC Access Control | Yes | ||
| SNMP | v1, v2c, v3 | ||
| SSH | Yes | ||
| Web-based Management | Yes | ||
| OTHERS | |||
| Certification | CE, FCC, RoHS | ||
| Package Content | • EAP625-Outdoor HD • 2× Detachable Antennas • Installation Guide • Mounting Kit • Waterproof Kit |
||
| Environment | • Operating Temperature: -30 °C–70 °C (-22 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
||
