Description
Model: LS1016G

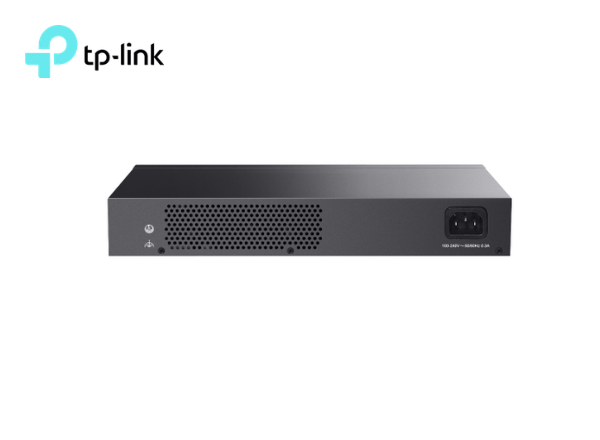

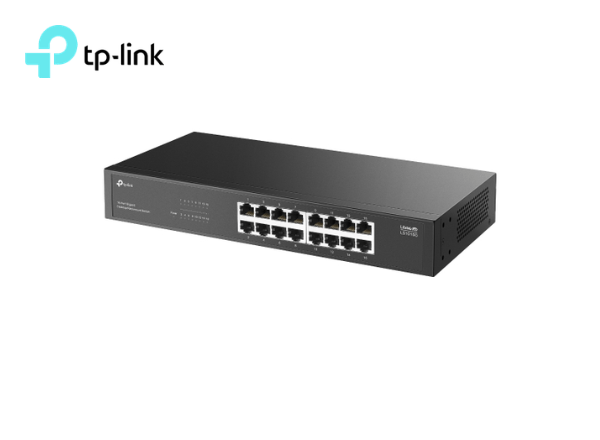

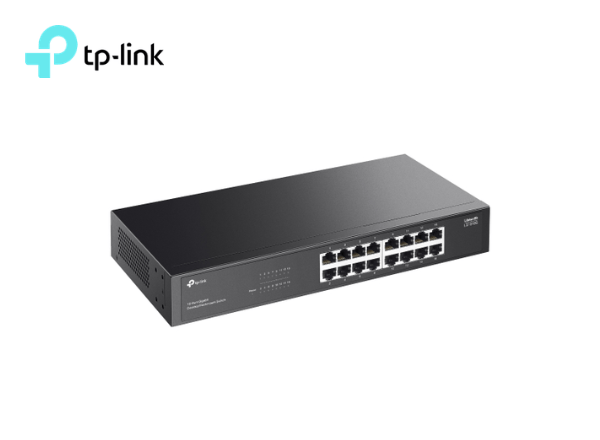

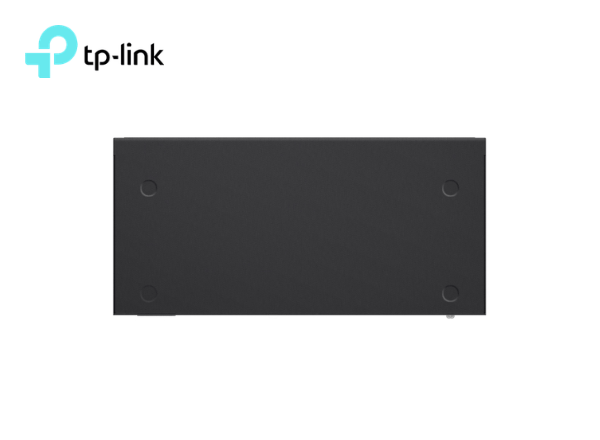

TP-Link 16-Port Gigabit Desktop/Rackmount Switch

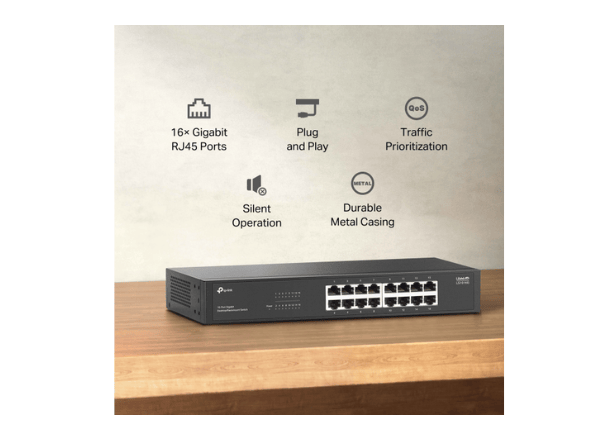

Overview
- 16× 10/100/1000Mbps ports
- Supports MAC address self-learning, Auto MDI/MDIX and Auto Negotiation
- Plug & play design
- QoS ensures smooth traffic for latency sensitive applications such as voice or video
- Innovative energy-efficient technology saves power consumption
- Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses
- Durable metal casing provides improved heat dissipation and ensures a longer product life
- Desktop or rackmount installation
Specifications
| Standards and Protocols | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3p |
|---|---|
| Interface | 16× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX: UTP category 5 or above cable (maximum 100m) • 1000BASE-T: UTP category 5e or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | 100-240V~50/60Hz, 0.3A |
| Dimensions ( W x D x H ) | 11.6 × 5.5 × 1.7 in. (294 × 140 × 44 mm) |
| Max. Power Consumption | 7.2 W (110V/60Hz) |
| Max. Heat Dissipation | 24.42 BTU/h (110V/60Hz) |
| Switching Capacity | 32 Gbps |
|---|---|
| Packet Forwarding Rate | 23.808 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 15 KB |
| Green Technology | Yes |
| Transmission Method | Store-and-Forward |
| Certification | FCC, CE, RoHs |
|---|---|
| Package Content | 16-Port Gigabit Desktop/Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet |
| Environment | Operating Temperature: 0℃~50℃ (32℉~122℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
