Description
Model: SM6110-SR

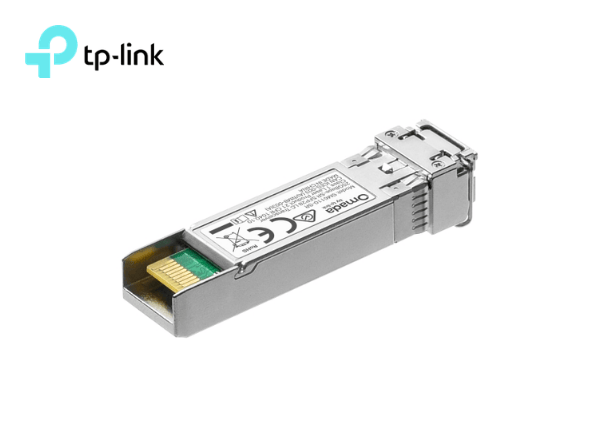

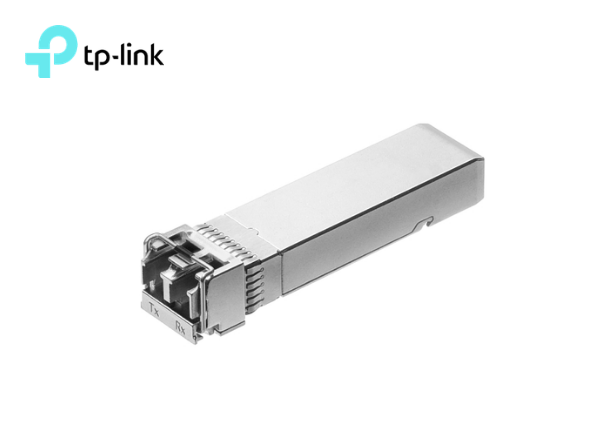

TP-Link Omada 25GBase-SR SFP28 LC Transceiver
Overview
- Multi-mode SFP+/SFP28 LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Low Power Consumption no more than 1 W
- Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
- Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.
Specifications
| Transceiver | |
|---|---|
| Standards and Protocols | β’ IEEE 802.3ae, 802.3by β’ SFF-8402, SFF-8431, SFF-8432, SFF-8472 β’ eCPRI, CPRI β’ TCP/IP |
| Wave Length | 850nm |
| Power Supply | 3.3V |
| Fiber Type | 50/125um or 62.5/125um Multi-mode |
| Max. Cable Length | 70m (OM3) @25.78Gbps, 100m (OM4) @25.78Gbps, 300m (OM3) @10.31Gbps |

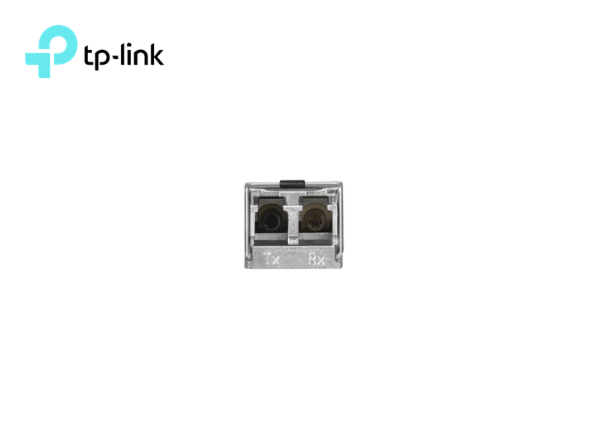

| Connector | Duplex LC/UPC |
| Regulatory Compliance | CE, FCC, RoHS |
| Environment | β’ Operating Temperature: 0Β°C to 70Β°C (32β158 β) β’ Storage Temperature: -40Β°C to 85Β°C (-40Β°F to 185Β°F) β’ Operating Humidity: 10% to 90% RH non-condensing β’ Storage Humidity: 5% to 90% RH non-condensing |
| HARDWARE FEATURES | |
|---|---|
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| Dimensions ( W x D x H ) | 2.24*0.55*0.53 in (57*14*13.45 mm) |
| Package Content | |
|---|---|
| Package Content | β’ SM6110-SR β’ Installation Guide |
| SFP28 Cable | |
|---|---|
| Data Rate | Dual Rate 25.78 Gbps and 10.31 Gbps |
