Description
Model: TL-POE4818G

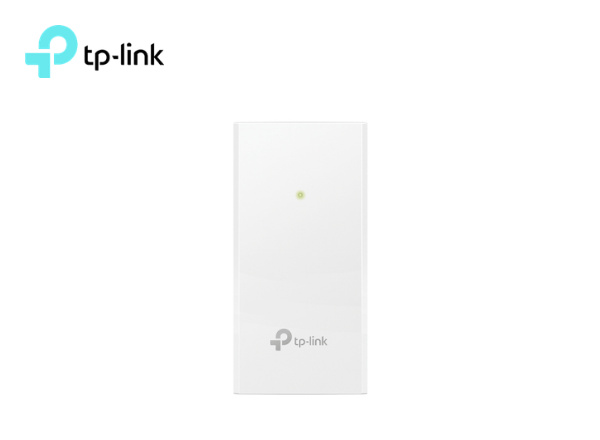

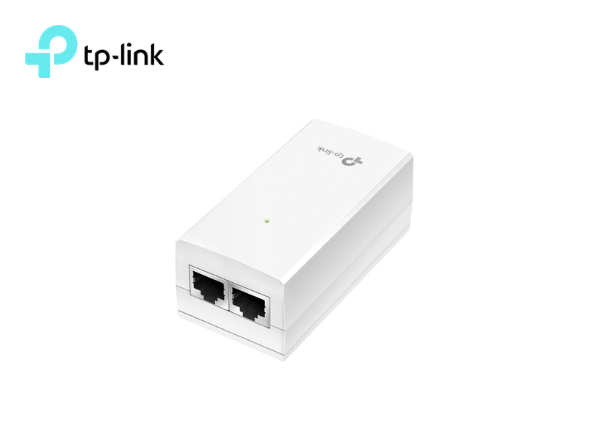

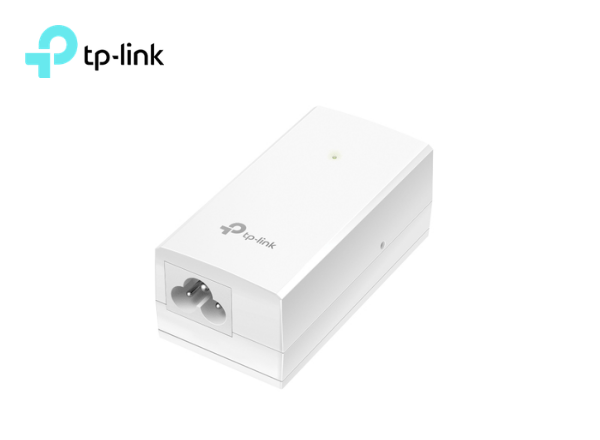

TP-Link 48V Passive PoE Adapter
Overview
- 48V Passive PoE supported
- Auto-determine the necessary power requirements
- Convenient wall-mounting design
- Gigabit speed support
- Plug-and-Play, requires no configuration
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | 1 10/100/1000Mbps RJ45 Shielded Data IN Port 1 10/100/1000Mbps RJ45 Shielded Passive PoE Port 1 100~240V / 50~60Hz AC Power Input Port |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ξ© STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ξ© STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| LED Indicator | PWR |
| Dimensions ( W x D x H ) | 3.4 Γ 1.7 Γ 1.4 in. (85.8 Γ 43.9 Γ 35.0 mm) |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | 48V 18W Passive PoE Adapter TL-POE4818G Power Cord Wall Mounting Kits |
| Environment | Operating Temperature: 0β~40β (32β~104β) Storage Temperature: -40β~70β (-40β~158β) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
