Model: TL-WR1502X
TP-Link AX1500 Wi-Fi 6 Travel Router
Overview

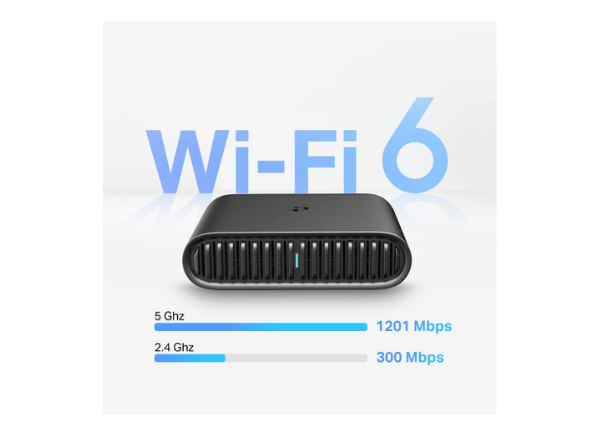

- Faster Dual-Band AX1500 WiFi 6: Reaches incredible speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band) for no-lag AR/VR gaming, uninterrupted 4K streaming, and smooth video calls.†‡
- 24/7 Secure Surfing with VPN Encryption: Supporting OpenVPN and WireGuard®, TL-WR1502X can keep your network private and secure from anywhere in the world, whether you‘re working remotely abroad, or browsing on the public WiFi.
- Enjoy Reliable Network Anywhere: With versatile modes including Router, USB Tethering, 3G/4G USB Modem, Hotspot, Access Point, Range Extender, and Client, TL-WR1502X enables flexible WiFi setup for homes, hotel stays, and travel.
- One-Step Captive Portal Authentication: Easily connect all your devices to the internet without repeated logins. Simply complete the captive portal authentication in one step during the router setup process.
- Portable and Durable Design: TL-WR1502X is a pocket-sized travel router compactly designed for your next trip or adventure. Its small size is designed for travel-friendly storage.

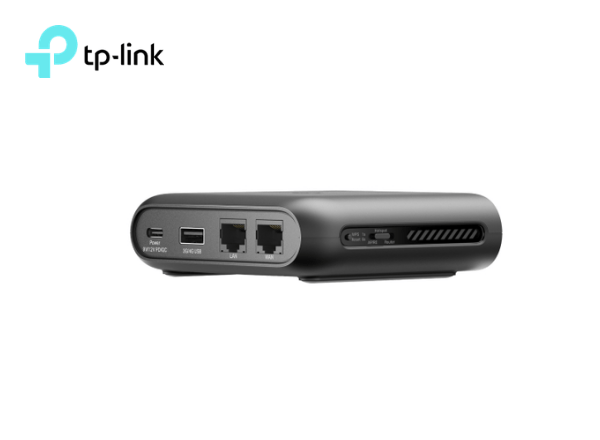

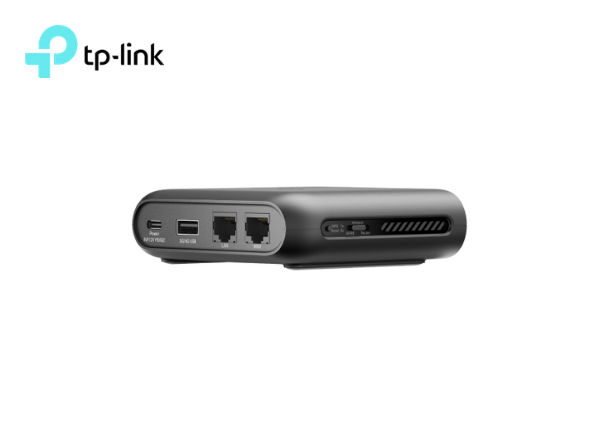

- Full Gigabit Ports for Reliable Connections: 1× Gigabit WAN port + 1× Gigabit LAN port provide reliable, warp-speed connections for high-intensive wired devices such as your smart TV, game console, NAS, and more. △
- Power It with a [9V/12V PD/QC] Power Bank(Without Battery): With a Type-C interface, you can flexibly turn it into a mobile router with a power bank.*
- Easily Access Your Files From Anywhere: By plugging an external USB hard disc into the router, you can easily share files between connected devices.
- Easy Setup Anywhere – Quickly set up and manage your TL-WR1502X with the TP-Link Tether app. Connect your devices just once, and they will automatically reconnect every time.
Specifications
| Standards and Protocols | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
|---|---|
| WiFi Speeds | AX1500 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Capacity | High
Dual-Band Airtime Fairness 4 Streams |
| Working Modes | Router Mode Access Point Mode Range Extender Mode USB Tethering Mode 3G/4G USB Modem Mode Client Mode Hotspot Mode (WISP Mode) |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
|---|---|
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server | • OpenVPN Server • PPTP VPN Server • L2TP VPN Server • Wireguard VPN Server |
| VPN Client | • Open VPN Client • PPTP VPN Client • L2TP VPN Client • Wireguard VPN Client |
| WiFi Encryption | WPA2-PSK WPA3-Personal WPA/WPA2-Enterprise |
| Ethernet Ports | 1× Gigabit WAN Port 1× Gigabit LAN Port |
|---|---|
| USB Support | 1× USB 2.0 Port |
| Buttons | WPS/Reset Button Mode Switch |
| Power | 12V/1.5A，External DC power adapter |
| Protocols | IPv4 IPv6 |
|---|---|
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| DHCP | DHCP Server DHCP Client List Address Reservation |
| DDNS | TP-Link NO-IP DynDNS |
| Management Features | Tether App Webpage |
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DNS DHCP Server App management |
|---|---|
| Certifications | FCC, CE |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~60℃ (-40℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| WiFi Transmission Power | CE: <20dBm(2.4 GHz) <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
|---|---|
| WiFi Reception Sensitivity | 2.4GHz 11b 1M:-96dBm 11n HT20M MCS7:-73dBm 11n HT40M MCS7:-70dBm 5GHz |
| Dimensions (W×D×H) | 4.09 × 3.54 × 1.10 in (104 × 90 × 28 mm) |
|---|---|

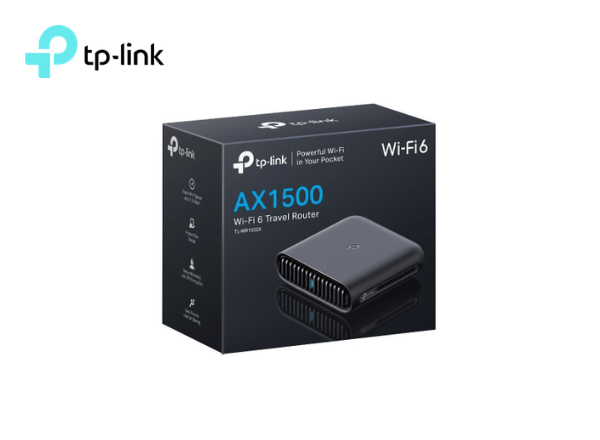

| Package Content | TL-WR1502X Power Adapter RJ45 Ethernet Cable USB Cable Quick Installation Guide |
