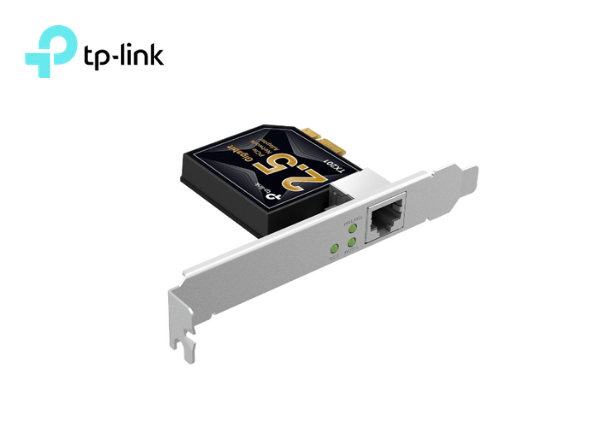

TP-Link TX201 2.5 Gigabit PCIe Network Adapter | T15

$20.00

  • 2.5 Gbps Networking – 2.5 Gigabit Ethernet reaches blazing-fast data rates up to 2.5 billion bits per second—2.5× faster than standard Gigabit Ethernet. For bandwidth-intensive tasks, whether local data transfer or Internet access, the TX201 is up to the task.
  • Versatile Compatibility – With extreme speed and ultra-low latency, 2.5GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.
  • Low-Profile and Full-Height Brackets – In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design.
  • Comprehensive System Support – Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, Linux.

Description

Model: TX201

TP-Link 2.5 Gigabit PCIe Network Adapter

  • 2.5 Gbps Networking – 2.5 Gigabit Ethernet reaches blazing-fast data rates up to 2.5 billion bits per second—2.5× faster than standard Gigabit Ethernet. For bandwidth-intensive tasks, whether local data transfer or Internet access, the TX201 is up to the task.
  • Versatile Compatibility – With extreme speed and ultra-low latency, 2.5GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.
  • Low-Profile and Full-Height Brackets – In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design.
  • Comprehensive System Support – Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, Linux.

Specifications

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x
Interface 1× PCI Express 2.1 x 1, 1× RJ45 Gigabit/Megabit Port
Network Media 2.5GBASE-T/1000BASE-T/100BASE-TX
LED 2.5 Gbps, 1 Gbps, and 100/10 Mbps Link/Act
Data Rates 10Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps for Half-Duplex mode,
20Mbps, 200 Mbps, 2 Gbps, 5 Gbps, for Full-Duplex mode
Dimensions 120.8 × 98.2 × 21.5 mm (4.8 × 3.9 × 0.8 in)
Flow Control 802.3x
OTHERS
Certification FCC, CE, RoHS
Package Contents 2.5 Gigabit PCIe Network Adapter (TX201)
Standard/Low-Profile Brackets
Quick Installation Guide
Resource CD
System Requirements Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, Linux
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
