Description
Model: VIGI C430

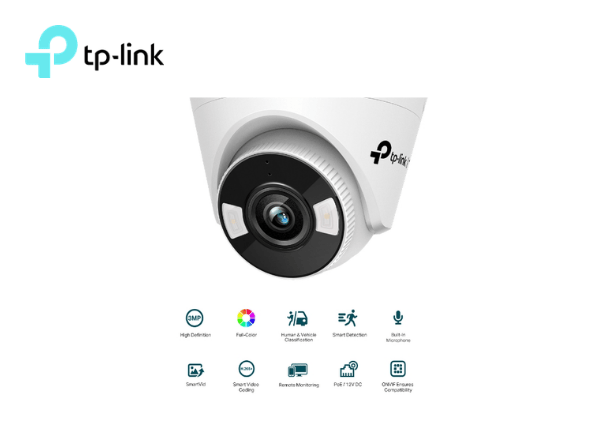

TP-Link VIGI 3MP Full-Color Turret Network Camera
Overview
- 3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects.
- Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
- PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
- Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.
Specifications
| CAMERA | |
|---|---|
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Lens | 2.8 mm/ 4 mm |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| IR Working Distance | 30m |
| Shutter Speed | 1/3 to 1/10000 s |
| Aperture | 2.8 mm: F1.6 4 mm: F1.6 |
| Lens Mount | M12 |
| Viewing Angle | 2.8mm: 107.5°/57.2°/128.7°(H/V/D) 4mm: 89.1°/45.1°/106.9°(H/V/D) |
| Slow Shutter | Yes |
| Minimum Illumination | Color: 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| NETWORK | |
|---|---|
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| GENERAL | |
|---|---|
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Contents | VIGI Network Camera Quick Start Guide Mounting Accessories |
| Dimensions( H X W X D ) | 123 × 123 × 83 mm |
| Material | Plastic |
| General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Net Weight | 0.21 Kg |
| Gross Weight | 0.36 Kg |
| Power Consumption | 12V DC: Max 4.2W PoE: Class 0 |
| Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0) |
| Protection | N/A |
| Product Dimensions (L x W x H) | 123× 83× 123 mm |
| Certifications | CE/BSMI/VCCI/ONVIF |
| INTERFACES | |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Alarm | N/A |
| Reset Button | N/A |
| Power | DC Power Port |
| Button | – |
| Video Output | – |
| On-board Storage | N/A |
| Built-in Microphone | Yes |
| Built-in Speaker | N/A |
| Audio | N/A |
| ALARM AND EVENT MANAGEMENT | |
|---|---|
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
| Alarm Linkage | White Light Flashing, Message Push |
| Linkage Method | N/A |
| Output Notification | Message Push |
| VIDEO/IMAGE | |
|---|---|
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| Frame Rate & Resolutions | Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2304×1296, 2048×1280, 1920×1080, 1280×720 Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704×576, 640×480, 352×288, 320×240 |
| Max. Resolution | 3MP (2304 × 1296) |
| Video Streaming | Main Stream Sub-Stream |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Video Bit Rate | 64 Kbps to 4 Mbps |
| Day/Night Switch | Day/Night/Auto/Schedule |
| SMART FEATURE-SET | |
|---|---|
| Smart Event | Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Camera Tampering Detection, Exception (Illegal Login) |
| Linkage Method | Trigger Notification: ONVIF, HTTPS |
| Region of Interest | 1 Region |
| AUDIO | |
|---|---|
| Audio Communication | N/A |
| Audio Input | Yes |
| Audio Output | N/A |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| ILLUMINATOR | |
|---|---|
| IR LED | Quantity: 2 Range: 30m Wavelength: 850nm |
| White LED | Quantity: 2 Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| LENS | |
|---|---|
| Type | Fixed Focal Lens |
| Focal Length | 2.8/4 mm |
| Aperture | 2.8 mm: F1.6 4 mm: F1.6 |
| FOV | 2.8mm: Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7°4mm: Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9° |
| Lens Mount | M12 |
| DORI Distance | 2.8 mm Detect: 52 m (170 ft) Observe: 22 m (71 ft) Recognize: 10 m (34 ft) Identify: 5 m (17 ft)4 mm Detect: 70 m (230 ft) Observe: 29 m (96 ft) Recognize: 14 m (46 ft) Identify: 7 m (23 ft) |
| ANGLE ADJUSTMENT (MANUAL) | |
|---|---|
| Range | Pan: 0° to 360° Tilt: 0° to 85° Rotate: 0° to 360° |
| VIDEO | |
|---|---|
| Max. Resolution | 2304 × 1296 |
| Main Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 2304×1296, 2048×1280, 1920×1080, 1280×720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 704×576, 640×480, 352×288, 320×240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| IMAGE | |
|---|---|
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | WDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
