Description

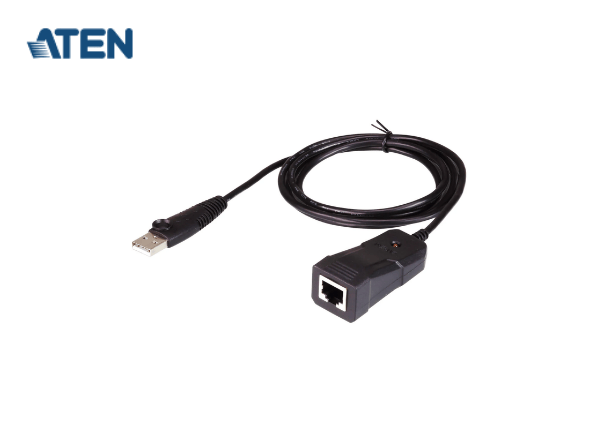

Model: UC232B
ATENย USB to RJ-45 (RS-232) Console Adapter
- Converts a USB port to RJ-45 Console port (RS-232)

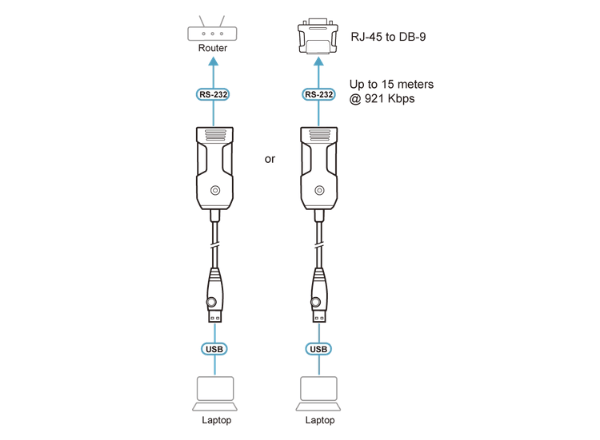

- Supports straight RJ45 cable without the need to use Rolled RJ45 Cable for connecting Networking Router, modem or network switch for configuration
- Proven performance in anti-electromagnetic interference (anti-EMI) capability for stable transmission performance
- A trustworthy connectivity solution recommended and adopted by leading enterprises worldwide
Overview
The ATEN UC232B is a one port USB-to-Serial console adapter. This high quality industrial adapter cable is designed to instantly add single RS-232 console port connectivity for networking appliances via a USB port. The adapter is powered via the USB connection.
The UC232B is compatible with the USB 2.0 standard and works conveniently with desktop and notebook PCs. It also can be used with large integrated computer-based systems or other specialized applications, such as point-of-sale applications, networking equipment, industrial automation systems, and native serial transfer instruments to offer a convenient connectivity solution. The UC232B converter provides a plug & play solution. Windows, Mac and Linux drivers are included.
Features
- Converts a USB port to RJ-45 Console port (RS-232)
- Supports straight RJ45 cable, no need to use Rolled RJ45 Cable for connecting Networking Router, modem or network switch for configuration
- Fast COM Port Transmission โ up to 921.6 Kbps data transfer rate
- COM retention saves the assigned port settings for the device
- Proven performance in anti-electromagnetic interference (anti-EMI) capability for stable transmission performance
- OS Compatibility: Windows, Mac, and Linux
- Plug-and-Play โ Small and lightweight enclosure makes it a perfect travel companion
- No external power supply needed
- A trustworthy connectivity solution recommended and adopted by leading enterprises worldwide
Specifications
| Connectors | |
| USB Port | 1 x USB Type A Male (White) |
| Serial | 1 x RJ-45 Female (Silver) |
| Data Rate | Up to 921.6Kbps |
| Cable Length | 1.2m |
| LEDs | Power Status |
| Power Mode | Bus Powered |
| USB Specification | USB compliant |
| Environmental | |
| Operating Temperature | 0โ40หC |
| Storage Temperature | -20โ60หC |
| Humidity | 0โ80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.06 kg ( 0.13 lb ) |
| Dimensions (L x W x H) | 2.56 x 5.84 x 2.23 cm (1.01 x 2.3 x 0.88 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
