Description
Model: UC232A

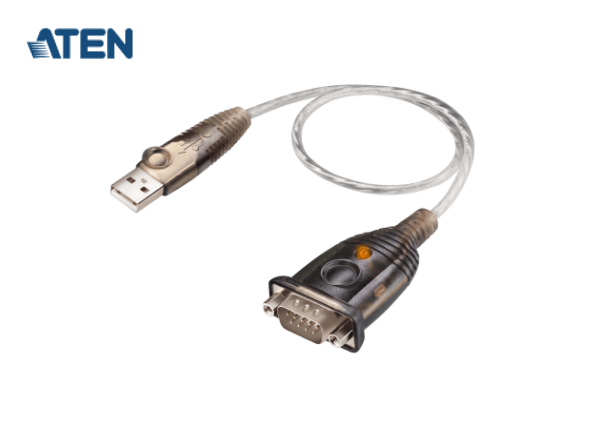

ATENΒ USB to RS-232 Adapter (35cm)
- Supports RS-232 serial interface
- Proven performance in anti-electromagnetic interference (anti-EMI) capability for stable transmission performance
- Full compliance with USB specifications
- A trustworthy connectivity solution recommended and adopted by leading enterprises worldwide
Overview

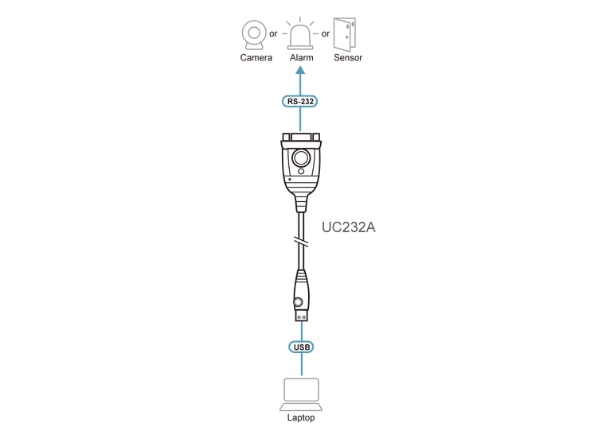

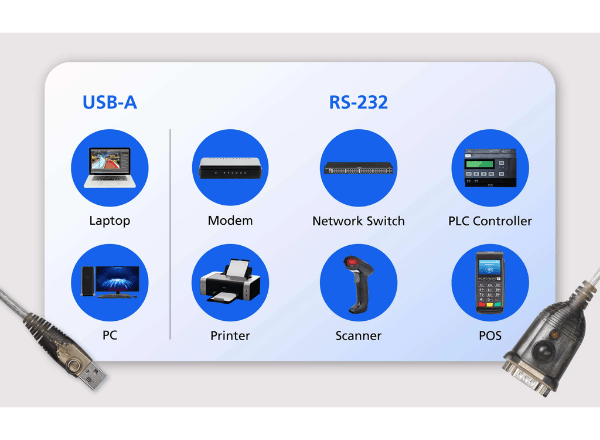

The UC232A USB-to-RS232 serial port converter is the ideal accessory for laptop and desktop computers that do not have a COM or DB9 serial port. Supporting both PC and Mac systems with baud rates up to 921.6 Kbps for rapid performance, it offers a convenient connectivity solution for industrial automation systems, scientific instruments, point of sale systems, and other specialized industrial and consumer applications.
Features
- Support the RS232 Serial interface.
- Full compliance with the USB Specification.
- Up to 921.6 Kbps data transfer rate.
- Works with cellular phones, PDAs, digital cameras, modems or ISDN terminal adapter.

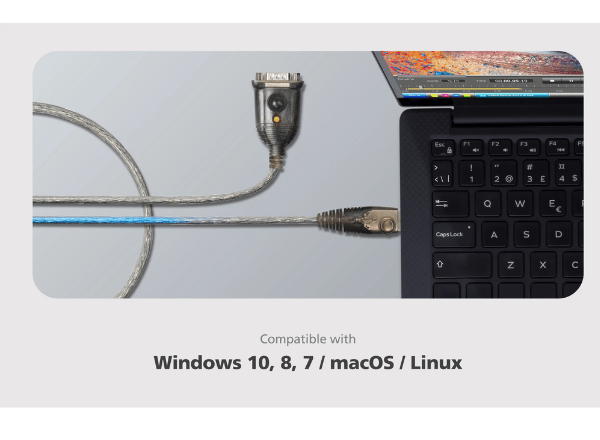

- OS Compatibility: Windows, Mac, Linux.
Specifications
| Connectors | |
| USB Port | 1 x USB Type A Male (White) |
| Serial | 1 x DB-9 Male (Silver) |
| Data Rate | Up to 921.6 KBps |
| Cable Length | 35cm |
| LEDs | Power (Orange) |
| Power Mode | Bus Powered |
| USB Specification | USB compliant |
| Environmental | |
| Operating Temperature | 0β40ΛC |
| Storage Temperature | -20β60ΛC |
| Humidity | 0β80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.06 kg ( 0.14 lb ) |
| Dimensions (L x W x H) | 6.59 x 3.40 x 1.60 cm (2.59 x 1.34 x 0.63 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
