Description
Model: TL-WN722N

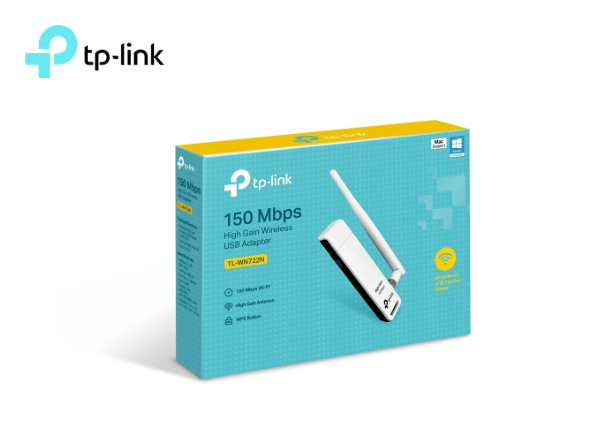

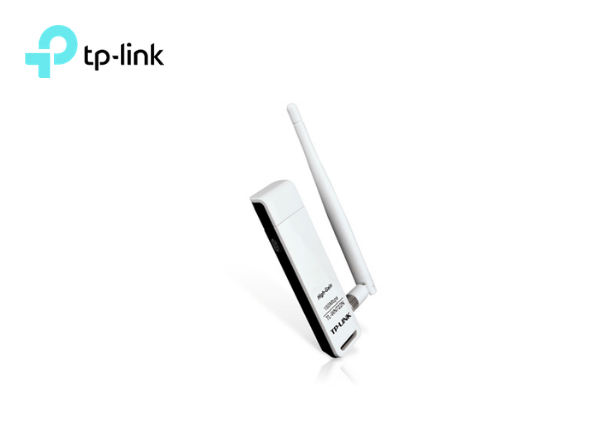

TP-Link 150Mbps High Gain Wireless USB Adapter
Overview
- Exceptional wireless speed up to 150Mbps brings best experience for video streaming or internet calls*
- Easy wireless security encryption at a push of the WPS button
- 4dBi detachable antenna, remarkably strengthen signal power of the USB adapter
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | USB 2.0 |
| Button | WPS Button |
| Dimensions ( W x D x H ) | 3.7 x 1.0 x 0.4 in. (93.5 x 26 x 11mm) |
| Antenna Type | Detachable Omni Directional (RP-SMA) |
| Antenna Gain | 4dBi |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.400-2.4835GHz |
| Signal Rate | 11n: Up to 150Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
| Transmit Power | <20dBm |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| Advanced Functions | WMM, PSP X-LINK(For Windows XP), Roaming |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | Wireless Adapter One USB extension cable Resource CD Quick Installation Guide |
| System Requirements | Windows 11/10/8.1/8/7/XP (32/64bits), Mac OS 10.9~10.13, Linux 2.6.18~4.4.3 |
| Environment | Operating Temperature: 0β~40β (32β~104β) Storage Temperature: -40β~70β (-40β~158β) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
