ATEN CL5708M 17″ Rackmount LCD console w/ 8 Port PS2 and USB Combo KVM | A1150

Description

Model: CL5708M

ATEN 17″ Rackmount LCD console w/ 8 Port PS2 and USB Combo KVM

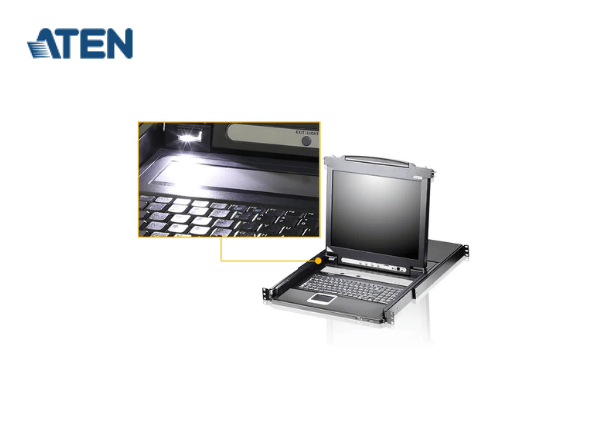

• Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated KVM console with 17 LED-backlit LCD monitor in a Slideaway™ housing
• Available with or without Fingerprint Identification Reader
• Space saving technology – up to two consoles (one bus) control up to 8 computers

Overview

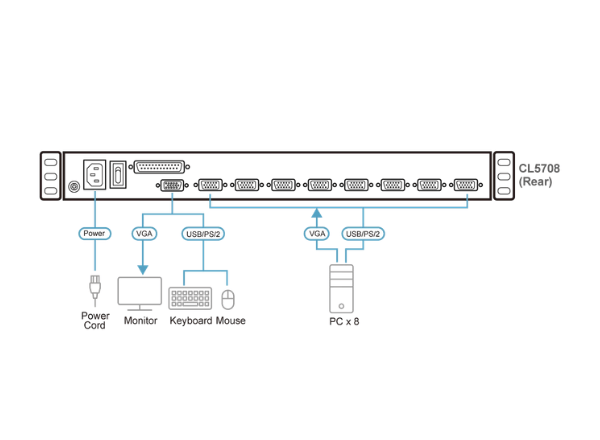

The CL5708M Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708M can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708M, so that up to 256 computers can all be controlled from a single KVM console.

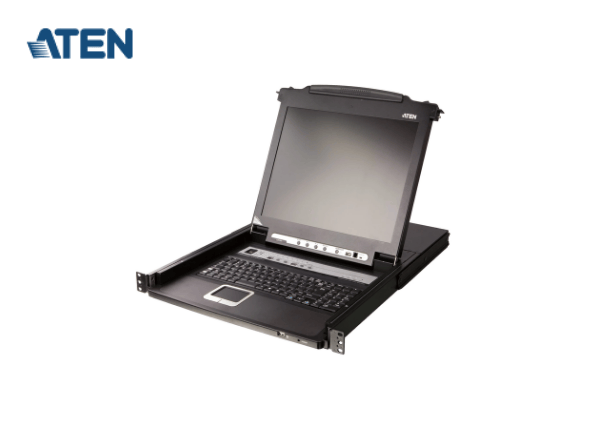

The CL5708M offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17 LCD monitor, and touchpad in a 1U rack-mountable sliding housing.

Features

• Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated KVM console with 17 LED-backlit LCD monitor in a Slideaway™ housing
• Available with or without Fingerprint Identification Reader**
• Space saving technology – up to two consoles (one bus) control up to 8 computers
• Daisy-chain up to 31 additional units – control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
• Dual Interface – supports computers and console with PS/2 or USB keyboards and mice
• LCD module USB port allows each computer to access USB peripherals*
• LCD module rotates up to 115 degrees for a more comfortable viewing angle
• Multiplatform support – Windows, Linux, Mac, and Sun
• Supports multimedia USB keyboards for PC, Mac and Sun
• Auto PS/2 and USB interface detection
• Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
• Supports external USB mouse
• Superior video quality – supports resolutions up to 1280 x 1024 @ 75 Hz
• No software required – convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
• Auto-senses station’s position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station’s position
• Port names automatically reconfigured when station sequence is changed
• Two level password security – only authorized users can view and control computers
• Supports one administrator and four user accounts with separate profiles
• Auto Scan mode enables continuous monitoring of user-selected computers
• Broadcast support – commands from the keyboard can be broadcast to all available computers on the installation
• Hot pluggable – add or remove computers without having to power down the switch
• Beeper on/off via hotkey and OSD
• Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
• Optional rack mount kits available including easy installation options
• Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese* The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.

Specifications
