$ 48


  • Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
  • PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
18-11-2022 5:02 PM

Model : EAP225

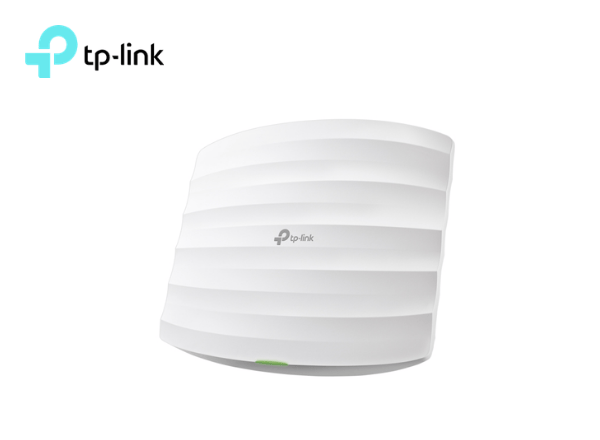

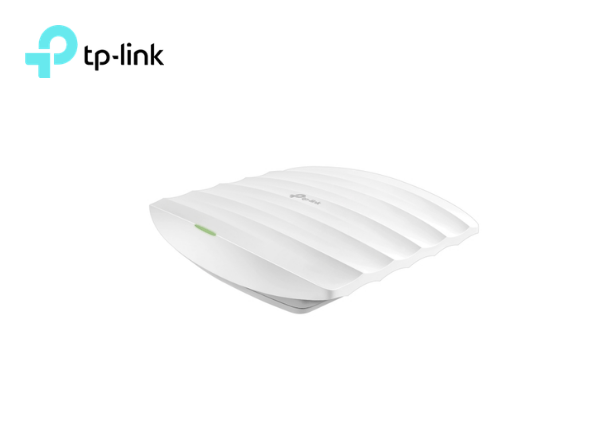

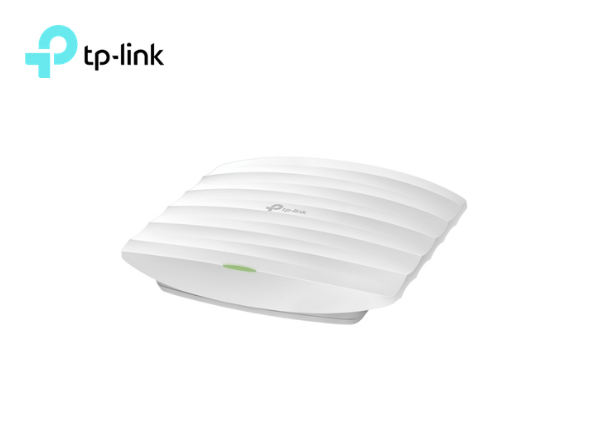

TP-Link AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

  • Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
  • PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
  • Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.

Specifications

HARDWARE FEATURES

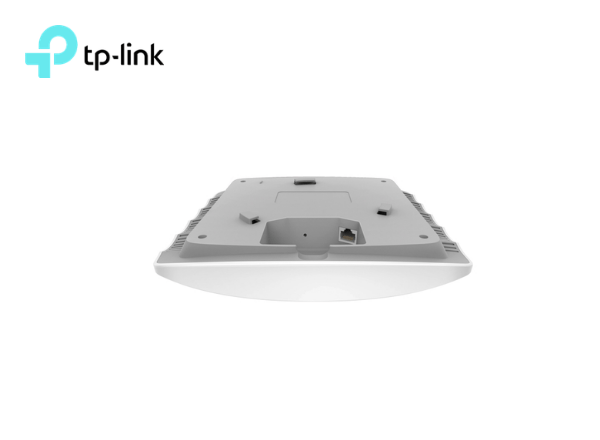

Interface Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE)
Physical Security Lock Yes
Button Reset
Power Supply • 802.3af/at PoE • 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption • EU: 10.5 W • US: 12.6 W
Dimensions ( W x D x H ) 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Antenna Type 3 Internal Omni • 2.4 GHz: 4 dBi • 5 GHz: 5 dBi
Mounting Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz:Up to 867 Mbps • 2.4 GHz:Up to 450 Mbps
Wireless Functions • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming* • Omada Mesh* • Band Steering • Load Balance • MU-MIMO • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security • Captive Portal Authentication* • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support
Transmission Power • CE: ≤20 dBm(2.4 GHz, EIRP) ≤23 dBm(5 GHz, EIRP) • FCC: ≤24 dBm(2.4 GHz) ≤22 dBm(5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)
OTHERS
Certification CE, FCC, RoHS
Package Contents • AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225 • Passive PoE Adapter • Power Cord • Mounting Kits • Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
